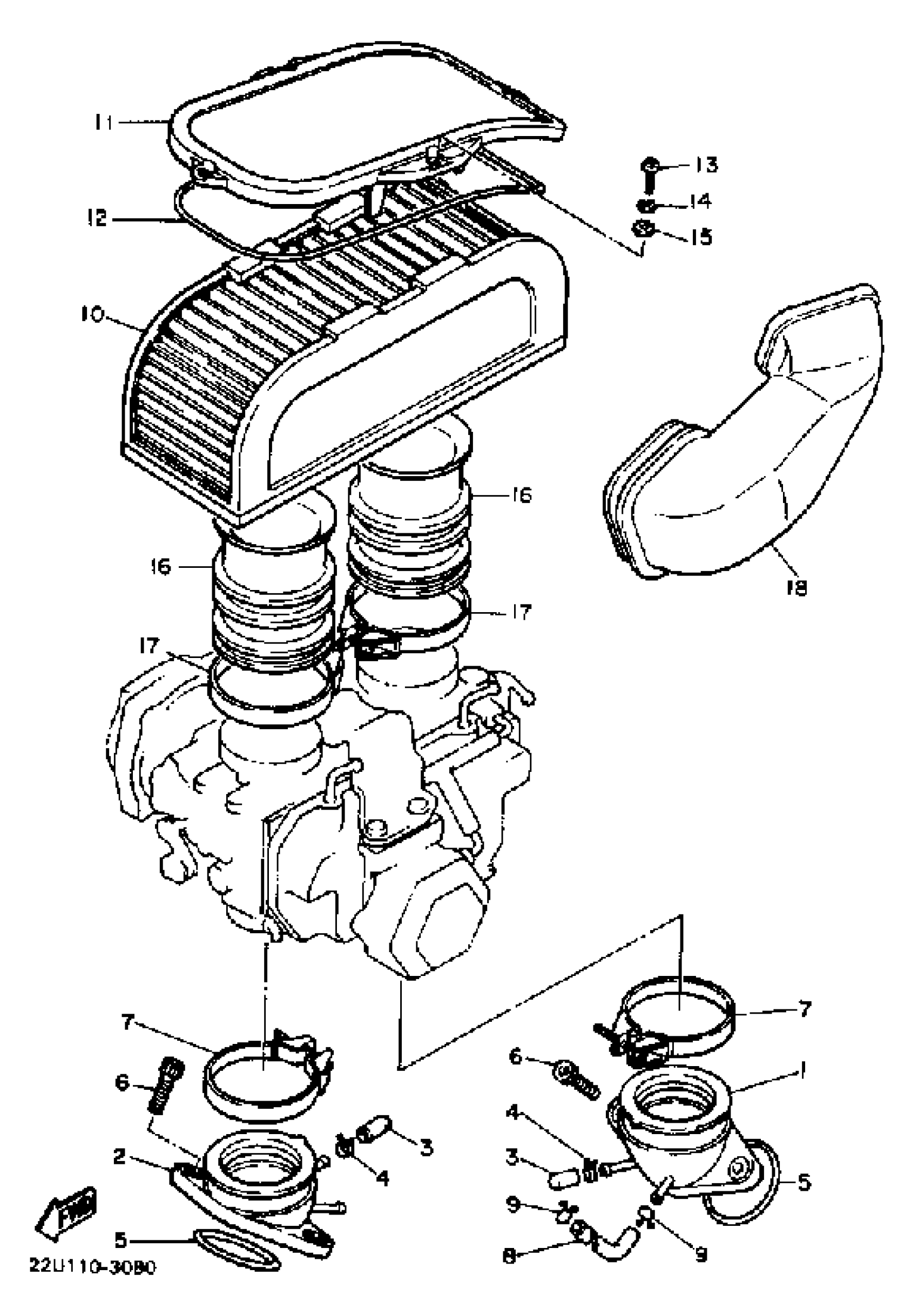

Yamaha XV500K (XV500K) 1983 INTAKE Diagram
#
Description
Price
1
JOINT, CARBURETOR 1
22U-13586-02-00
Unavailable
2
JOINT, CARBURETOR 2
22U-13596-01-00
Unavailable
6
BOLT,SOCKET
91317-06020-00
Unavailable
7
CLAMP, HOSE (90460-52210-00)
90460-52264-00
Unavailable
8
HOSE
22U-13926-00-00
Unavailable
10
ELEMENT ASSY, AIR CLEANER
22U-14450-00-00
Unavailable
11
CAP, CLEANER CASE 1
22U-14412-00-00
Unavailable
13
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
16
FUNNEL, AIR
22U-14469-01-00
Unavailable
17
HOSE CLAMP ASSY
90450-58002-00
Unavailable
18
DUCT
(22U-14437-00-00)
Unavailable
