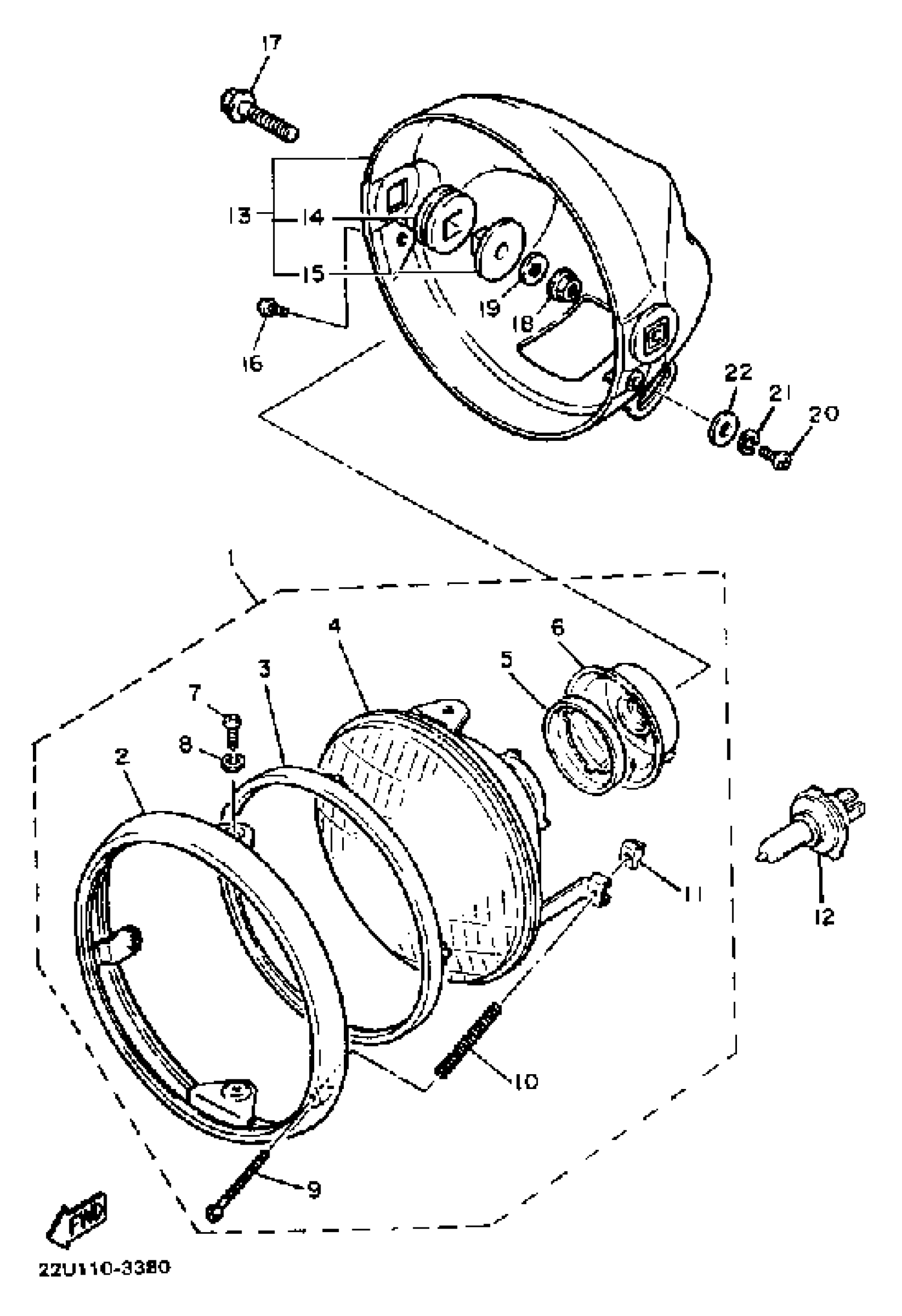

Yamaha XV500K (XV500K) 1983 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

4X7-84303-A0-00

Unavailable

2

. RIM, HEADLIGHT

4X7-84315-00-00

Unavailable

3

. RING, RETAINING

4X7-84395-00-00

Unavailable

4

. LENS, HEADLIGHT

4X7-84321-A0-00

Unavailable

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW 214841316100

90157-04001-00

$8.49

10

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

11

NUT, ADJUST

198-84334-60-00

$7.99

12

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

13

BODY ASSEMBLY

22U-84330-00-00

Unavailable

14

GROMMET, WRHRNES

(5G0-84153-20-00)

Unavailable

15

COLLAR 2

584-84338-60-00

$21.99

16

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

17

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

18

NUT, FLANGE

95704-08500-00

Unavailable

19

WASHER

90209-08008-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE

90201-06020-00

Unavailable
