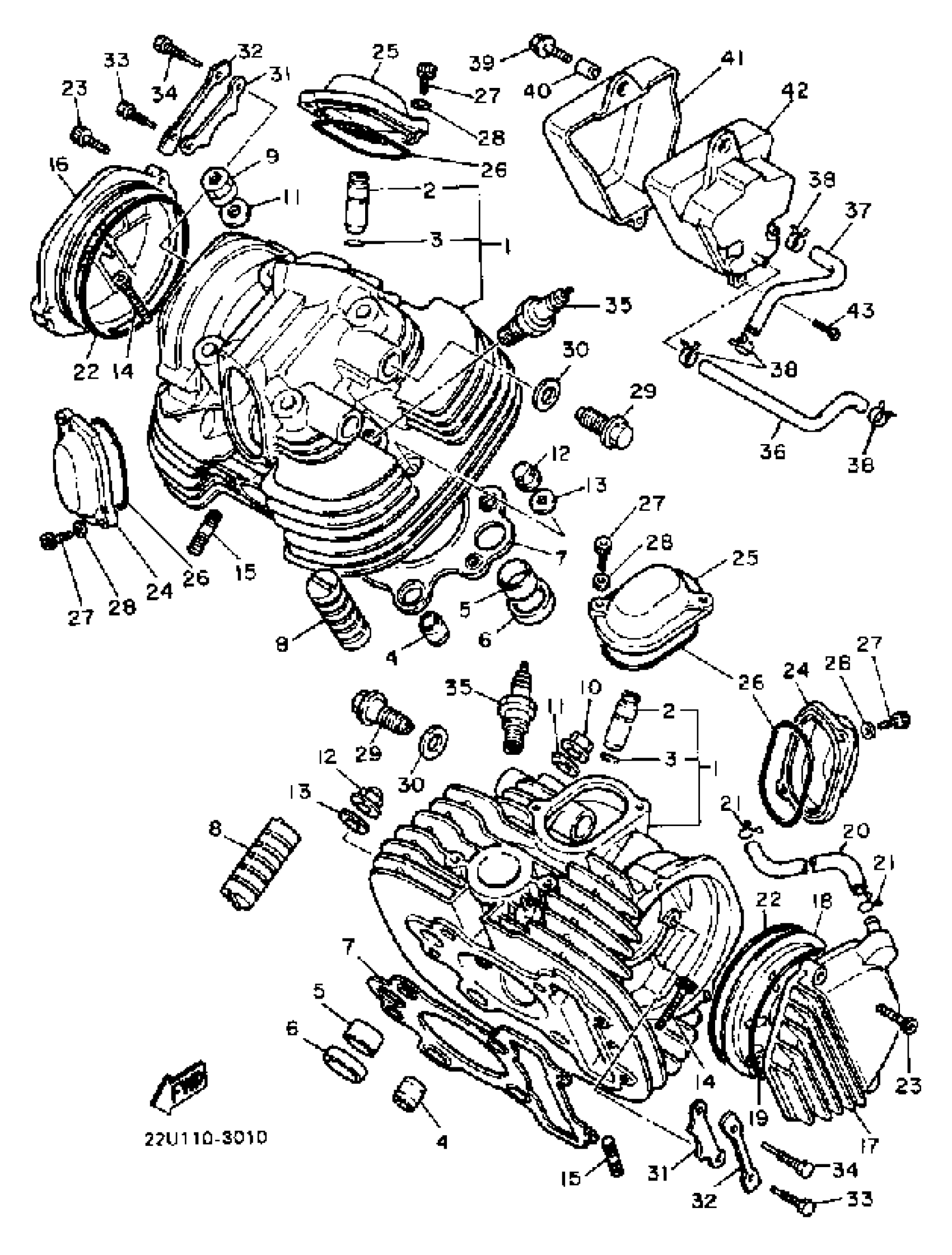

Yamaha XV500K (XV500K) 1983 HEAD CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(22U-11110-00-00)

Unavailable

1

CYLINDER HEAD ASSEMBLY 002

(22U-11110-01-00)

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

PIN, DOWEL(3BM)

99530-17016-00

Unavailable

5

COLLAR

90387-226G7-00

Unavailable

6

GASKET (22U)

90430-24184-00

Unavailable

7

GASKET, CYLINDER HEAD 1

22U-11181-00-00

Unavailable

8

ABSORBER

583-11127-00-00

$7.99

9

NUT (22U)

90179-10395-00

$9.49

10

NUT (2Y5)

90179-10279-00

$8.49

11

WASHER PLATE 256111740000

90201-10131-00

$9.49

12

NUT, CROWN (4G0)

90176-08026-00

$14.99

13

WASHER, PLATE (33N)

90201-094G1-00

$9.49

14

BOLT, SOCKET

91314-08035-00

$2.22

15

BOLT,STUD

90116-08423-00

Unavailable

15

BOLT, STUD 3

95617-08625-00

Unavailable

16

CVR, CYLINDER HD SIDE 1

(22U-11185-00-00)

Unavailable

17

COVER, CYLINDER.HEAD 4

(22U-1111H-00-00)

Unavailable

18

PLATE, BREATHER

22U-11165-00-00

Unavailable

19

O-RING (22U)

93210-89568-00

Unavailable

20

PIPE, BREATHER 1

(22U-11166-00-00)

Unavailable

21

CLIP (371)

90467-14015-00

Unavailable

22

O-RING (22U)

93211-00612-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

24

COVER, CYLINDER HEAD SIDE 2

22U-11186-01-00

Unavailable

25

COVER, CYLINDER HEAD SIDE 3

22U-11187-01-00

Unavailable

26

O-RING (4X7)

93210-62446-00

Unavailable

27

BOLT, HEXAGON

97017-06020-00

Unavailable

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

BOLT, UNION

90401-16065-00

Unavailable

30

GASKET (4X7)

90430-17168-00

Unavailable

31

PLATE

(22U-1111F-00-00)

Unavailable

31

PLATE

22U-1111F-01-00

Unavailable

32

WASHER, LOCK

90215-06209-00

Unavailable

32

WASHER, LOCK

90215-08229-00

Unavailable

33

BOLT

(90109-06694-00)

Unavailable

33

BOLT (26M)

90109-08782-00

Unavailable

34

BOLT

90109-06693-00

Unavailable

34

BOLT (26M)

90109-08781-00

Unavailable

35

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

36

PIPE 1

22U-1111J-00-00

Unavailable

37

PIPE 2

22U-1112J-00-00

Unavailable

38

CLIP (7K7)

90467-11044-00

Unavailable

39

BOLT, FLANGE

95817-06014-00

Unavailable

40

COLLAR (420)

90387-06241-00

Unavailable

41

CHAMBER, AIR

22U-13581-00-00

Unavailable

42

CHAMBER, AIR 2

22U-13591-00-00

Unavailable

43

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable
