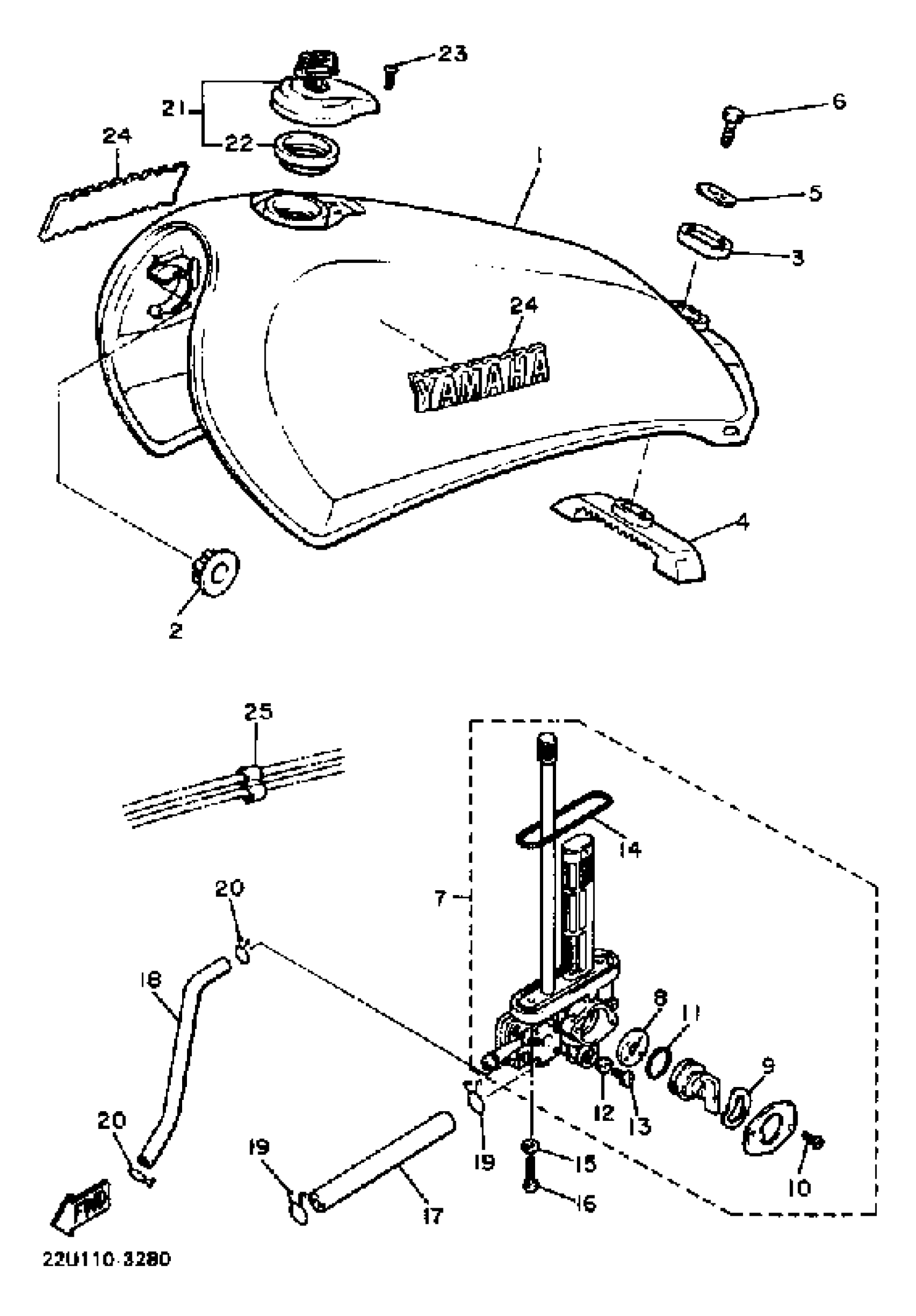

Yamaha XV500K (XV500K) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

22U-24110-00-02

Unavailable

1

FUEL TANK

22U-24110-00-03

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

DAMPER, LOCATING 2

22U-24182-00-00

Unavailable

4

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

5

WASHER, SPECIAL

12R-24186-00-00

$9.99

6

BOLT, HEXAGON

97013-08030-00

$2.49

7

FUEL COCK ASSY

22U-24500-01-00

$293.99

8

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

9

WASHER, WAVE

10L-24518-00-00

$6.99

10

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

11

O-RING, FUEL COCK

3H3-24534-00-00

$14.49

12

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

13

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

14

. GASKET

22U-24512-00-00

Unavailable

15

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

16

SCREW 256241430000

90149-06011-00

Unavailable

17

HOSE (L120)

90445-113E8-00

Unavailable

18

HOSE (L770)

90445-090G9-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

CLIP 101235600

90467-08003-00

Unavailable

21

CAP ASSY

4X7-24602-10-00

Unavailable

22

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

23

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

24

EMBLEM 1

3X0-24161-01-00

Unavailable

25

CLAMP(6M7)

90464-09M31-00

Unavailable
