Description

Price

1

WHEEL, CAST FRONT

22U-25168-09-98

Unavailable

2

SPACER(22V)

90560-15296-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

OIL SEAL (7H5)

93102-22216-00

$11.49

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL (45X56X6)

93105-45017-00

$14.99

9

300H19 4PR L303 TL

94130-19447-00

Unavailable

10

VALVE, RIM (31A)

93900-00031-00

$16.99

10

VALVE, RIM (31A)

93900-00031-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

12

GEAR UNIT ASSEMBLY

4H7-25190-00-00

Unavailable

13

AXLE, WHEEL

4H7-25181-01-00

Unavailable

14

WASHER, PLAIN

92990-14200-00

Unavailable

15

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

16

PIN, COTTER

91490-30030-00

Unavailable

17

COLLAR (1Y8)

90387-15734-00

Unavailable

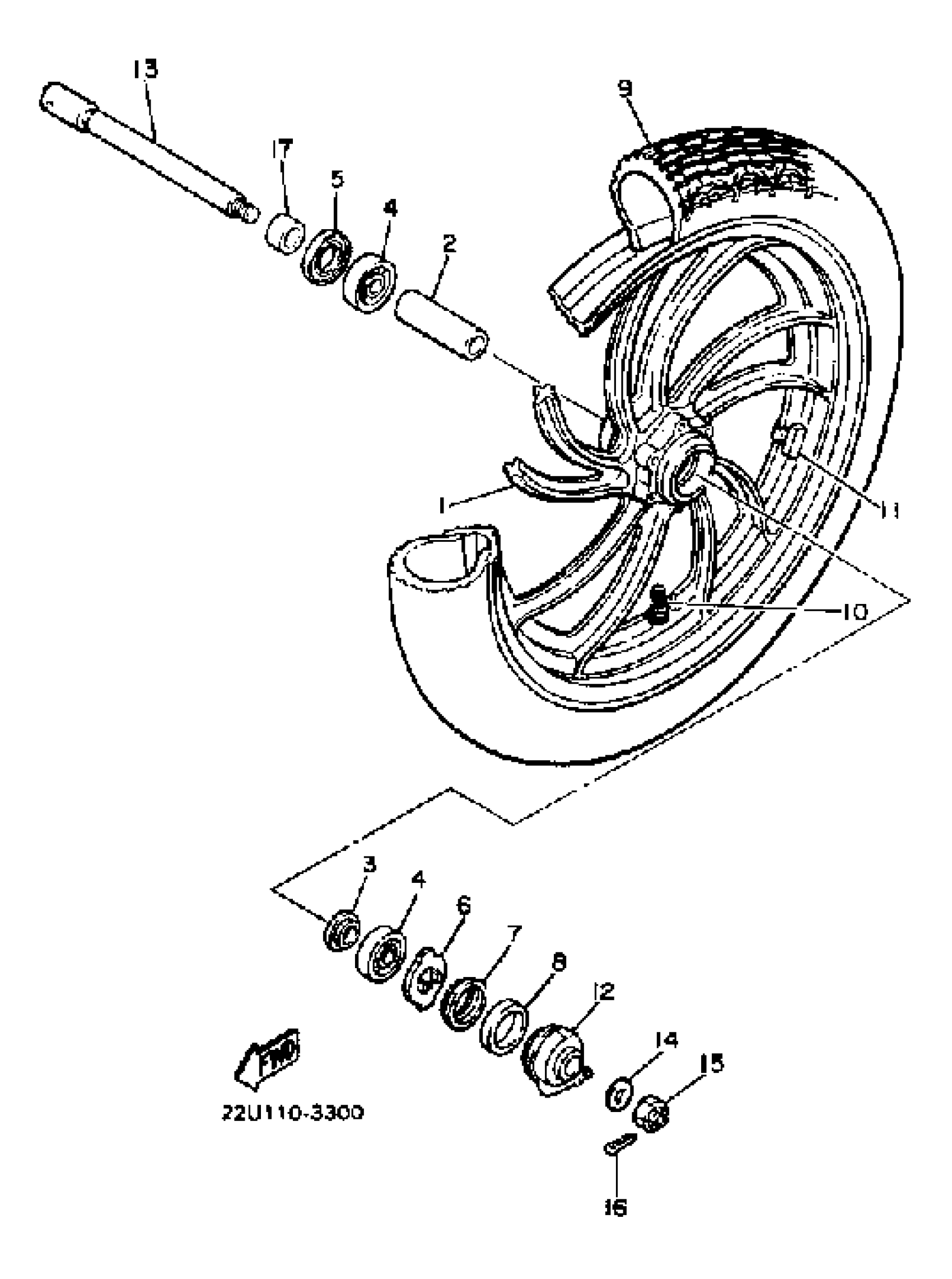

Yamaha XV500K (XV500K) 1983 FRONT WHEEL Diagram

WHEEL, CAST FRONT

SPACER(22V)

FLANGE, SPACER

BEARING(3DL)

OIL SEAL (7H5)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL (45X56X6)

300H19 4PR L303 TL

VALVE, RIM (31A)

VALVE, RIM (31A)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

GEAR UNIT ASSEMBLY

AXLE, WHEEL

WASHER, PLAIN

NUT, CASTLE(2UJ)

PIN, COTTER

COLLAR (1Y8)
