FRONT FORK

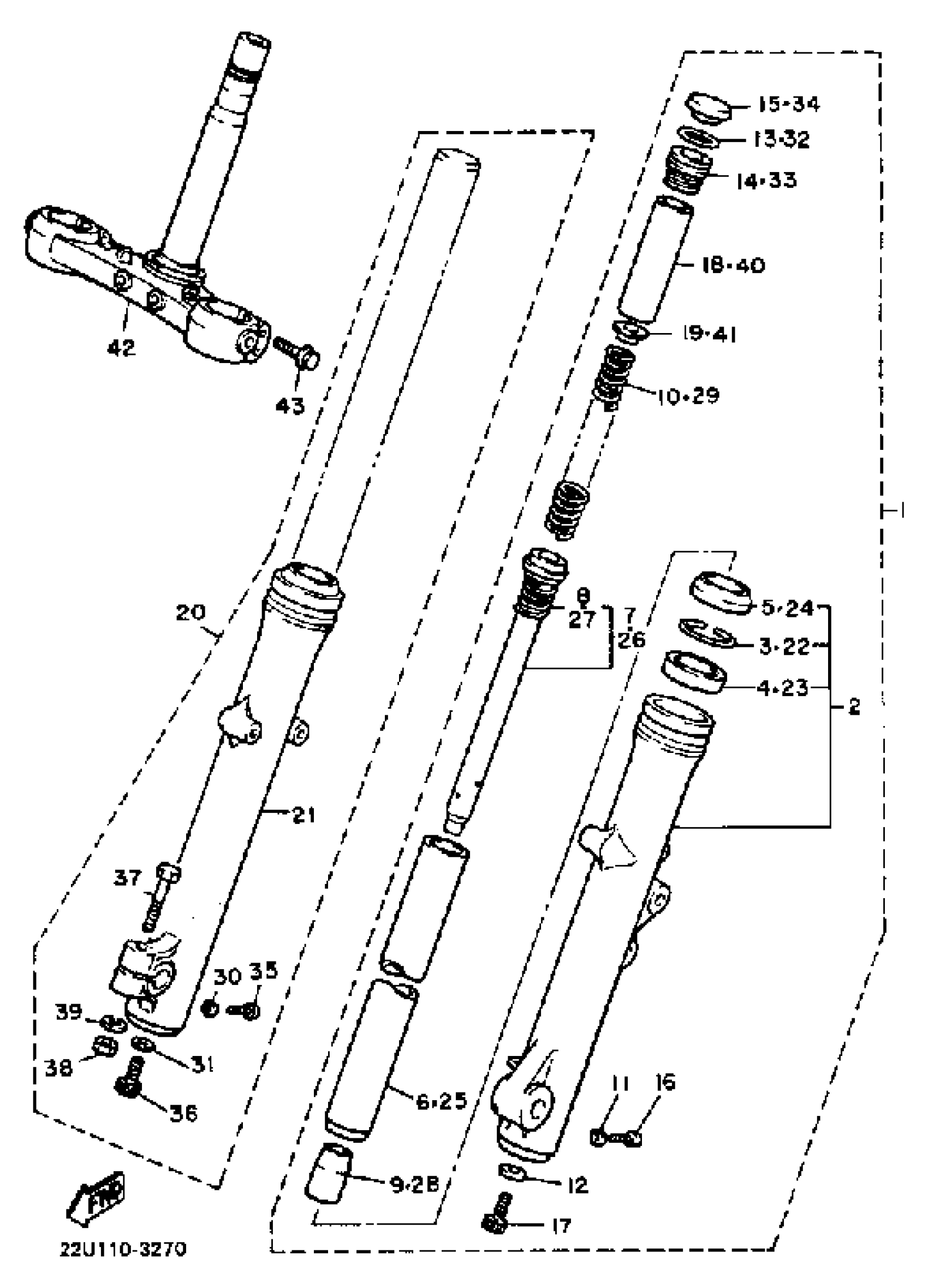

Yamaha XV500K (XV500K) 1983 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(22U-23102-01-00)
Unavailable
2
. TUBE, OUTER 1
22U-23126-01-38
Unavailable
6
. INNER TUBE 1
22U-23110-01-00
Unavailable
7
CYLINDER, FRTFRK
(22U-23170-00-00)
Unavailable
8
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
9
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
10
SPRING, FRONT FORK
(22U-23141-00-00)
Unavailable
14
. BOLT, CAP
11H-23111-00-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
18
SPACER
22U-23118-01-00
Unavailable
19
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
20
FRONT FORK ASSEMBLY R
22U-23103-01-00
Unavailable
21
. TUBE, OUTER 2
22U-23136-01-38
Unavailable
25
. INNER TUBE 1
22U-23110-01-00
Unavailable
26
CYLINDER, FRTFRK
(22U-23170-00-00)
Unavailable
27
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
28
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
29
SPRING, FRONT FORK
(22U-23141-00-00)
Unavailable
33
. BOLT, CAP
11H-23111-00-00
Unavailable
35
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
37
BOLT
97013-08045-00
Unavailable
38
NUT(6L2)
95333-08600-00
Unavailable
39
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
40
SPACER
22U-23118-01-00
Unavailable
41
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
42
UNDER BRACKET
26R-23340-30-33
Unavailable
43
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
