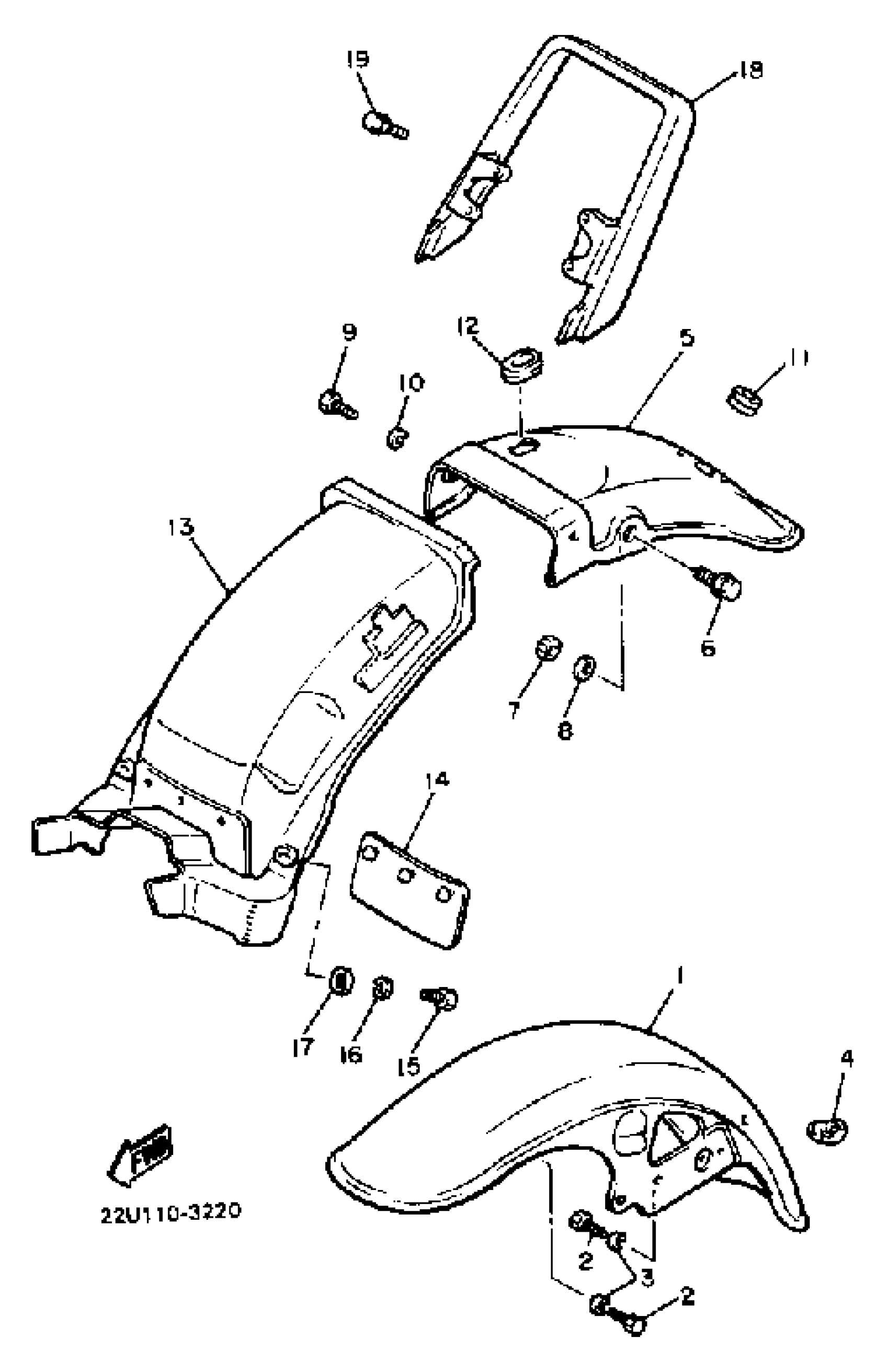

Yamaha XV500K (XV500K) 1983 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

22U-21510-01-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.43

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

5K5-21610-00-93

Unavailable

6

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

7

NUT(55X)

90179-08491-00

$2.01

8

WASHER, PLATE (4W3)

90201-086A3-00

$5.86

9

BOLT, HEXAGON

97017-06012-00

$2.44

10

WASHER, SPRING

92907-06100-00

$0.98

11

GROMMET(2UJ)

90480-16501-00

$5.29

12

GROMMET (438)

90480-15061-00

$6.22

13

GUARD, MUD

(22U-21629-00-00)

Unavailable

14

FLAP

1M1-21621-00-00

$12.80

15

BOLT (661)

97013-06012-00

$4.40

16

WASHER, SPRING

92995-06100-00

$2.95

17

WASHER, PLATE

90201-06M08-00

$2.16

18

STAY, REAR

22U-21645-01-00

Unavailable

19

BOLT, FLANGE(8AB)

95817-08020-00

$6.52
