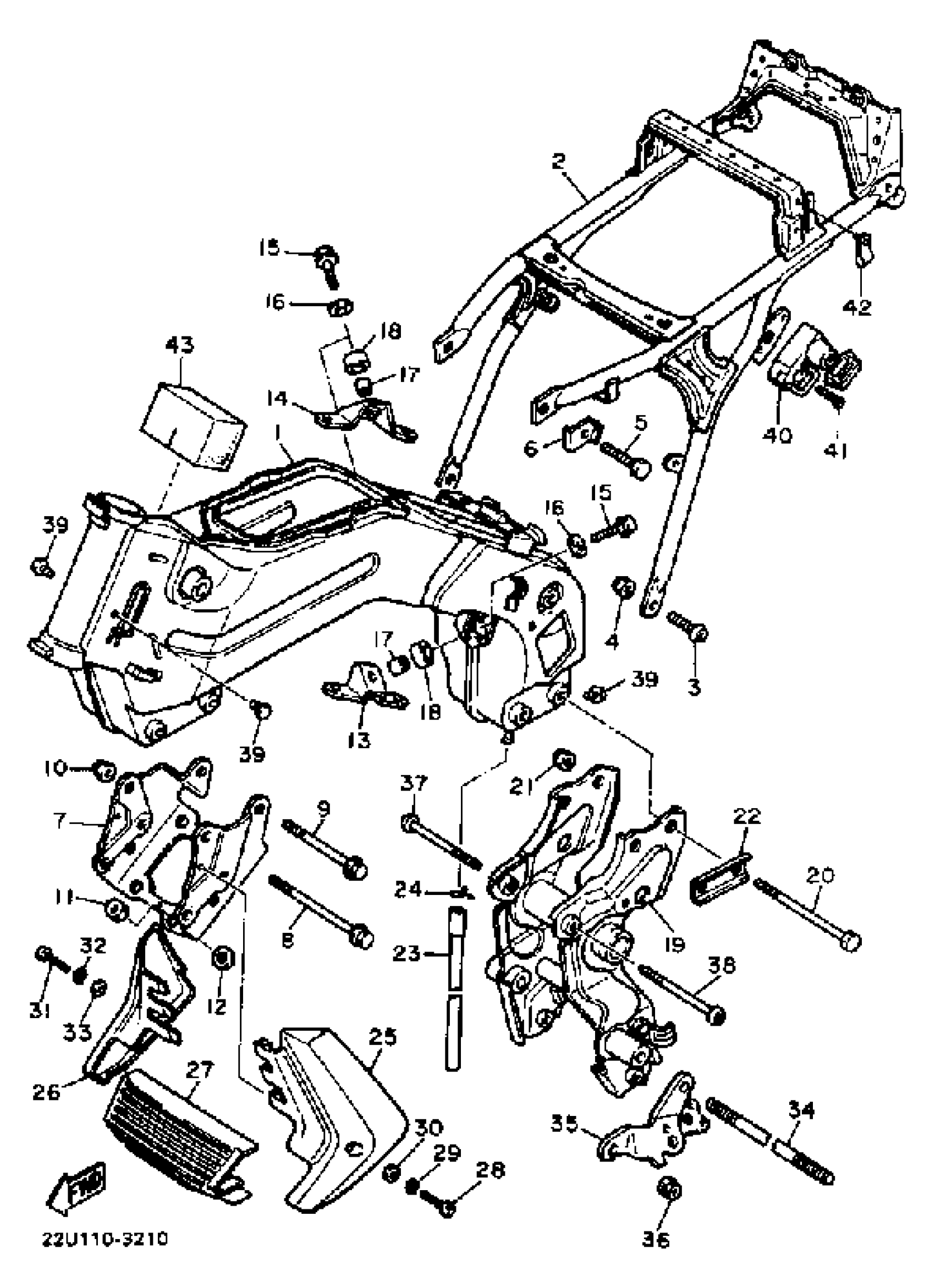

Yamaha XV500K (XV500K) 1983 FRAME Diagram
#
1
FRAME
(22U-21110-00-33)
Unavailable
2
FRAME, REAR
26M-21190-03-33
Unavailable
6
WASHER, LOCK
90215-10192-00
Unavailable
7
STAY, ENGINE 4
(22U-21317-00-00)
Unavailable
9
BOLT, ENG MNTNG 3
4H3-21483-00-00
Unavailable
10
NUT
90179-10321-00
Unavailable
13
STAY, ENGINE 2
22U-21315-00-00
Unavailable
14
STAY, ENGINE 3
22U-21316-00-00
Unavailable
15
BOLT (4W3)
90105-10186-00
Unavailable
16
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
17
COLLAR (5E3)
90387-100E2-00
Unavailable
18
DAMPER, RUBBER 1
4X7-21485-00-00
Unavailable
19
BRACKET, REAR ARM
(22U-21430-00-00)
Unavailable
20
BOLT
90101-10074-00
Unavailable
21
NUT(4KG)
90179-10658-00
Unavailable
22
WASHER, LOCK
(4X7-21491-00-00)
Unavailable
23
HOSE
(90445-11705-00)
Unavailable
24
CLIP(6M6)
90467-13M13-00
Unavailable
25
SCOOP, AIR 1
22U-2137W-00-98
Unavailable
26
SCOOP, AIR 2
22U-2137X-00-98
Unavailable
27
GUIDE, AIR
22U-2137Y-00-98
Unavailable
28
SCREW, PAN
98507-06050-00
Unavailable
29
WASHER, SPRING
92907-06100-00
Unavailable
30
WASHER(6TA)
92907-06600-00
Unavailable
31
SCREW, PAN
98517-06020-00
Unavailable
32
WASHER, SPRING
92907-06100-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
BOLT, STUD
90116-12403-00
Unavailable
35
BRACKET, SIDE STAND
2GV-21458-00-00
Unavailable
36
NUT(4KG)
90179-10658-00
Unavailable
37
SCREW, PAN HEAD
90157-10041-00
Unavailable
38
SCREW, PAN HEAD
(90157-10042-00)
Unavailable
39
PLUG 288833190000
90338-07043-00
Unavailable
40
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
41
SCREW (3H1)
90149-06150-00
Unavailable
42
CLAMP (2H7)
90464-12027-00
Unavailable
43
DAMPER
(22U-2139X-00-00)
Unavailable
