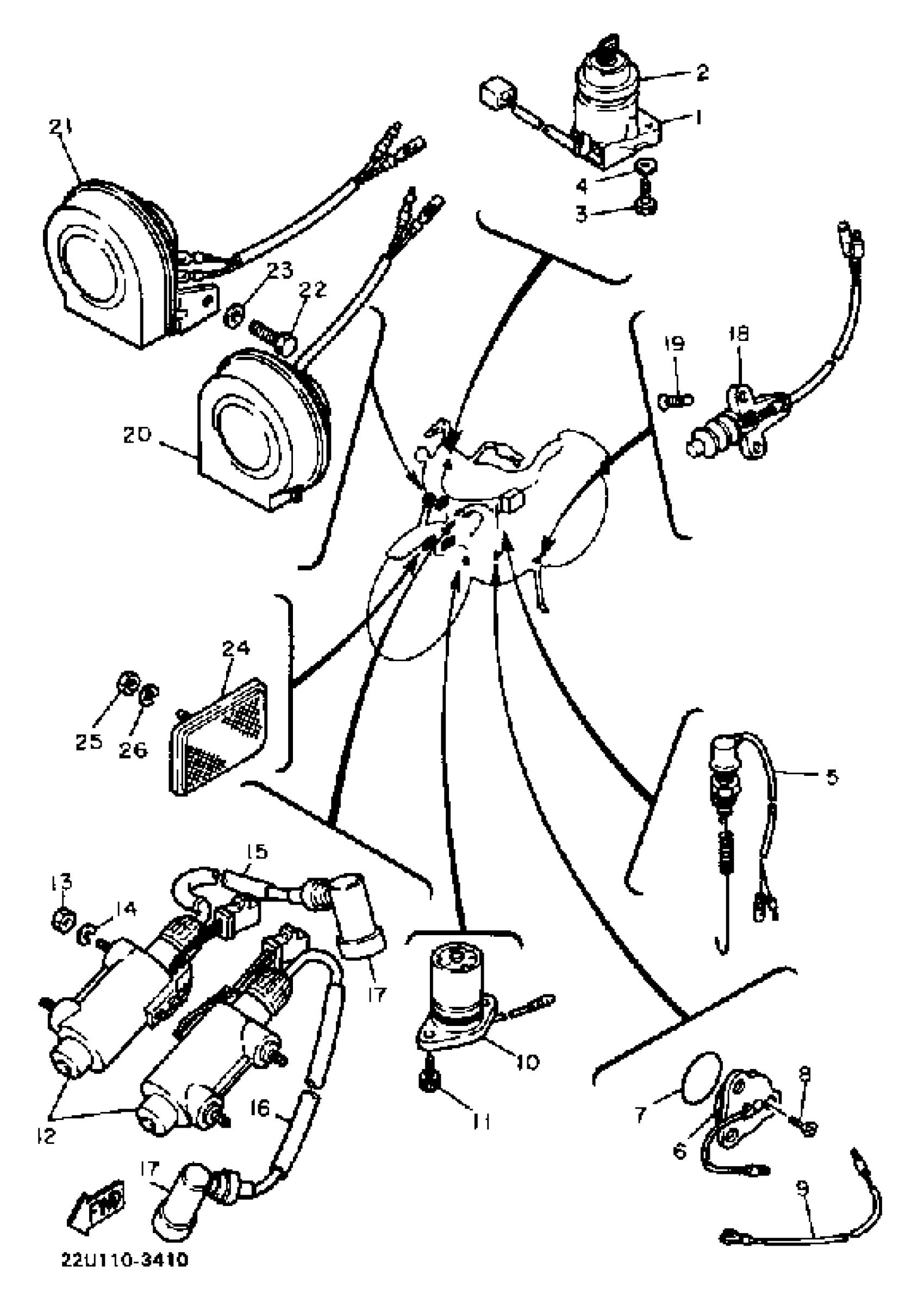

Yamaha XV500K (XV500K) 1983 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

2

GROMMET 117217730000

90480-40047-00

$3.02

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

STOP SWITCH ASSY

4GY-82530-01-00

Unavailable

6

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

7

O-RING (371)

93210-29196-00

$8.49

8

SCREW, FLAT

98707-05012-00

$1.71

9

WIRE, SUB LEAD

(22U-82509-00-00)

Unavailable

10

OIL LVEL GAUGE ASSEMBLY 001

22U-85720-01-00

Unavailable

10

OIL LVEL GAUGE ASSEMBLY 001

22U-85720-01-00

Unavailable

11

BOLT, SOCKET

91314-06016-00

$8.49

12

IGNITION COIL ASSEMBLY

4X7-82310-70-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

16

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

17

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

18

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

19

SCREW, FLAT

98707-05016-00

Unavailable

20

HORN

22U-83371-20-00

Unavailable

21

HORN

22U-83371-30-00

Unavailable

22

BOLT, HEXAGON

97017-08016-00

Unavailable

23

WASHER(JN5)

92907-08100-00

Unavailable

24

FRONT REFLECTOR ASSEMBLY

4X7-85110-00-00

Unavailable

25

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
