Description

Price

1

RELAY ASSY

4U8-81950-03-00

Unavailable

2

RELAY ASSY

12R-81950-02-00

$70.99

3

RECTIFIER/REG ASSEMBLY

4X7-81960-A0-00

Unavailable

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

8

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

9

NUT(650)

95380-06700-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

RECTIFIER 2

4H7-81980-M0-00

Unavailable

12

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

13

LABEL, BATTERY

40A-82141-G0-00

Unavailable

14

HOSE

90445-08286-00

Unavailable

15

BAND, BATTERY

26H-82131-00-00

$23.99

16

WIRE, PLUS LEAD

4G0-82115-00-00

Unavailable

17

WIRE, MINUS LEAD

22U-82116-00-00

Unavailable

18

WIRE HARNESS ASSEMBLY

22U-82590-50-00

Unavailable

19

FUSE

1A0-82151-00-00

Unavailable

20

FUSE

1A0-82161-00-00

Unavailable

21

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

IGNITOR UNIT ASSEMBLY 1

22U-82305-20-00

Unavailable

24

SCREW PAN HEAD

98580-06020-00

Unavailable

25

WASHER, PLATE

90201-06M08-00

Unavailable

26

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

27

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

28

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

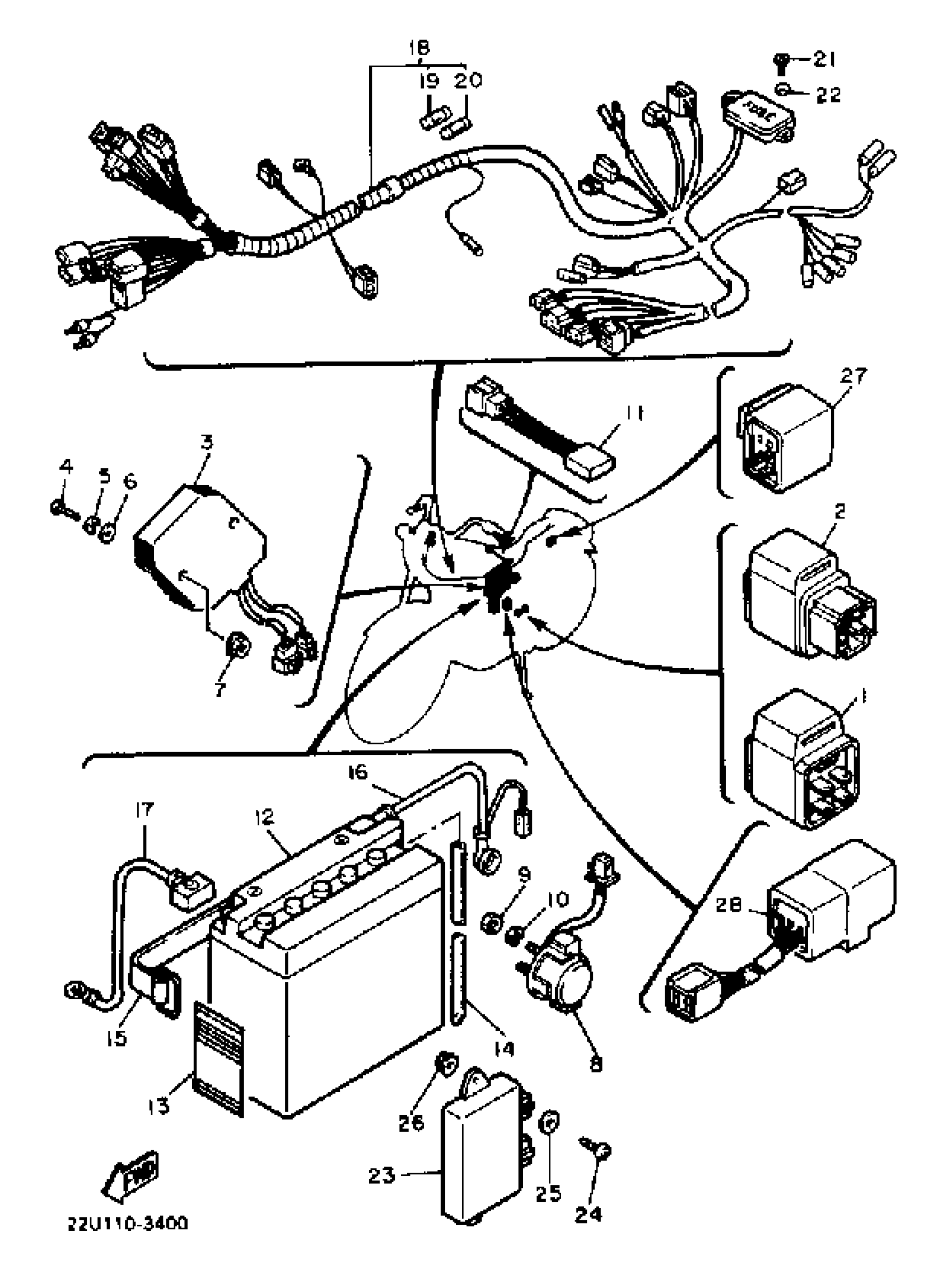

Yamaha XV500K (XV500K) 1983 ELECTRICAL 1 Diagram

RELAY ASSY

RELAY ASSY

RECTIFIER/REG ASSEMBLY

SCREW, PAN HEAD(6E0)

WASHER, SPRING

WASHER, PLAIN (646)

NUT, HEXAGON (371 447)

STARTER RELAY ASSY (MS5D-611)

NUT(650)

WASHER, SPRING

RECTIFIER 2

12N12A-4A-1 YUASA BATTERY

LABEL, BATTERY

HOSE

BAND, BATTERY

WIRE, PLUS LEAD

WIRE, MINUS LEAD

WIRE HARNESS ASSEMBLY

FUSE

FUSE

SCREW, PAN HEAD TAPPING (AK5)

WASHER, PLAIN (646)

IGNITOR UNIT ASSEMBLY 1

SCREW PAN HEAD

WASHER, PLATE

NUT, HEXAGON (371 447)

FLASHER RELAY ASSY

FLASHER CANCELING UNIT
