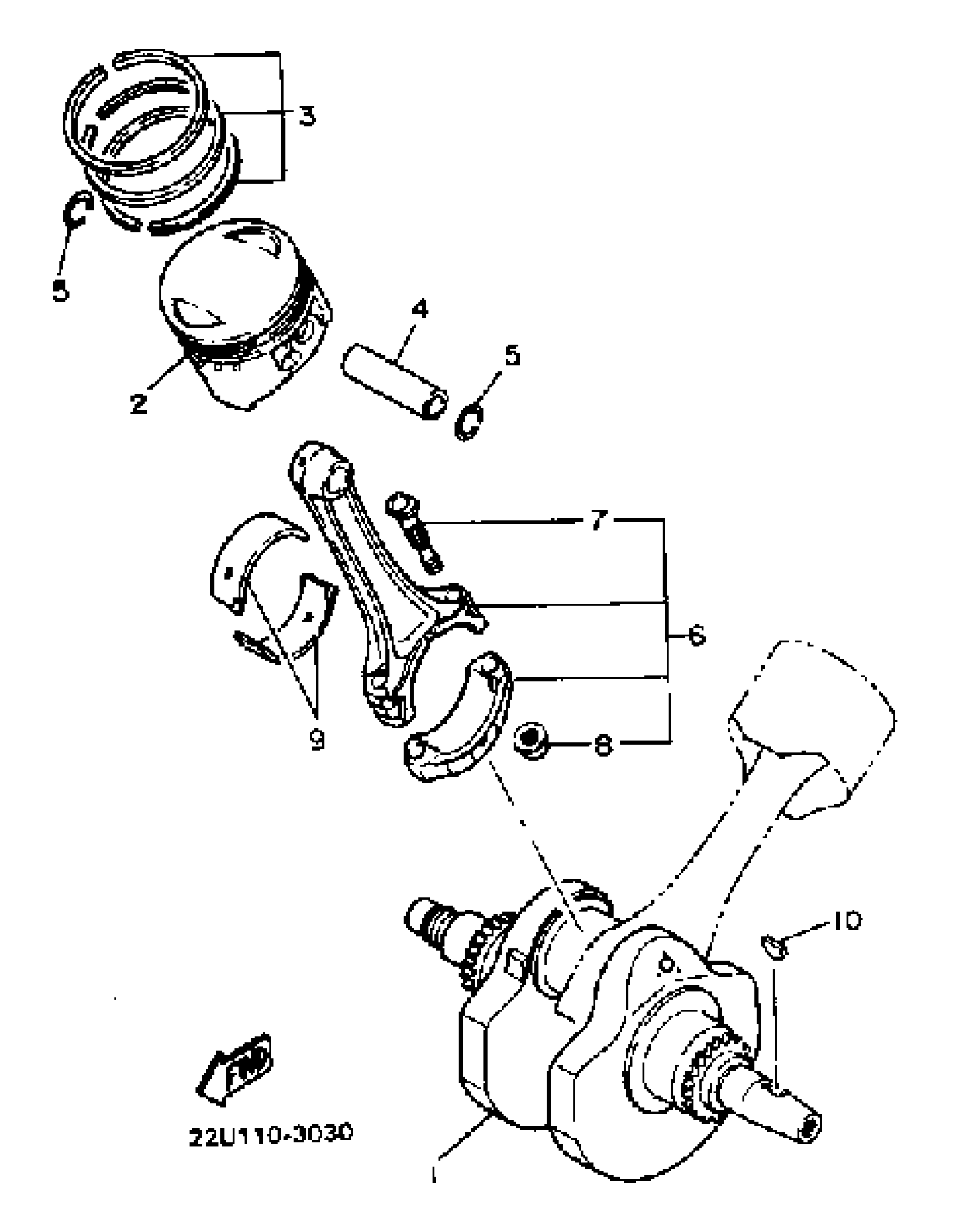

Yamaha XV500K (XV500K) 1983 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

22U-11411-00-00

Unavailable

2

PISTON STD

22U-11631-01-A0

Unavailable

2

PISTON 2 O/S 0.50

22U-11636-01-00

Unavailable

2

PISTON 4 O/S 1.00

(22U-11638-01-00)

Unavailable

3

PISTON RINGSET STD

22U-11610-00-00

Unavailable

3

PISTON RINGSET 2ND

22U-11610-20-00

Unavailable

3

PISTON RINGSET 4TH

(22U-11610-40-00)

Unavailable

4

PIN, PISTON

22U-11633-01-00

$16.49

5

CIRCLIP (2F1)

93450-19052-00

$7.49

6

CONNECTING ROD ASSEMBLY

22U-11650-00-00

Unavailable

7

BOLT, CONNECTING ROD

22U-11654-00-00

$11.99

8

NUT (11H)

90179-08327-00

$9.49

9

PLANE BEARING, CONNECTING ROD

22U-11656-00-00

$29.99

9

PLANE BEARING, CONNECTING ROD

22U-11656-10-00

$31.99

9

PLANE BEARING, CONNECTING ROD

22U-11656-20-00

$27.99

9

PLANE BEARING, CONNECTING ROD

22U-11656-30-00

Unavailable

10

KEY, WOODRUFF

90280-05001-00

Unavailable
