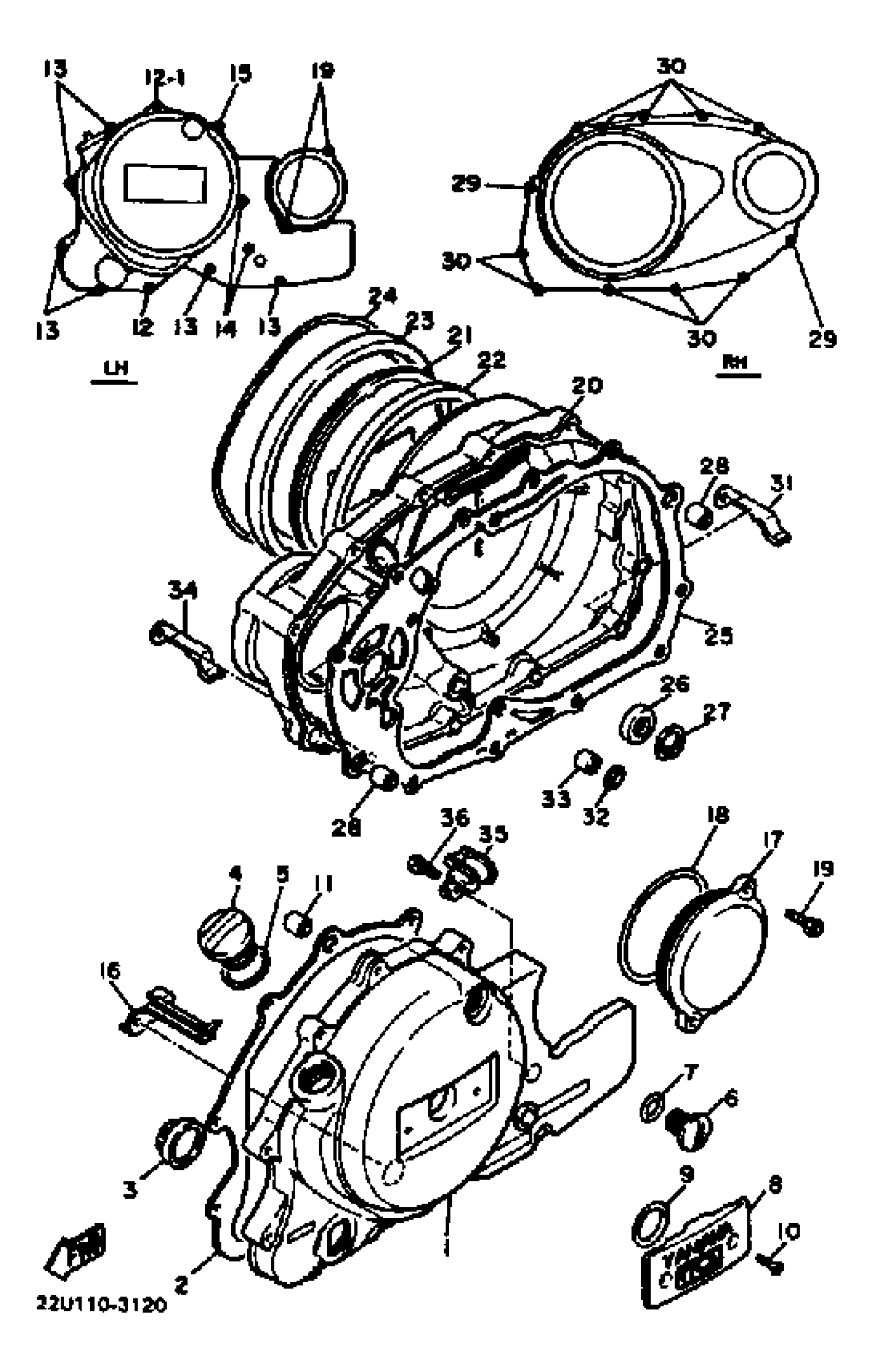

Yamaha XV500K (XV500K) 1983 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

22U-15411-00-00

Unavailable

1

BOLT, SOCKET

91314-06040-00

$8.49

2

GASKET, CRANKCASE COVER 1

4VR-15451-00-00

$28.99

3

GAUGE, LEVEL

2H7-15361-00-00

$97.99

4

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

5

O-RING(1KT)

93210-27778-00

$8.49

6

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

7

O-RING (2H9)

93210-14369-00

$7.49

8

COVER, cap 2

11H-15427-00-00

Unavailable

9

O-RING(2HG)

93210-270A8-00

$7.49

10

SCREW, FLAT HEAD

98780-06016-00

Unavailable

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BOLT, SOCKET

91314-06035-00

$8.49

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

BOLT, SOCKET

91314-06035-00

$8.49

15

BOLT, SOCKET

91314-06030-00

Unavailable

16

CLAMP

90462-10117-00

Unavailable

17

COVER, GENERATOR

22U-15415-01-00

Unavailable

18

O-RING (1J7)

93210-74316-00

Unavailable

19

BOLT, SOCKET

91314-06018-00

Unavailable

20

COVER, CRANKCASE R

22U-15421-01-00

Unavailable

21

COVER, CAP 2

22U-15427-01-00

Unavailable

22

RING, RUBBER

5E5-15449-00-00

Unavailable

23

COVER

5E5-15492-00-00

Unavailable

24

CLIP

90468-20116-00

Unavailable

25

GASKET, CRANKCASE COVER 2

4VR-15461-00-00

Unavailable

26

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

27

CIRCLIP

99009-25500-00

Unavailable

28

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

29

BOLT, SOCKET

91314-06040-00

$8.49

30

BOLT,SOCKET HEAD

91314-06025-00

$8.49

31

CLAMP (22U)

90462-10115-00

Unavailable

32

O-RING (22U)

93210-15566-00

Unavailable

33

PIN, DOWEL(MH0)

91815-16017-00

Unavailable

34

CLAMP

90462-10118-00

Unavailable

35

CLAMP

90462-06119-00

Unavailable

36

SCREW PAN HEAD

98580-06010-00

Unavailable
