- XV500K (XV500K) 1983
CARBURETOR

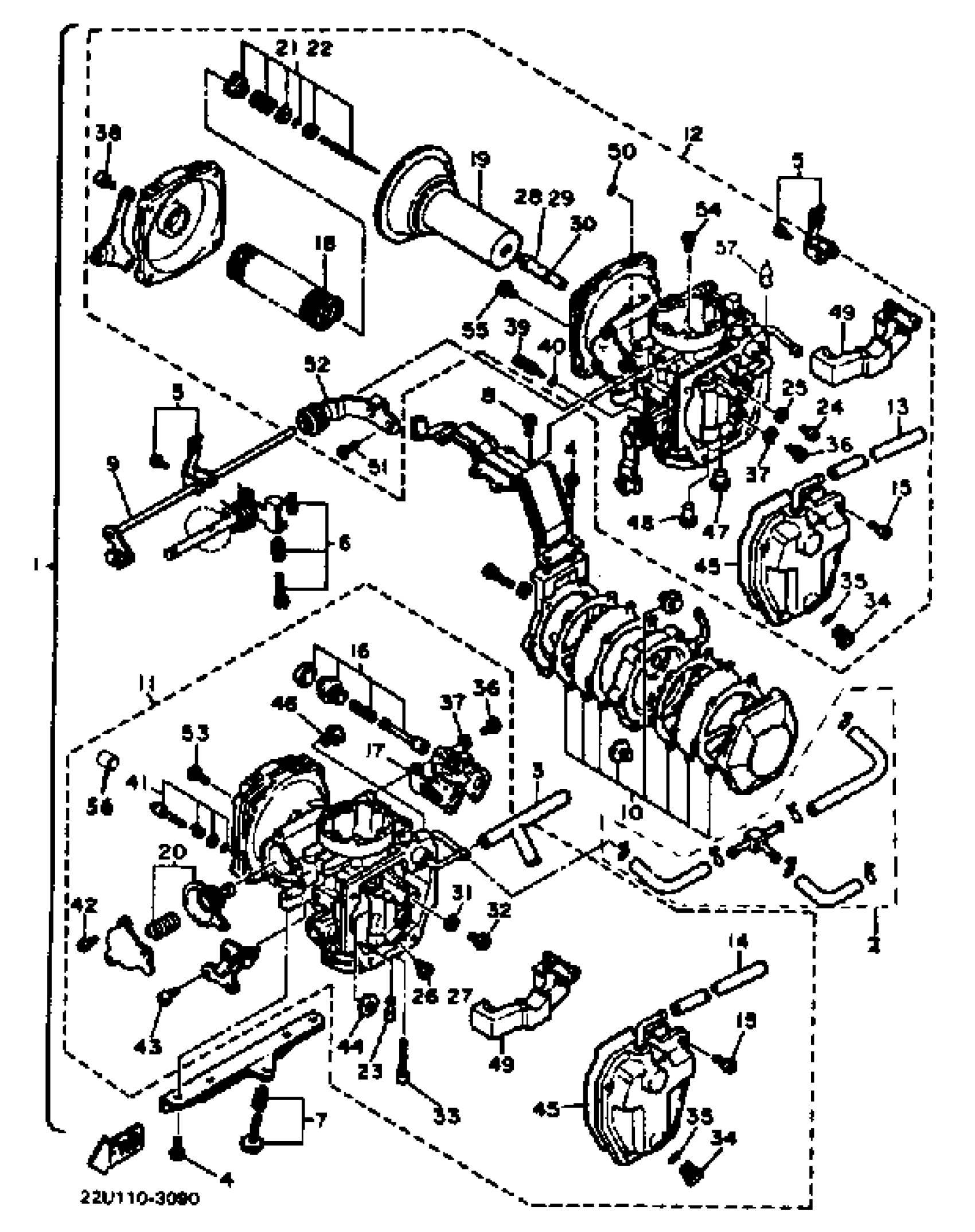

Yamaha XV500K (XV500K) 1983 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(22U-14900-01-00)
Unavailable
2
. HOSE
22V-14294-00-00
Unavailable
3
. HOSE
22U-14294-00-00
Unavailable
4
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
5
STARTER LEVER SET 2
22U-1490M-00-00
Unavailable
6
STOP SCREW SET
(22U-1490K-00-00)
Unavailable
7
THROTTLE SCREW SET
(22U-14103-00-00)
Unavailable
8
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
9
SHAFT, STARTER LVR
(22U-14977-00-00)
Unavailable
10
. DIAPHRAGM SET, 4
11H-1490G-00-00
Unavailable
11
CARBURETOR ASSEMBLY 1
(22U-14901-01-00)
Unavailable
12
. CARBURETOR ASSEMBLY 2
22U-14902-01-00
Unavailable
13
PIPE, AIRVENT
(22U-14197-00-00)
Unavailable
14
PIPE, AIRVENT
(22V-14197-01-00)
Unavailable
15
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
16
STARTER SET
11H-1410A-00-00
Unavailable
17
GASKET
3JB-14536-00-00
Unavailable
18
.. SPRING, DIAPHRAGM
22U-14933-00-00
Unavailable
19
DIAPHRAGM ASSY
22U-14940-09-00
Unavailable
20
DIAPHRAGM SET 5
22U-1490H-00-00
Unavailable
21
.. NEEDLE SET
22U-1490J-02-00
Unavailable
22
.. NEEDLE SET
22U-1490J-04-00
Unavailable
23
JET, PILOT (# 37.5)
4G0-14142-37-A0
Unavailable
24
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
25
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
26
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
27
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
28
NOZZLE, MAIN
(22U-14941-90-00)
Unavailable
29
NOZZLE, MAIN
(22U-14941-90-00)
Unavailable
30
O-RING
22U-14147-00-00
Unavailable
31
WASHER,MAIN JET
137-14153-00-00
Unavailable
32
SCREW
22U-14565-00-00
Unavailable
33
.. PIPE, MAIN BLEED
22U-1414G-00-00
Unavailable
34
PLUG, SCREW
22U-14115-00-00
Unavailable
35
.. O-RING
22U-14561-00-00
Unavailable
36
SCREW, PAN HEAD
98511-04012-00
Unavailable
37
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
38
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
39
SCREW
2L1-14191-00-00
Unavailable
40
O-RING
214-14147-00-00
Unavailable
41
PILOT SCREW SET
12R-14105-00-00
Unavailable
42
SCREW, PAN HEAD
98511-04012-00
Unavailable
43
SCREW PAN HEAD
98580-06010-00
Unavailable
44
GASKET
3JB-14199-00-00
Unavailable
45
O-RING
22V-14147-00-00
Unavailable
46
. PLUG, SCREW
2F5-14115-00-00
Unavailable
47
CAP
22U-14968-00-00
Unavailable
48
CAP
22V-14968-00-00
Unavailable
49
.. FLOAT
22U-14985-00-00
Unavailable
50
O-RING (248)
93210-03119-00
Unavailable
51
SCREW,FLAT HEAD
98780-06010-00
Unavailable
52
PLATE
(22U-14255-00-00)
Unavailable
53
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
54
. JET, MAIN 80 (80)
3G2-14231-16-00
Unavailable
55
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
56
CAP
3F9-14118-00-00
Unavailable
