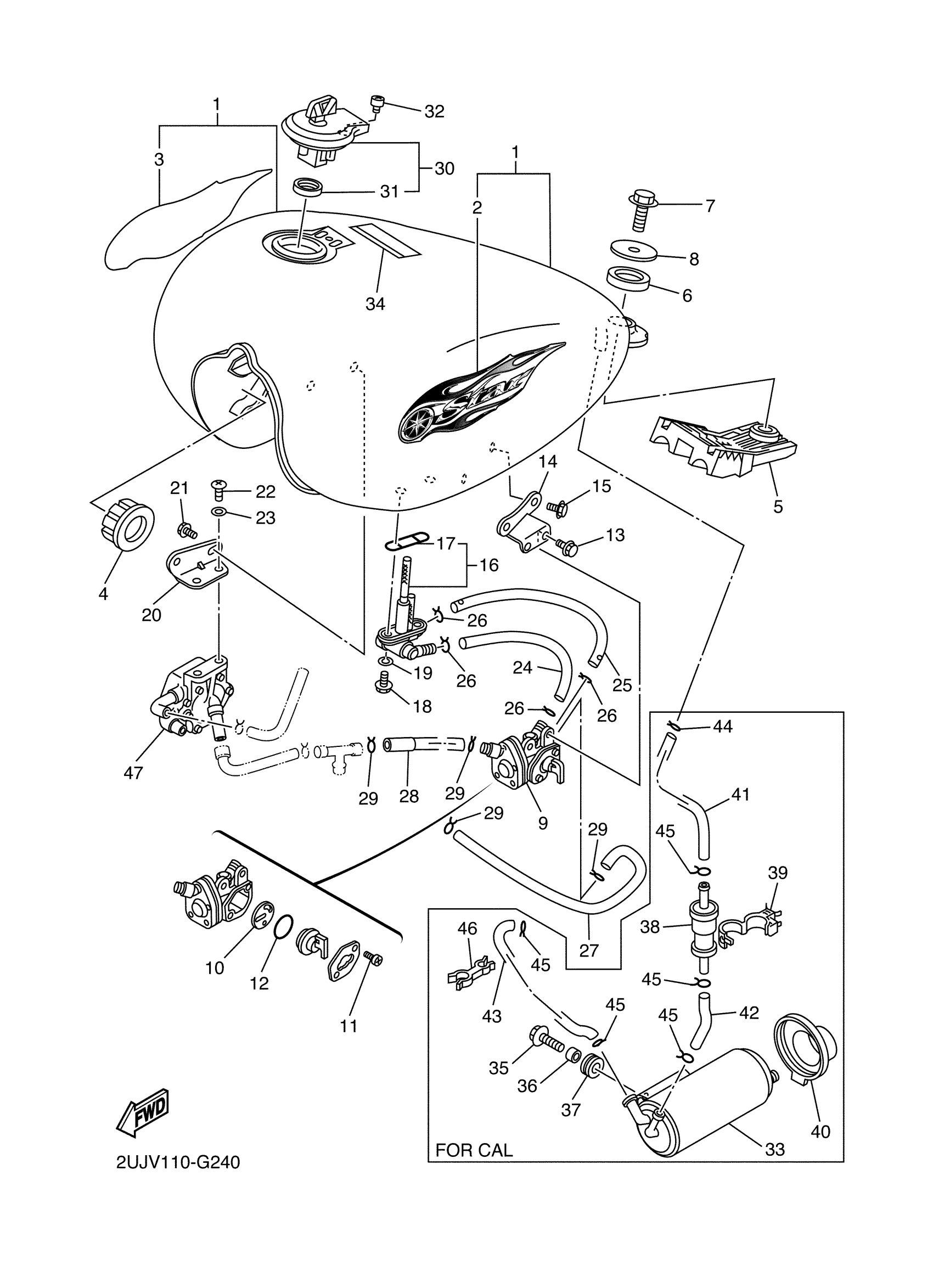

Yamaha XV250ZCB (V STAR 250 CA) 3BGK 2010 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3LS-Y2410-T3-X4

Unavailable

2

EMBLEM 1

2UJ-24231-10-00

Unavailable

3

EMBLEM 2

2UJ-24232-10-00

Unavailable

4

DAMPER, LOCATING

4H7-24181-00-00

$6.99

5

DAMPER, LOCATING 2

2UJ-24182-00-00

Unavailable

6

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

7

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

8

WASHER, PLATE (521)

90201-08569-00

$7.49

9

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

10

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

SEAL, COCK

1JK-24534-00-00

$8.99

13

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

14

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

15

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

16

FILTER ASSY

2UJ-24560-10-00

Unavailable

17

O-RING

4X8-24512-00-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

21

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

22

SCREW, PAN

98517-06012-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

HOSE

90445-11057-00

Unavailable

25

HOSE

90445-11058-00

Unavailable

26

CLIP

90467-100A1-00

Unavailable

27

PIPE 2

2UJ-24312-10-00

Unavailable

28

PIPE 3

2UJ-24313-00-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

CAP ASSY

4X7-24602-10-00

Unavailable

31

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

32

BOLT, SOCKET

91317-05010-00

Unavailable

34

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

47

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
