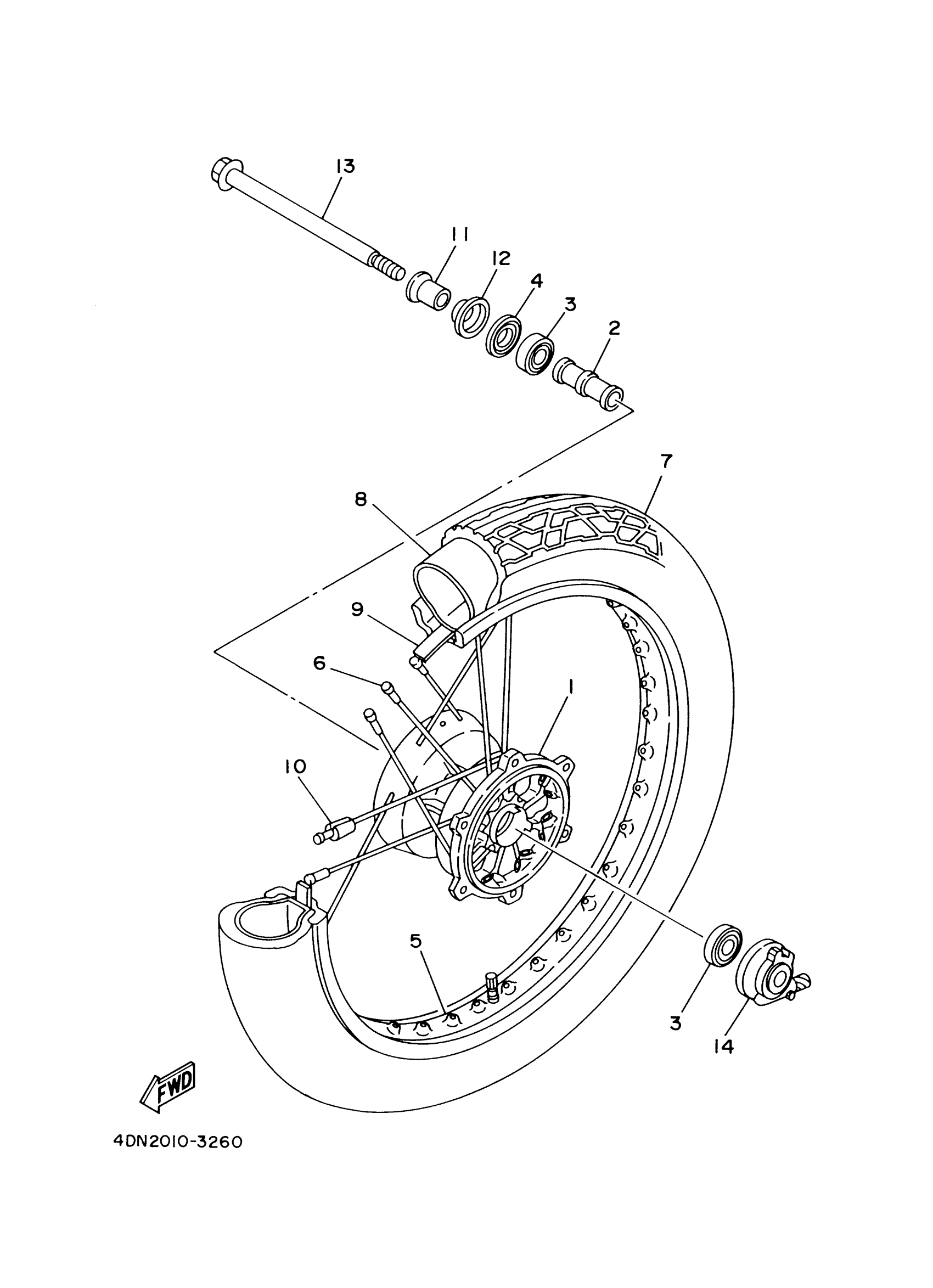

Yamaha XV250YR (V STAR 250) 46B1 2009 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

4DN-25111-20-35

Unavailable

2

SPACER (34L)

90560-15240-00

Unavailable

3

BEARING

93306-20205-00

$38.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM (1.60-18)

94416-18599-00

$173.99

6

SPOKE SET, FRONT

3DM-25104-02-00

Unavailable

7

TIRE

94130-184T4-00

Unavailable

8

TUBE (5H5)

94227-18195-00

$35.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

BALANCER, WHEEL

3HT-25398-00-00

$7.99

11

COLLAR (1W1)

90387-15600-00

$18.99

12

COVER, HUB DUST

322-25118-00-00

$17.49

13

AXLE, WHEEL

10W-25381-00-00

Unavailable

14

GEAR UNIT ASSY

4DN-25190-02-00

$108.99
