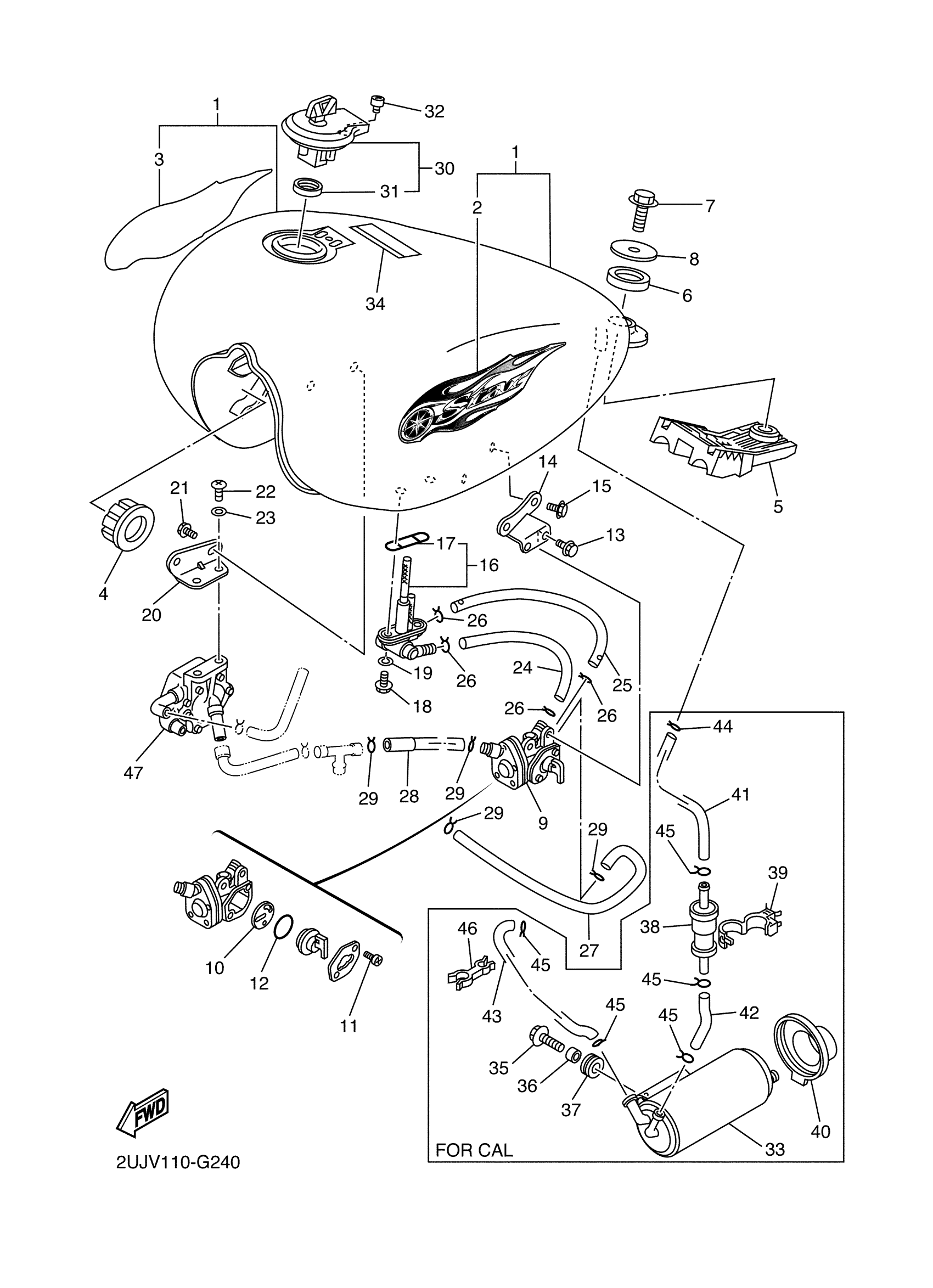

Yamaha XV250XR (V STAR 250) 2UJV 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VERY DARK RED METALLIC 2)
3BG-Y2410-02-07
Unavailable
1
FUEL TANK COMP.
3LS-Y2410-T3-X3
Unavailable
2
. EMBLEM 1
2UJ-24231-00-00
Unavailable
3
. EMBLEM 2
2UJ-24232-00-00
Unavailable
5
DAMPER, LOCATING 2
2UJ-24182-00-00
Unavailable
14
BRACKET, FUEL COCK
2UJ-24544-01-00
Unavailable
16
FILTER ASSY
2UJ-24560-10-00
Unavailable
17
O-RING
4X8-24512-00-00
Unavailable
18
SCREW 256241430000
90149-06011-00
Unavailable
19
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
20
BRACKET, FUEL PUMP
2UJ-24491-01-00
Unavailable
22
SCREW, PAN
98517-06012-00
Unavailable
23
WASHER(6TA)
92907-06600-00
Unavailable
24
HOSE
90445-11057-00
Unavailable
25
HOSE
90445-11058-00
Unavailable
26
CLIP
90467-100A1-00
Unavailable
27
PIPE 2
2UJ-24312-10-00
Unavailable
28
PIPE 3
2UJ-24313-00-00
Unavailable
29
CLIP
90467-100A1-00
Unavailable
30
CAP ASSY
20K-24602-10-00
Unavailable
30
CAP ASSY
4X7-24602-10-00
Unavailable
31
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
32
BOLT, SOCKET
91317-05010-00
Unavailable
33
CANISTER ASSY
3BG-24170-00-00
Unavailable
34
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
35
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
36
COLLAR(4DN)
90387-0600V-00
Unavailable
37
GROMMET (16R)
90480-14329-00
Unavailable
38
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
39
CLAMP(4HM)
90464-15192-00
Unavailable
40
COVER, CANISTER
2JU-2419E-00-00
Unavailable
41
PIPE 10
3BG-24321-10-00
Unavailable
42
PIPE 11
3BG-24322-10-00
Unavailable
43
PIPE 12
3BG-24323-10-00
Unavailable
44
CLIP
90467-090A2-00
Unavailable
45
CLIP
90467-100A1-00
Unavailable
46
CLAMP(3BG)
90464-16119-00
Unavailable
47
FUEL PUMP ASSY
3DM-13910-01-00
Unavailable
