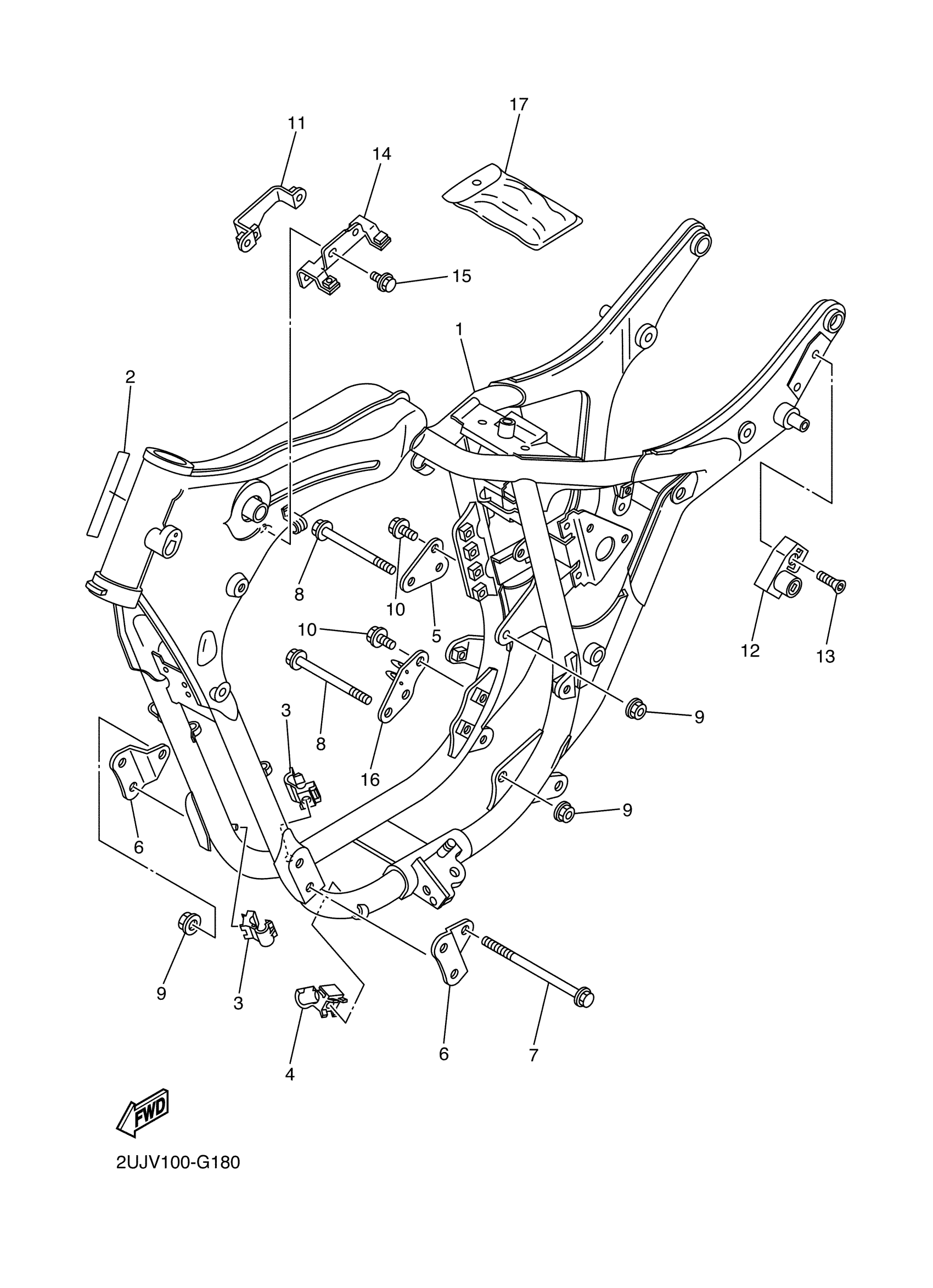

Yamaha XV250XR (V STAR 250) 2UJV 2008 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2UJ-21110-20-33

Unavailable

2

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

3

CLAMP(4GY)

90464-05188-00

$4.72

4

CLAMP(4GY)

90464-10190-00

$9.49

5

STAY, ENGINE 5

2UJ-21318-01-00

$5.49

6

STAY, ENGINE 2

2UJ-21315-00-00

$15.49

7

BOLT, FLANGE(2UJ)

95814-08150-00

$11.49

8

BOLT, FLANGE(2UJ)

95814-08110-00

$7.49

9

NUT(55X)

90179-08491-00

$8.49

10

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

11

PLATE, BRIDGE

2UJ-21243-00-00

Unavailable

12

HELMET HANGER ASSY

26H-21308-01-00

$82.99

13

SCREW (4G1)

90149-06154-00

$9.49

14

BRACKET, IGNITION COIL

2UJ-2135Y-00-00

Unavailable

15

BOLT, FLANGE

95817-06012-00

$1.43

16

STAY, ENGINE 6

2UJ-21319-00-00

Unavailable

17

TOOL KIT

2UJ-28100-00-00

Unavailable
