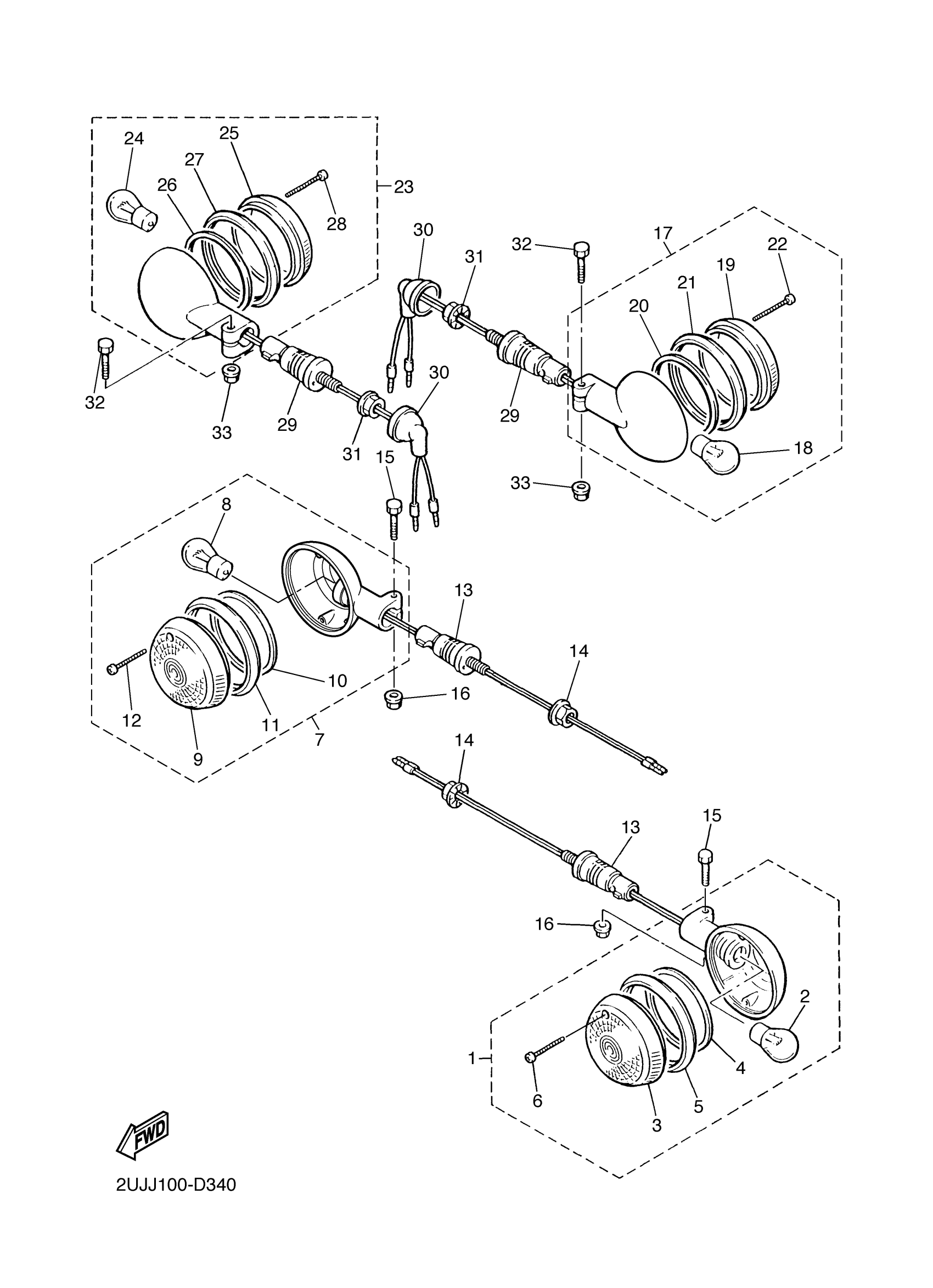

Yamaha XV250XR (V STAR 250) 2UJV 2008 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$48.47

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

42X-83312-10-00

$12.00

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

42X-83320-K1-00

$50.71

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

9

LENS, FLASHER

42X-83312-20-00

$12.08

10

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

11

LENS, RIM

1D6-83363-10-00

$21.82

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

STAY, FLASHER 1

1AA-83318-00-00

$37.04

14

NUT(3DM)

95304-12600-00

$6.22

15

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

REAR FLASHER LIGHT ASSY 1

3DN-83330-01-00

Unavailable

18

. BULB (12V-27W)

256-83311-00-XX

Unavailable

19

LENS, FLASHER

42X-83312-20-00

$12.08

20

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

21

LENS, RIM

1D6-83363-10-00

$21.82

22

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

23

FLASHER LIGHT ASSY 2

3DN-83340-01-00

Unavailable

24

. BULB (12V-27W)

256-83311-00-XX

Unavailable

25

LENS, FLASHER

42X-83312-10-00

$12.00

26

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

27

LENS, RIM

1D6-83363-00-00

$21.88

28

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

29

STAY, FLASHER 1

1AA-83318-00-00

$37.04

30

CAP

18G-83365-00-00

Unavailable

31

NUT(3DM)

95304-12600-00

$6.22

32

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

33

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
