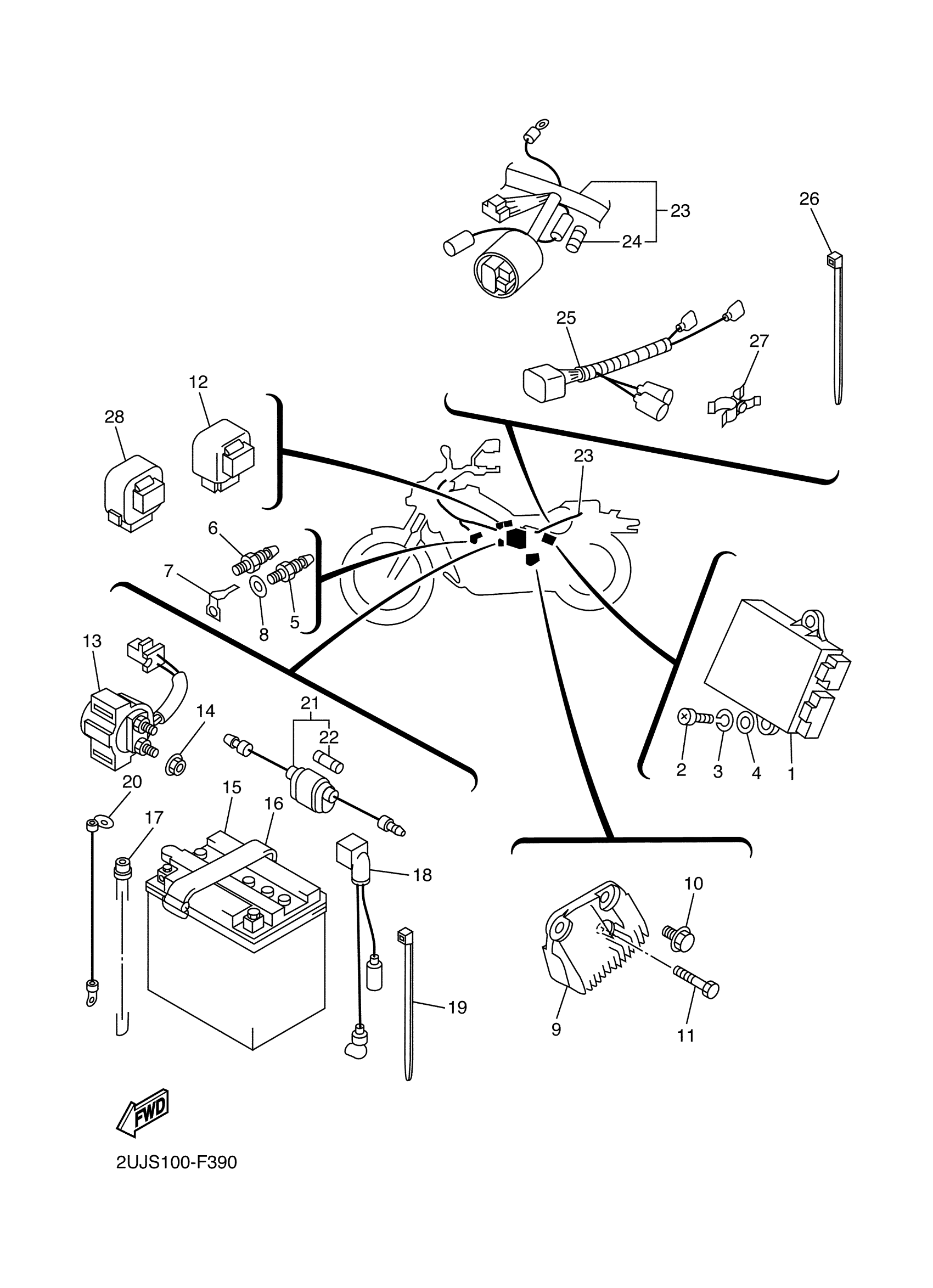

Yamaha XV250XR (V STAR 250) 2UJV 2008 ELECTRICAL 1 Diagram

IGNITOR UNIT ASSY

2UJ-82305-00-00

$379.99

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

HEATER ASSY

5FU-83790-00-00

Unavailable

HEATER ASSY

5FU-83790-20-00

$49.99

HEATER ASSY

5FU-83790-20-00

$49.99

TERMINAL 1

5FU-82103-00-00

$7.99

WASHER, PLATE

90201-08016-00

$8.49

RECTIFIER & REGULATOR ASSY

3DM-81960-01-00

$255.99

BOLT, WITH WASHER

90119-06242-00

$7.49

BOLT, HEXAGON

97017-06030-00

$3.61

RELAY ASSY

2UJ-81950-02-00

$65.99

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

$1.23

YB10LA2 YUASA BATTERY

YB1-0LA20-00-00

Unavailable

BAND, BATTERY

118-82131-00-00

Unavailable

HOSE

90445-08719-00

Unavailable

WIRE, PLUS LEAD

2UJ-82115-01-00

Unavailable

CLAMP

5Y9-12491-00-00

Unavailable

WIRE, MINUS LEAD

2UJ-82116-00-00

Unavailable

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

FUSE

1A0-82161-00-00

Unavailable

WIRE HARNESS ASSY

2UJ-82590-20-00

Unavailable

WIRE HARNESS ASSY

3BG-82590-20-00

Unavailable

FUSE (10A)

1E6-82151-00-00

Unavailable

WIRE, SUB LEAD

2UJ-82509-01-00

Unavailable

CLAMP

5Y9-12491-00-00

Unavailable

CLAMP(3BG)

90464-16119-00

Unavailable

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable
