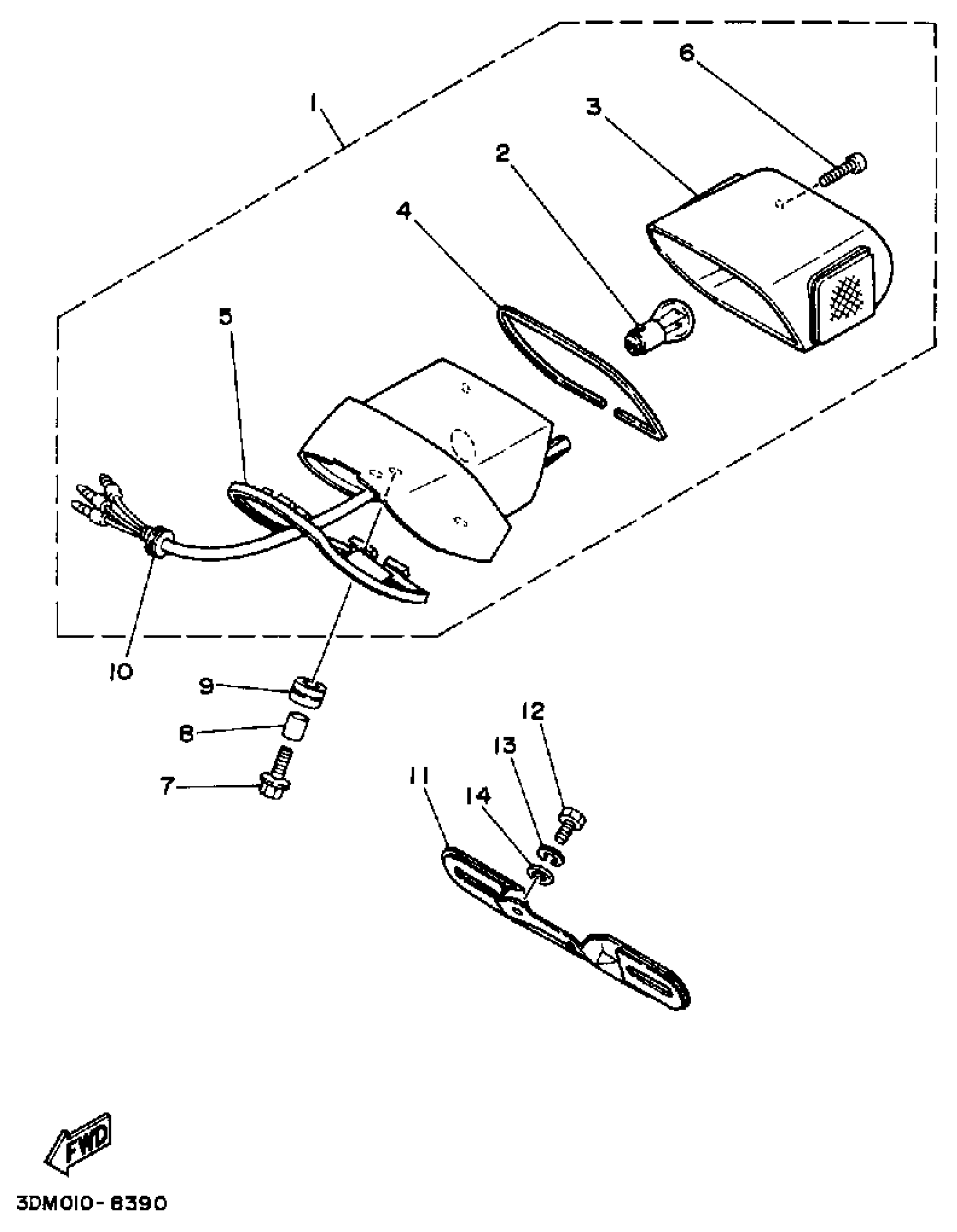

Yamaha XV250WC (ROUTE 66 CA) 1989 TAILLIGHT Diagram

TAILLIGHT ASSY

2UJ-84700-00-00

Unavailable

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

LENS, TAILLIGHT

2UJ-84721-00-00

$16.16

SEAL

1VJ-14462-00-00

$15.00

GASKET, TAILLIGHT

2UJ-84704-00-00

Unavailable

SCREW, TAPPING(7G6)

97780-40525-00

$5.61

BOLT, WITH WASHER(3FC)

90119-06163-00

$7.29

COLLAR (2UJ)

(90387-061V1-00)

Unavailable

GROMET (3X3)

90480-14229-00

$5.75

GROMMET(2UJ)

90480-16501-00

$5.29

BRACKET, LICENCE

2UJ-84751-00-00

$31.50

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

WASHER, SPRING

92995-06100-00

$2.95

WASHER, PLAIN (646)

92990-06600-00

$1.84
