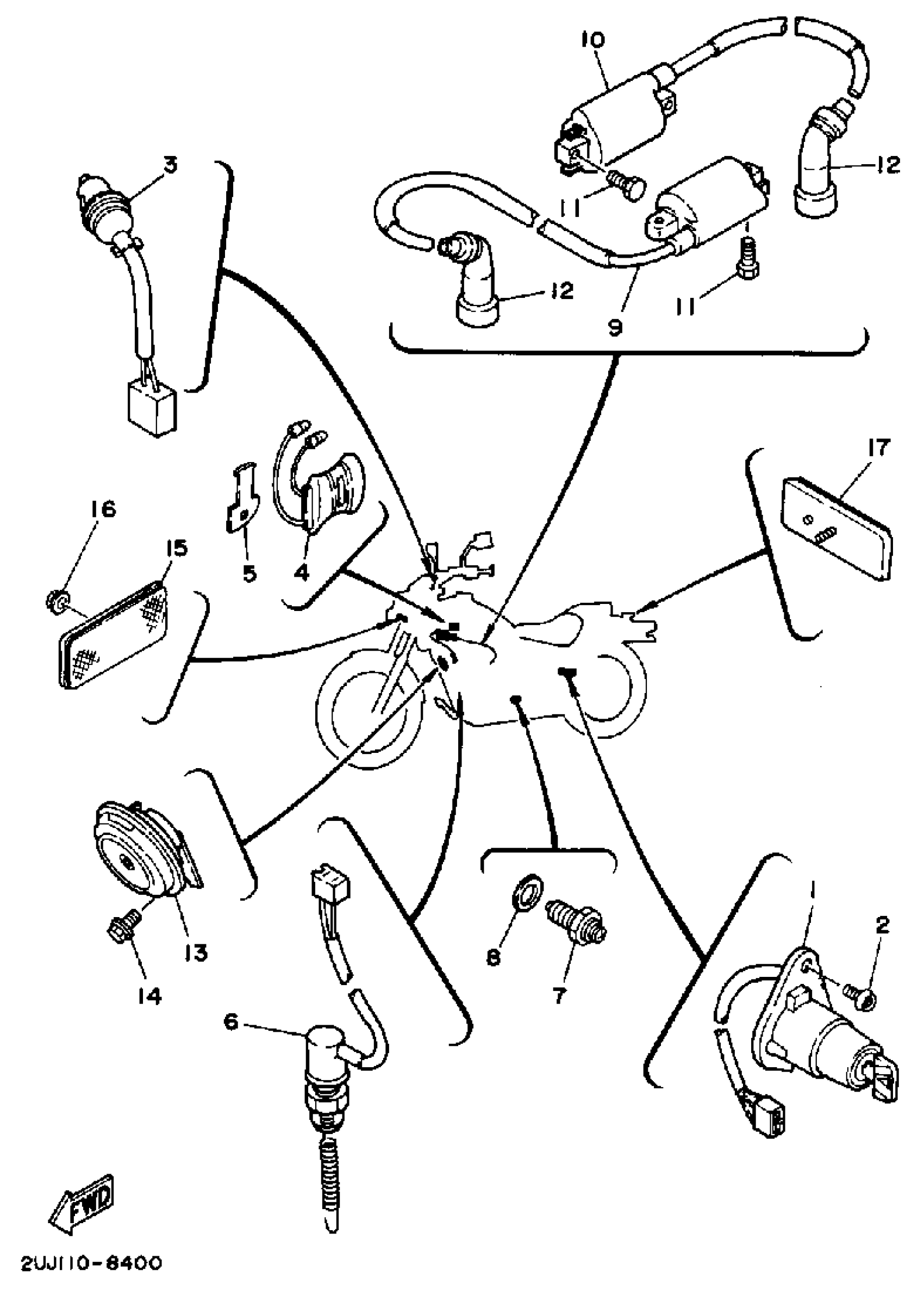

Yamaha XV250WC (ROUTE 66 CA) 1989 ELECTRICAL 2 Diagram

MAIN SWITCH ASSY

2UJ-82510-00-00

Unavailable

SCREW(1KT)

90149-06228-00

$9.49

FRONT STOP SWITCH ASSY

2UJ-83980-00-00

$43.99

THERMO SWITCH ASSY

3BT-82560-00-00

Unavailable

PANEL, SWITCH

(3DM-82571-00-00)

Unavailable

STOP SWITCH ASSY

3XV-82530-01-00

Unavailable

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

BOLT(3JK)

97027-05020-00

$3.29

PLUG CAP ASSY

3NS-82370-00-00

$37.99

HORN

4LR-83371-11-00

$49.99

BOLT, FLANGE

95817-06010-00

$4.73

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable
