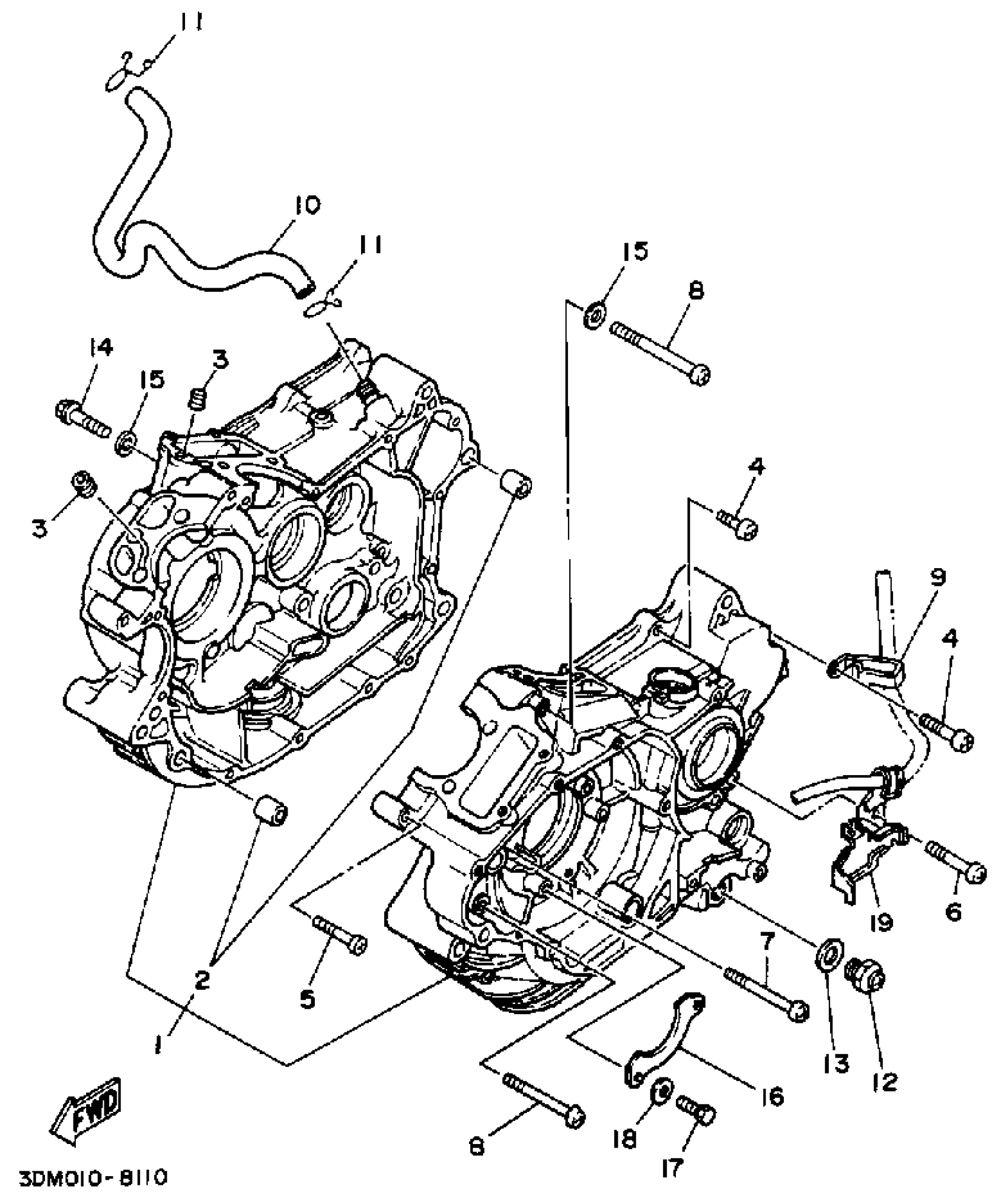

Yamaha XV250WC (ROUTE 66 CA) 1989 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2UJ-15100-01-00
Unavailable
3
NOZZLE 1
2UJ-15138-00-00
Unavailable
4
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
6
SCREW, BIND (JH1)
98580-06560-00
Unavailable
8
SCREW, PAN HEAD
98580-06580-00
Unavailable
9
CLAMP(51Y)
90465-08277-00
Unavailable
10
PIPE, BREATHER 1
(2UJ-11166-00-00)
Unavailable
15
GASKET 256113960000
90430-06014-00
Unavailable
16
PLATE
(2UJ-12279-00-00)
Unavailable
17
BOLT, HEXAGON
97017-06012-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
CLAMP
90465-08060-00
Unavailable
