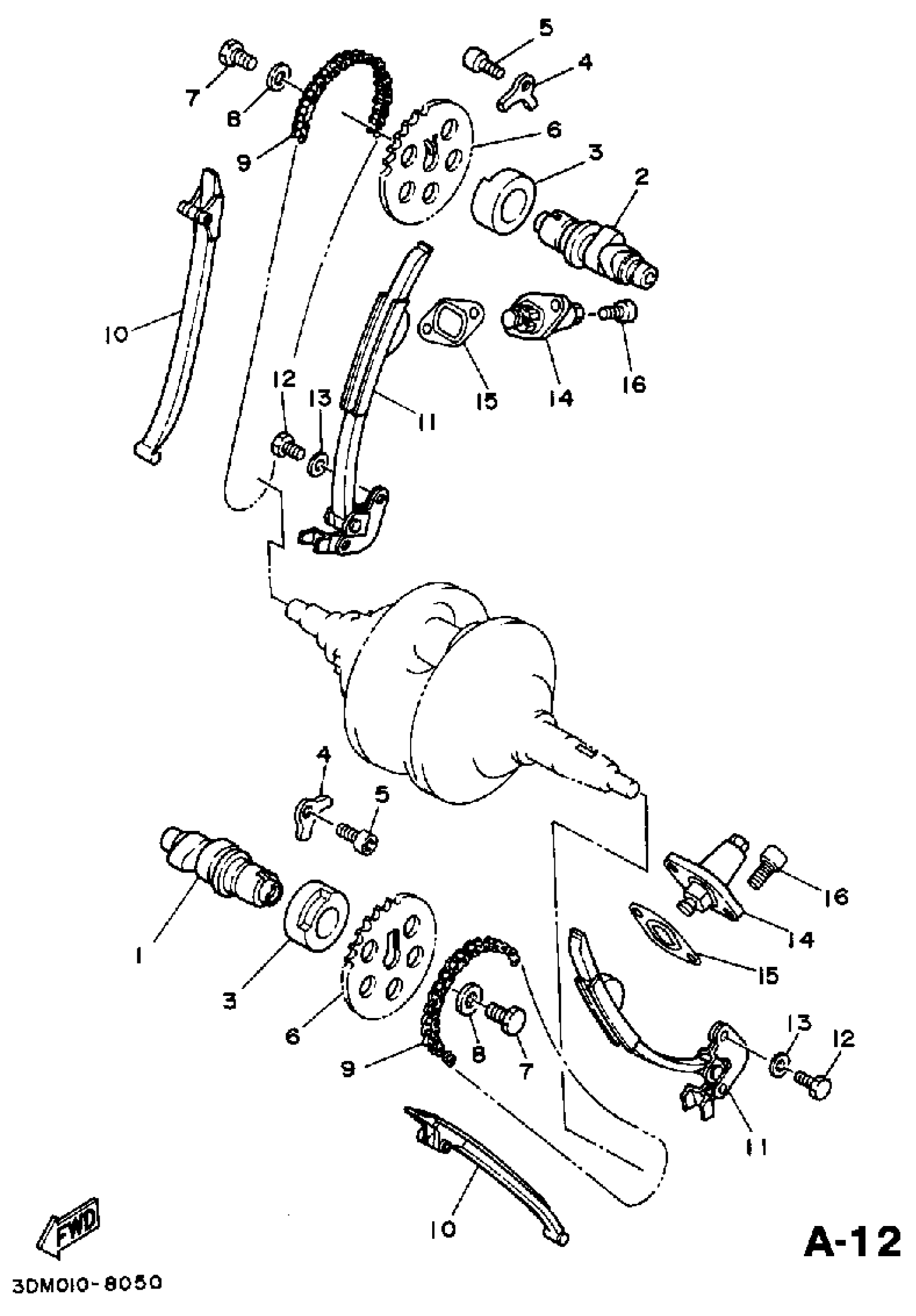

Yamaha XV250WC (ROUTE 66 CA) 1989 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

2UJ-12171-00-00

Unavailable

2

CAMSHAFT 2

(2UJ-12181-00-00)

Unavailable

3

BUSH, SOLID(3DM)

90381-22070-00

$10.50

4

PLATE

2UJ-1111F-00-00

$2.41

5

BOLT,SOCKET

91317-06012-00

$5.75

6

SPROCKET, CAM CHAIN

2UJ-12176-00-00

Unavailable

7

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

8

WASHER (853)

90201-08326-00

$5.75

9

CHAIN(3DM)

94580-25110-00

$9.99

10

GUIDE, STOPPER 1

(2UJ-12231-00-00)

Unavailable

11

GUIDE, STOPPER 2

2UJ-12241-00-00

Unavailable

12

BOLT, HEXAGON

97017-06012-00

$2.44

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

TENSIONER ASSY, CAM CHAIN

4GL-12210-00-00

$74.63

15

GASKET, TENSIONER CASE

4RF-12213-00-00

$4.90

16

BOLT, SOCKET

91314-06016-00

Unavailable
