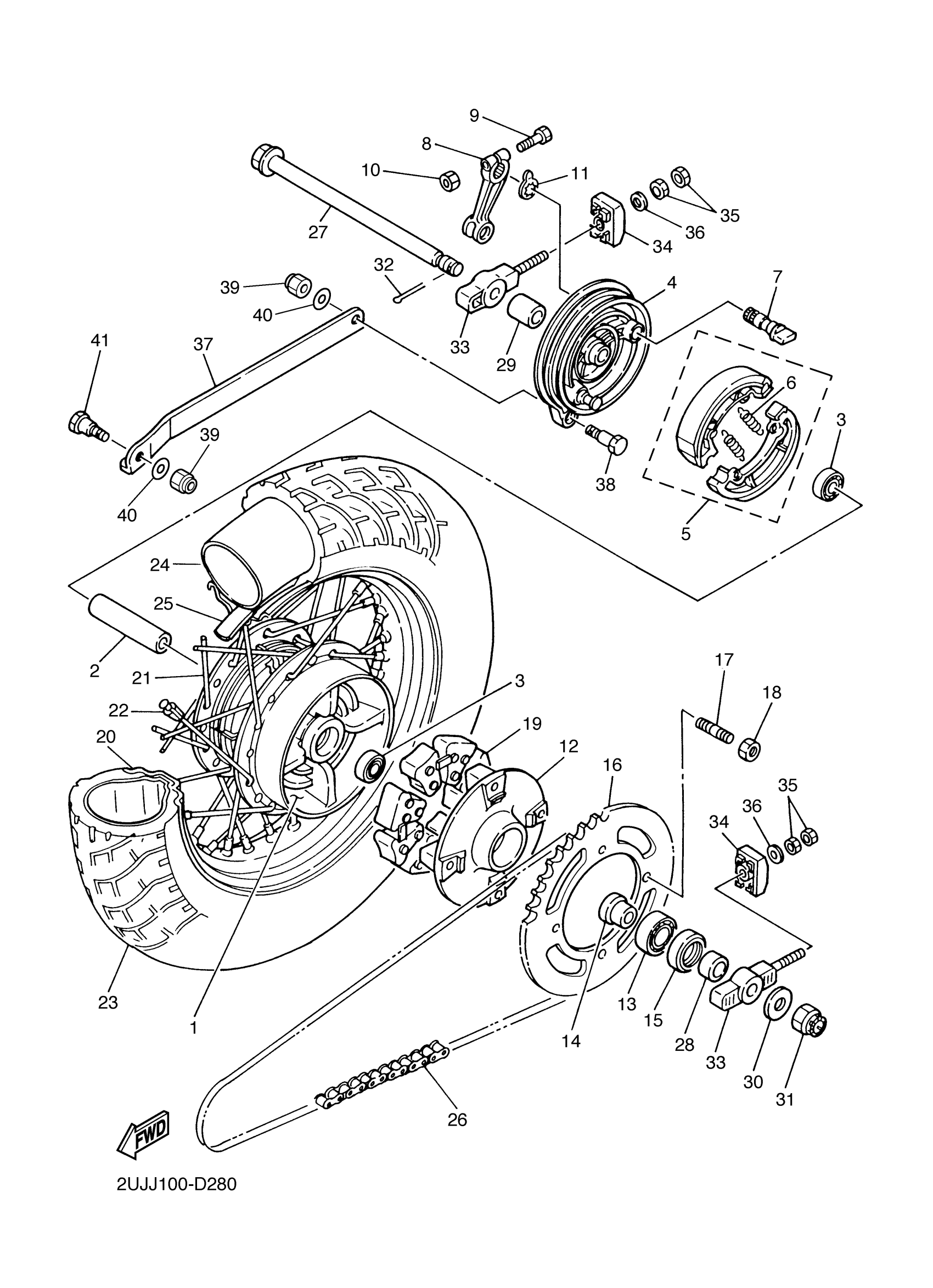

Yamaha XV250VC (VIRAGO 250 CA) 3BGF 2006 REAR WHEEL Diagram
#
1
HUB, REAR
2UJ-25311-10-00
Unavailable
2
SPACER, BEARING
2UJ-25317-00-00
Unavailable
4
PLATE, BRAKE SHOE
2RH-25321-11-00
Unavailable
8
LEVER, CAMSHAFT
5H0-25355-00-00
Unavailable
12
CLUTCH, HUB
5Y1-25366-10-00
Unavailable
16
SPROCKET, DRIVEN (45T)
4DN-25445-30-00
Unavailable
17
BOLT, STUD(1TX)
90116-10485-00
Unavailable
18
NUT, SELF-LOCKING
90185-10170-00
Unavailable
19
DAMPER
5Y1-25364-00-00
Unavailable
20
RIM
94427-15600-00
Unavailable
21
SPOKE SET, REAR
2UJ-25304-02-00
Unavailable
22
BALANCER, WHEEL
3HT-25398-00-00
Unavailable
23
TIRE
94113-151W8-00
Unavailable
24
TUBE(3DM)
94213-15265-00
Unavailable
25
BAND, RIM(3DM)
94313-15154-00
Unavailable
26
CHAIN
9Y581-92113-00
Unavailable
27
AXLE, WHEEL
2UJ-25381-00-00
Unavailable
28
COLLAR
90387-15004-00
Unavailable
29
COLLAR(3DM)
90387-153U1-00
Unavailable
30
WASHER, PLAIN
92990-14200-00
Unavailable
31
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
32
PIN, COTTER
91490-30030-00
Unavailable
33
PULLER, CHAIN 1
2UJ-25388-00-00
Unavailable
34
PLATE 1
55K-2539F-00-00
Unavailable
35
NUT(2UJ)
95304-08600-00
Unavailable
36
.. WASHER, PLATE
92990-08600-00
Unavailable
37
BAR, TENSION
2UJ-25371-00-00
Unavailable
38
BOLT
90109-08005-00
Unavailable
39
NUT, U
95617-08100-00
Unavailable
40
WASHER(6TA)
92907-08600-00
Unavailable
41
BOLT
90109-08003-00
Unavailable
