Description

Price

1

CRANKSHAFT ASSY

2UJ-11400-10-00

Unavailable

2

CRANK 1

2UJ-W1141-00-00

Unavailable

3

CRANK 2

2UJ-11422-00-00

Unavailable

4

PIN, CRANK 1

2UJ-11681-00-00

Unavailable

5

ROD, CONNECTING

2UJ-11651-00-00

$168.99

6

WASHER(3DM)

90209-31300-00

$1.28

7

SPROCKET, CAM CHAIN 2

2UJ-1154A-00-00

Unavailable

8

COLLAR

2UJ-11478-00-00

Unavailable

9

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

10

NUT(3EF)

90179-12657-00

$5.60

11

WASHER (838)

90201-12191-00

$7.49

12

KEY, WOODRUFF

90280-05001-00

$12.49

13

PISTON (STD)

2UJ-11631-00-A0

Unavailable

13

PISTON (0.50MM O/S)

2UJ-11636-00-00

Unavailable

13

PISTON (1.00MM O/S)

2UJ-11638-00-00

$109.99

14

PIN, PISTON

22K-11633-01-00

Unavailable

15

CIRCLIP (22F)

93450-14088-00

Unavailable

16

PISTON RING SET (STD)

50M-11610-00-00

Unavailable

16

PISTON RING SET (2ND O/S)

50M-11610-20-00

Unavailable

16

PISTON RING SET (4TH O/S)

50M-11610-40-00

Unavailable

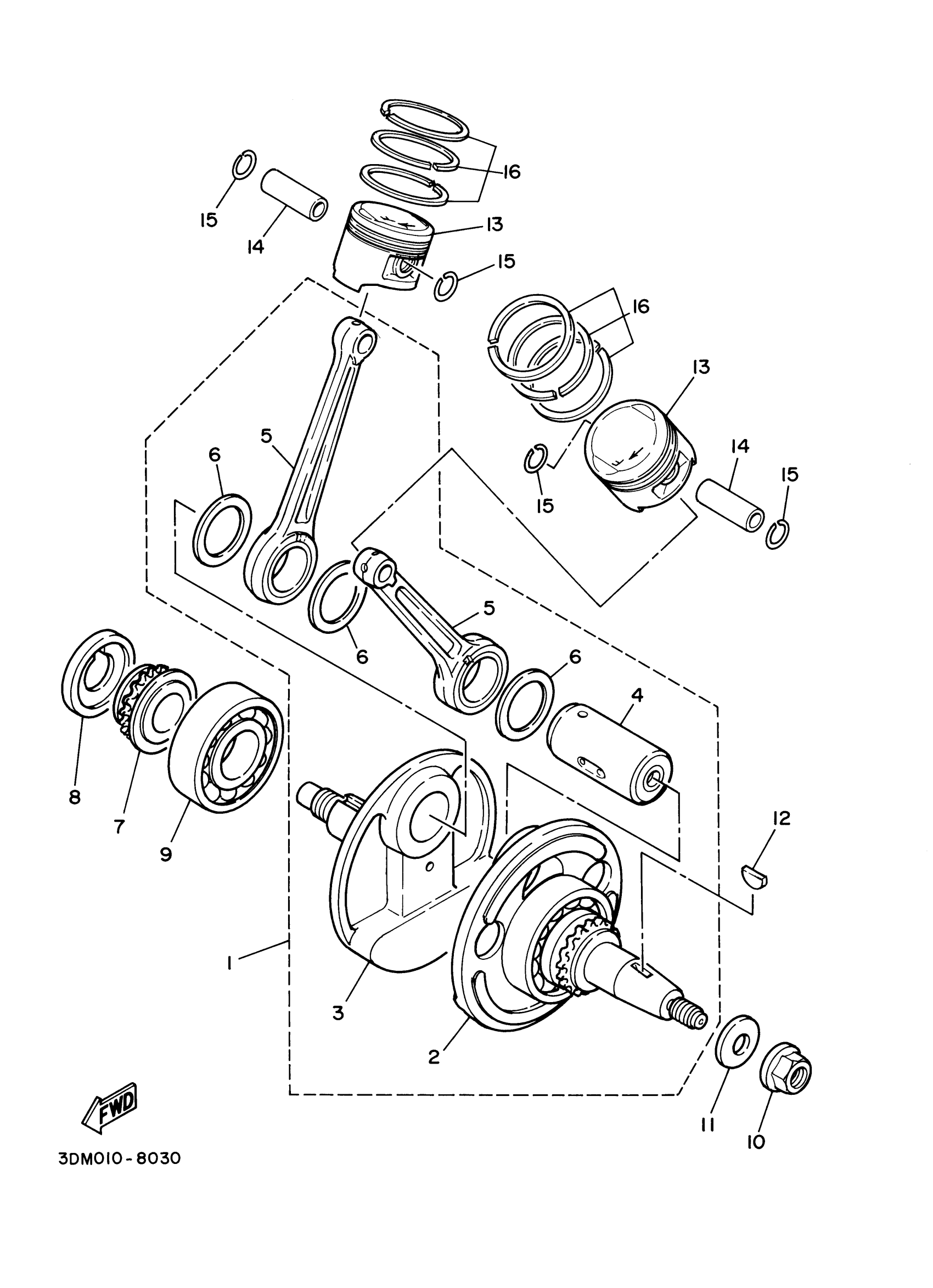

Yamaha XV250VC (VIRAGO 250 CA) 3BGF 2006 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

CRANK 1

CRANK 2

PIN, CRANK 1

ROD, CONNECTING

WASHER(3DM)

SPROCKET, CAM CHAIN 2

COLLAR

BRG,R-B 6306 72MM 351G KY

NUT(3EF)

WASHER (838)

KEY, WOODRUFF

PISTON (STD)

PISTON (0.50MM O/S)

PISTON (1.00MM O/S)

PIN, PISTON

CIRCLIP (22F)

PISTON RING SET (STD)

PISTON RING SET (2ND O/S)

PISTON RING SET (4TH O/S)
