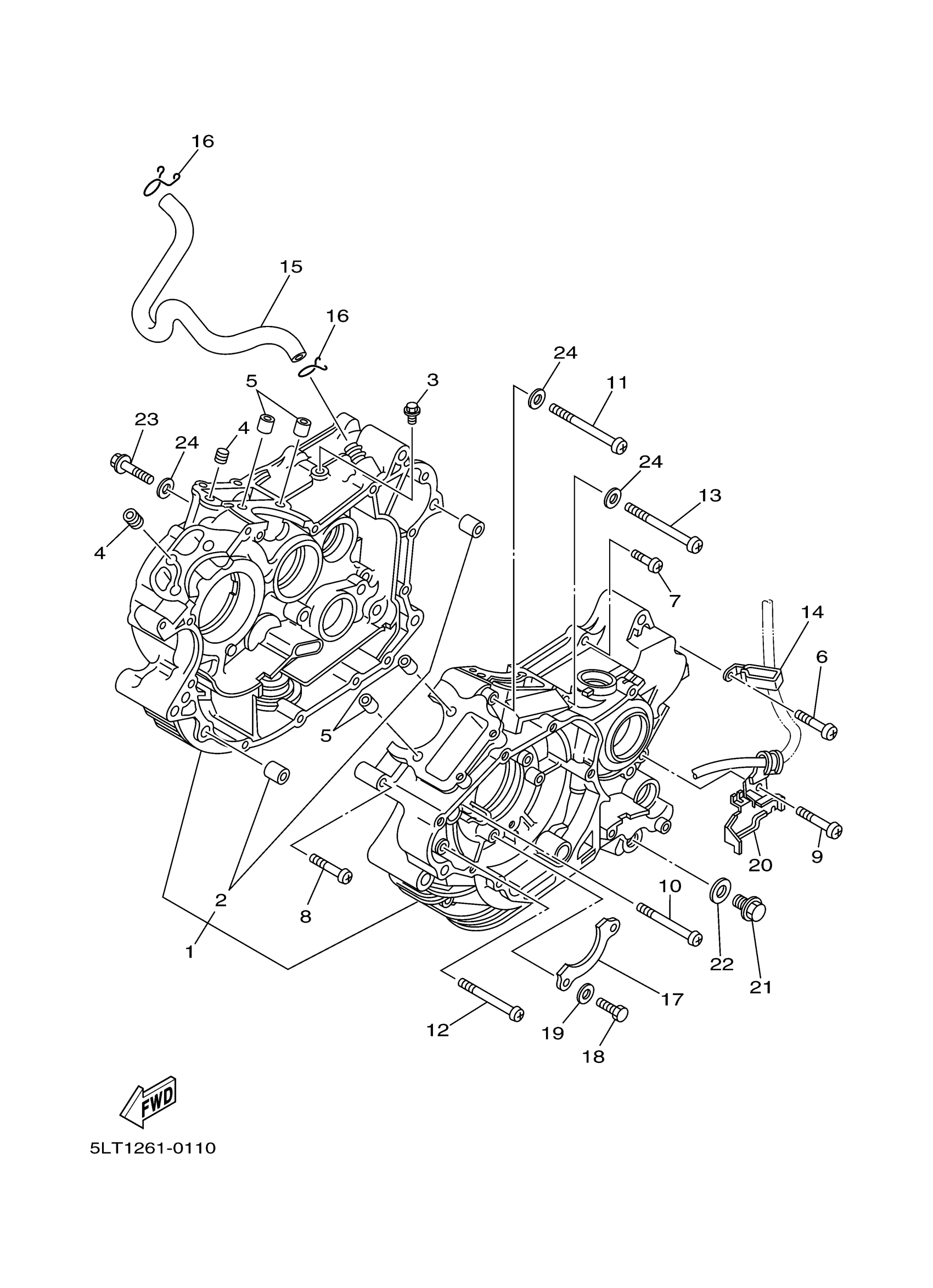

Yamaha XV250VC (VIRAGO 250 CA) 3BGF 2006 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2UJ-15100-03-00
Unavailable
4
NOZZLE 1
2UJ-15138-00-00
Unavailable
6
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
7
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
13
SCREW, PAN HEAD(3DN)
98504-06080-00
Unavailable
14
CLAMP(51Y)
90465-08277-00
Unavailable
15
PIPE, BREATHER 1
2UJ-11166-00-00
Unavailable
16
CLIP (371)
90467-14015-00
Unavailable
17
PLATE
2UJ-12279-00-00
Unavailable
18
BOLT, HEXAGON
97017-06012-00
Unavailable
19
WASHER(6TA)
92907-06600-00
Unavailable
20
CLAMP
90465-08060-00
Unavailable
21
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
22
GASKET
214-11198-01-00
Unavailable
23
SCREW
90153-06029-00
Unavailable
24
GASKET 256113960000
90430-06014-00
Unavailable
