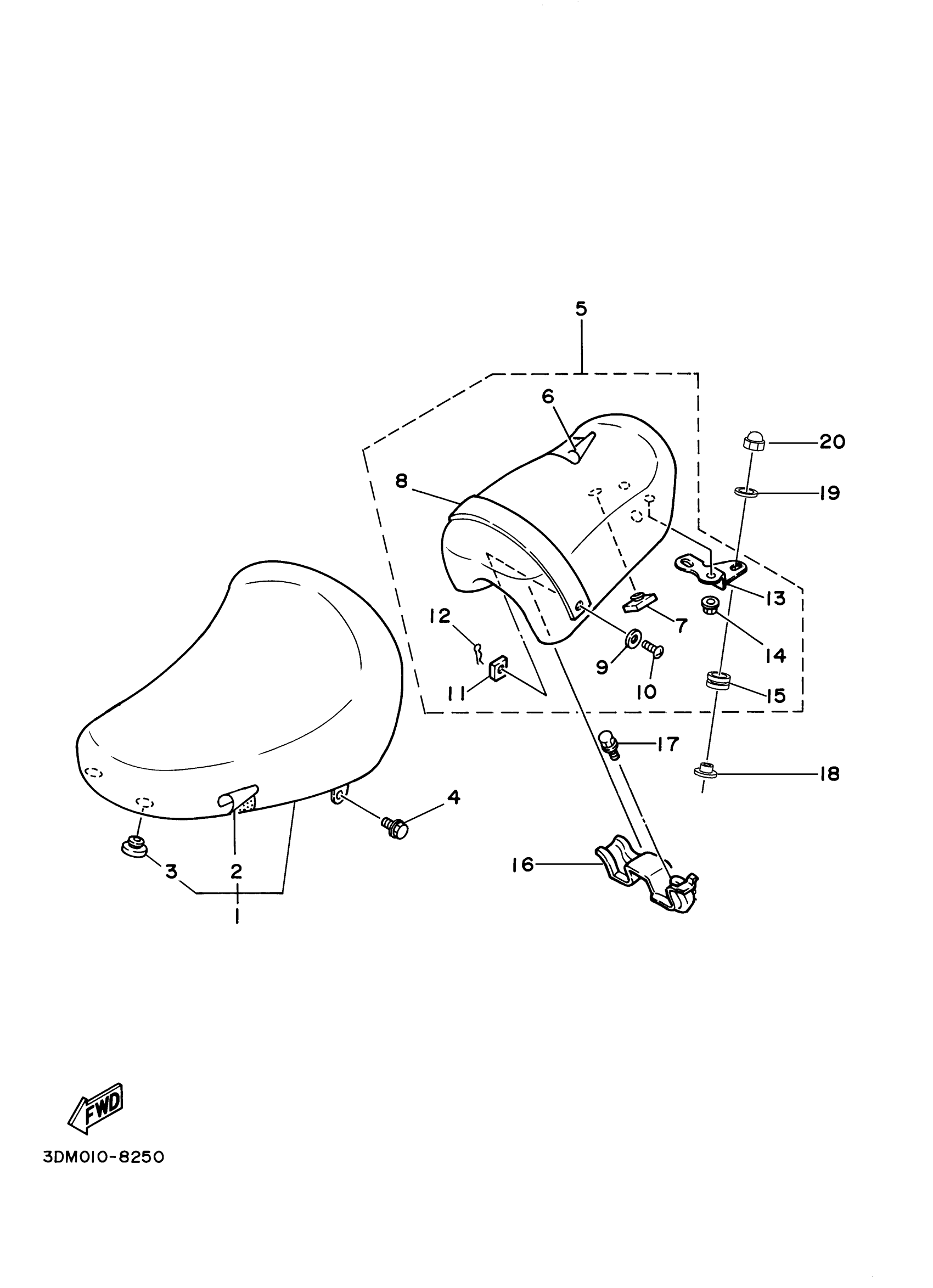

Yamaha XV250UC (ROUTE 66 CA) 1988 SEAT Diagram
#
Description
Price
2
COVER, SEAT
2UJ-24731-01-00
Unavailable
6
COVER, TANDEM SEAT
2UJ-24751-01-00
Unavailable
8
BAND,SEAT
2UJ-24734-00-00
Unavailable
9
. PLATE
1WG-24712-00-00
Unavailable
10
BOLT, SEAT FITTING
47X-24739-00-00
Unavailable
11
NUT, SQUARE(1HV)
90173-06015-00
Unavailable
13
BRACKET, SEAT LEVER 2
2UJ-2475J-00-00
Unavailable
15
. GROMMET
5YS-247420-00-00
Unavailable
16
BRACKET, SEAT LEVER 1
2UJ-2475H-00-00
Unavailable
17
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
18
COLLAR 1
5YS-2471N-00-00
Unavailable
19
WASHER, PLATE
90201-08042-00
Unavailable
20
NUT, CROWN
90176-08001-00
Unavailable
