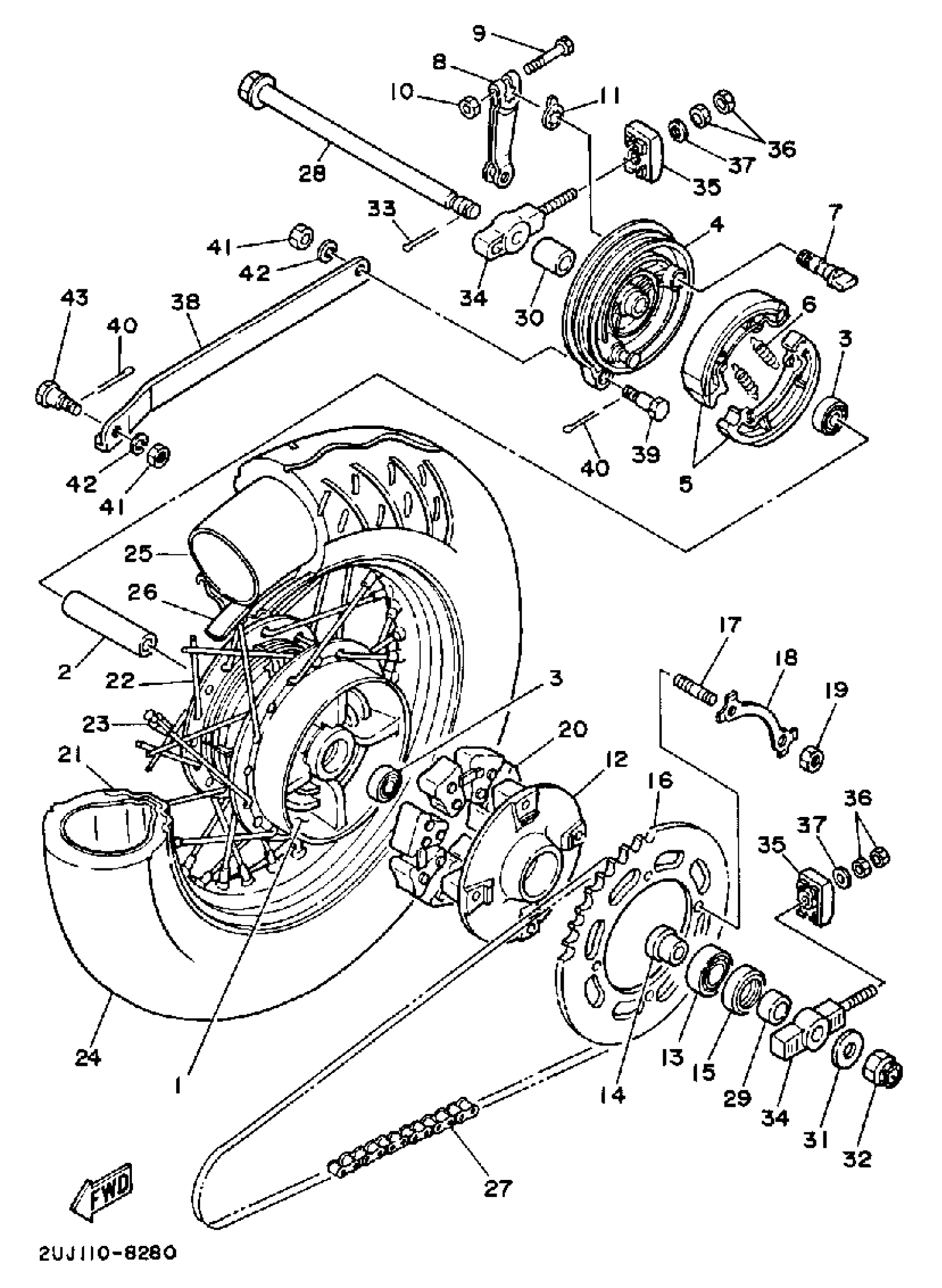

Yamaha XV250UC (ROUTE 66 CA) 1988 REAR WHEEL Diagram

#

Description
Price

1

HUB, REARBLACK

2UJ-25311-00-98

Unavailable

2

SPACER, BEARING

2UJ-25317-00-00

Unavailable

3

BEARING(3DL)

93306-20226-00

$38.99

4

PLATE, BRAKE SHOEBLACK

2RH-25321-00-98

Unavailable

5

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

6

SPRING (5T9)

90506-17328-00

Unavailable

7

CAMSHAFT

2RH-25351-00-00

$34.99

8

LEVER, CAMSHAFT

5H0-25355-00-00

Unavailable

9

BOLT, HEXAGON (538)

90101-06278-00

$2.17

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

PLATE

3Y6-2533A-01-00

$5.49

12

CLUTCH, HUB

5Y1-25366-00-98

Unavailable

13

BEARING(3BC)

93306-30437-00

$66.99

14

COLLAR, WHEEL

2UJ-25377-00-00

$37.99

15

OIL SEAL(3BC)

93106-30029-00

$15.99

16

SPROCKET, DRIVEN (45T)

4DN-25445-30-00

Unavailable

17

BOLT, STUD (4G0)

90116-10348-00

Unavailable

18

WASHER

5Y1-25412-00-00

Unavailable

19

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

20

DAMPER

5Y1-25364-00-00

Unavailable

21

RIM

94427-15476-00

Unavailable

22

SPOKE SET, REAR

2UJ-25304-02-00

Unavailable

23

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

24

TIRE

94113-151W8-00

Unavailable

25

TUBE(3DM)

94213-15265-00

Unavailable

26

BAND, RIM(3DM)

94313-15154-00

Unavailable

27

CHAIN

9Y581-92113-00

Unavailable

28

AXLE, WHEEL

2UJ-25381-00-00

Unavailable

29

COLLAR

90387-15004-00

Unavailable

30

COLLAR(3DM)

90387-153U1-00

Unavailable

31

WASHER, PLAIN

92990-14200-00

Unavailable

32

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

PULLER, CHAIN 1

2UJ-25388-00-00

Unavailable

35

PLATE 1

55K-2539F-00-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

BAR, TENSION

(2UJ-25371-00-00)

Unavailable

39

BOLT 1092537300

90109-08063-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

. NUT

95380-08700-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

BOLT (183-25378-00)

90109-08368-00

Unavailable
