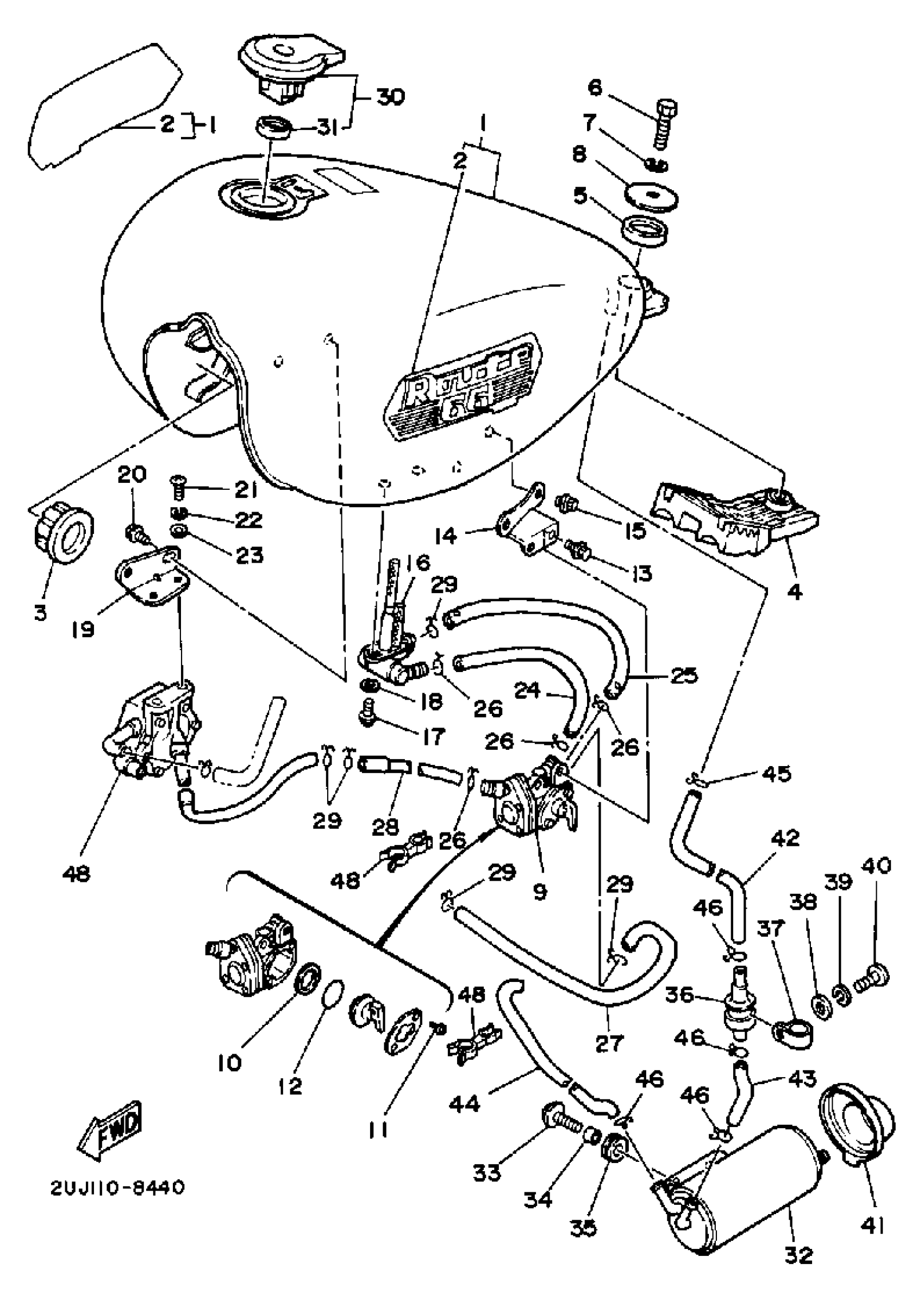

Yamaha XV250UC (ROUTE 66 CA) 1988 FUEL TANK CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

FUEL TANK

3BG-24110-00-03

Unavailable

1

FUEL TANK

3BG-24110-00-04

Unavailable

2

. EMBLEM 1

2UJ-24161-00-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

(2UJ-24182-00-00)

Unavailable

5

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

6

BOLT

97013-08035-00

$5.60

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

WASHER, PLATE (521)

90201-08569-00

$7.49

9

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

10

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

SEAL, COCK

1JK-24534-00-00

$8.99

13

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

14

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

15

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

16

FILTER ASSY

2UJ-24560-10-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

20

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

21

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

HOSE (L400)

90445-116K9-00

Unavailable

25

HOSE (L400)

90445-116K9-00

Unavailable

26

CLIP

90467-100A1-00

Unavailable

27

PIPE 2

2UJ-24312-01-00

Unavailable

28

PIPE 3

(2UJ-24313-00-00)

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

CAP ASSY

20K-24602-10-00

Unavailable

31

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

32

CANISTER ASSEMBLY

(3BG-24170-00-00)

Unavailable

33

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

34

COLLAR(4DN)

90387-0600V-00

Unavailable

35

GROMMET (16R)

90480-14329-00

Unavailable

36

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

37

CLAMP

90464-15014-00

Unavailable

38

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

39

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

40

WASHER, PLAIN (646)

92990-05600-00

Unavailable

41

COVER, CANISTER

(2JU-2419E-00-00)

Unavailable

42

PIPE 10

3BG-24321-01-00

Unavailable

43

PIPE 11

3BG-24322-01-00

Unavailable

44

PIPE 12

3BG-24323-00-00

Unavailable

45

CLIP

90467-090A2-00

Unavailable

46

CLIP

90467-100A1-00

Unavailable

47

CLAMP

(90464-16119-00)

Unavailable

48

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
