Description

Price

1

HUB, FRONTBLACK

2UJ-25111-00-98

Unavailable

2

SPACER (1L9)

90560-15161-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X42X7)

93102-22014-00

$12.49

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL (45X56X6)

93105-45017-00

$14.99

9

SPOKE SET, FRONT

2UJ-25104-01-00

Unavailable

10

RIM 1.60

94416-18459-00

Unavailable

11

BALANCER, WHEEL

3HT-25398-00-00

$7.99

12

TIRE

94130-184T4-00

Unavailable

13

TUBE (5H5)

94227-18195-00

$35.99

14

UNAVAILABLE IN PRICE BOOK (3.00-18)

94345-18181-00

Unavailable

15

GEAR UNIT ASSY

3M5-25190-10-00

Unavailable

16

AXLE, WHEEL

10W-25381-00-00

Unavailable

17

COLLAR (1L9)

90387-15550-00

Unavailable

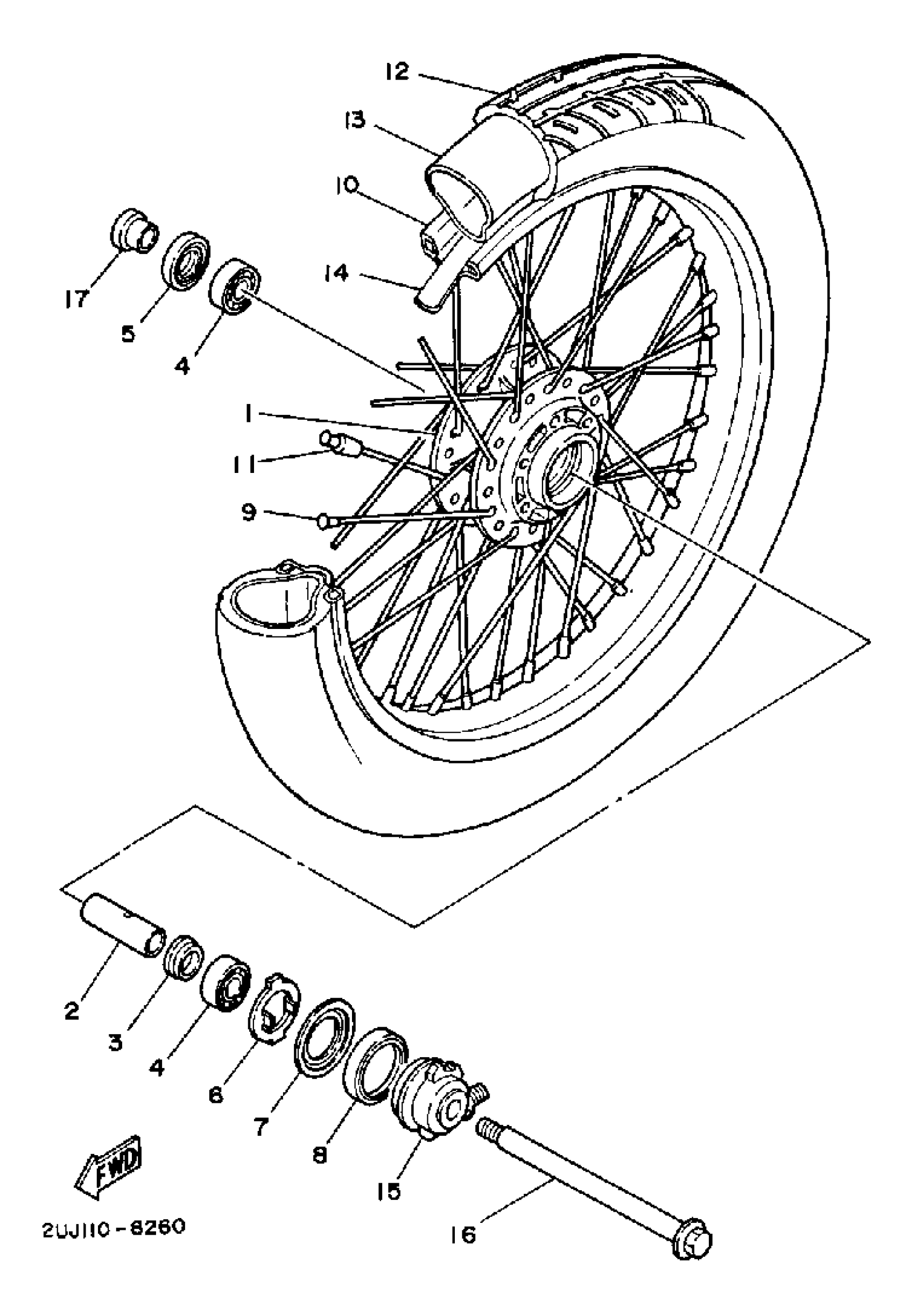

Yamaha XV250UC (ROUTE 66 CA) 1988 FRONT WHEEL Diagram

HUB, FRONTBLACK

SPACER (1L9)

FLANGE, SPACER

BEARING

OIL SEAL (22X42X7)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL (45X56X6)

SPOKE SET, FRONT

RIM 1.60

BALANCER, WHEEL

TIRE

TUBE (5H5)

UNAVAILABLE IN PRICE BOOK (3.00-18)

GEAR UNIT ASSY

AXLE, WHEEL

COLLAR (1L9)
