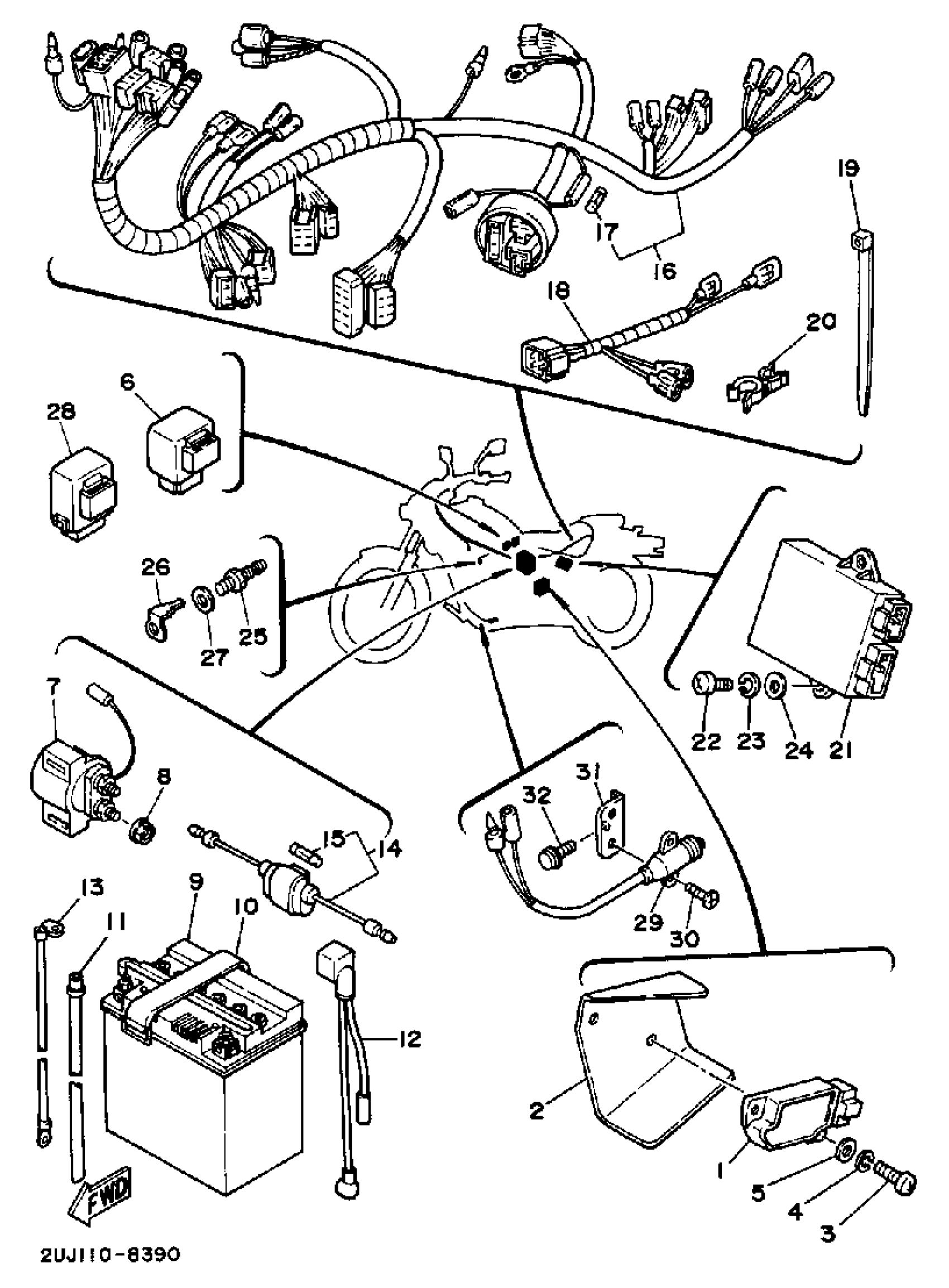

Yamaha XV250UC (ROUTE 66 CA) 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

47X-81960-A3-00

Unavailable

2

PLATE, RECTIFIER FITTING

2UJ-81975-00-00

Unavailable

3

SCREW PAN HEAD

98580-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

RELAY ASSY

2UJ-81950-02-00

$65.99

7

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

8

NUT, FLANGE(7NB)

95780-06500-00

$2.60

9

YB10LA2 YUASA BATTERY

YB1-0LA20-00-00

Unavailable

10

BAND, BATTERY

118-82131-00-00

$22.99

11

HOSE

90445-08719-00

Unavailable

12

WIRE, PLUS LEAD

2UJ-82115-01-00

Unavailable

13

WIRE, MINUS LEAD

2UJ-82116-00-00

$12.99

14

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

15

FUSE

1A0-82161-00-00

$7.99

16

WIRE,HARNESS

2UJ-82590-01-00

Unavailable

16

WIRE HARNESS ASSEMBLY

(3BG-82590-00-00)

Unavailable

17

FUSE (10A)

1E6-82151-00-00

Unavailable

18

WIRE, SUB LEAD

2UJ-82509-01-00

Unavailable

19

CLAMP

(90464-13080-00)

Unavailable

20

CLAMP

(90464-16119-00)

Unavailable

21

IGNITOR UNIT ASSY

2UJ-82305-00-00

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

$2.80

25

HEATER ASSYMODEL ONLY

3BG-83790-00-00

Unavailable

25

HEATER ASSY (14V-20W)

3DM-83790-00-00

Unavailable

26

TERMINAL 1

(1AJ-82103-00-00)

Unavailable

27

WASHER, PLATE

90201-08016-00

Unavailable

28

FLASHER RELAY ASSY

2UJ-83350-01-00

Unavailable

29

SWICH, SIDE STAND

5Y1-82566-00-00

Unavailable

30

SCREW, FLAT

98707-05016-00

Unavailable

31

PANEL, SWITCH

2UJ-82565-00-00

Unavailable

32

BOLT, FLANGE

95817-06010-00

Unavailable
