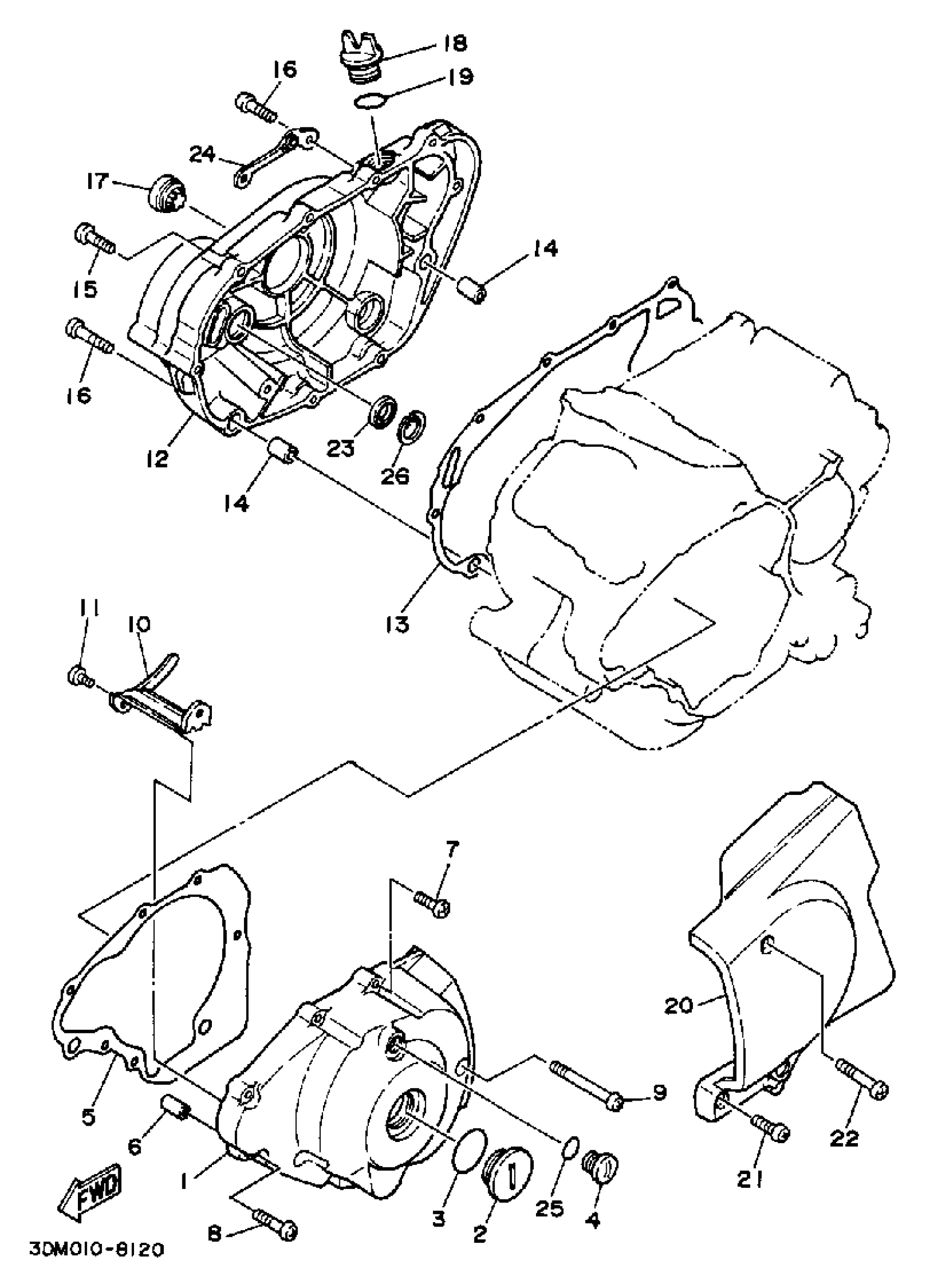

Yamaha XV250UC (ROUTE 66 CA) 1988 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2UJ-15411-01-00

Unavailable

2

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

5

GASKET, CRANKCASE COVER 1

4RF-15451-01-00

$15.49

6

PIN, DOWEL

99530-12016-00

$4.89

7

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

8

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

9

SCREW PAN HEAD

98580-06570-00

$18.99

10

CLAMP

(90465-06322-00)

Unavailable

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

COVER, CRANKCASE 2

2UJ-15421-00-00

Unavailable

13

GASKET, CRANKCASE COVER 2

4RF-15461-01-00

$25.99

14

PIN, DOWEL

99530-12016-00

$4.89

15

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

16

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

17

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

18

PLUG, OIL

3Y1-15363-10-00

Unavailable

19

O-RING (646)

93210-19123-00

Unavailable

20

COVER, CRANKCASE 3

2UJ-15431-02-00

Unavailable

21

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

22

SCREW PAN HEAD

98580-06550-00

Unavailable

23

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

24

HOLDER, CLUTCH CABLE

2UJ-15441-00-00

Unavailable

25

O-RING (2H9)

93210-14369-00

Unavailable

26

CIRCLIP

99009-25500-00

Unavailable
