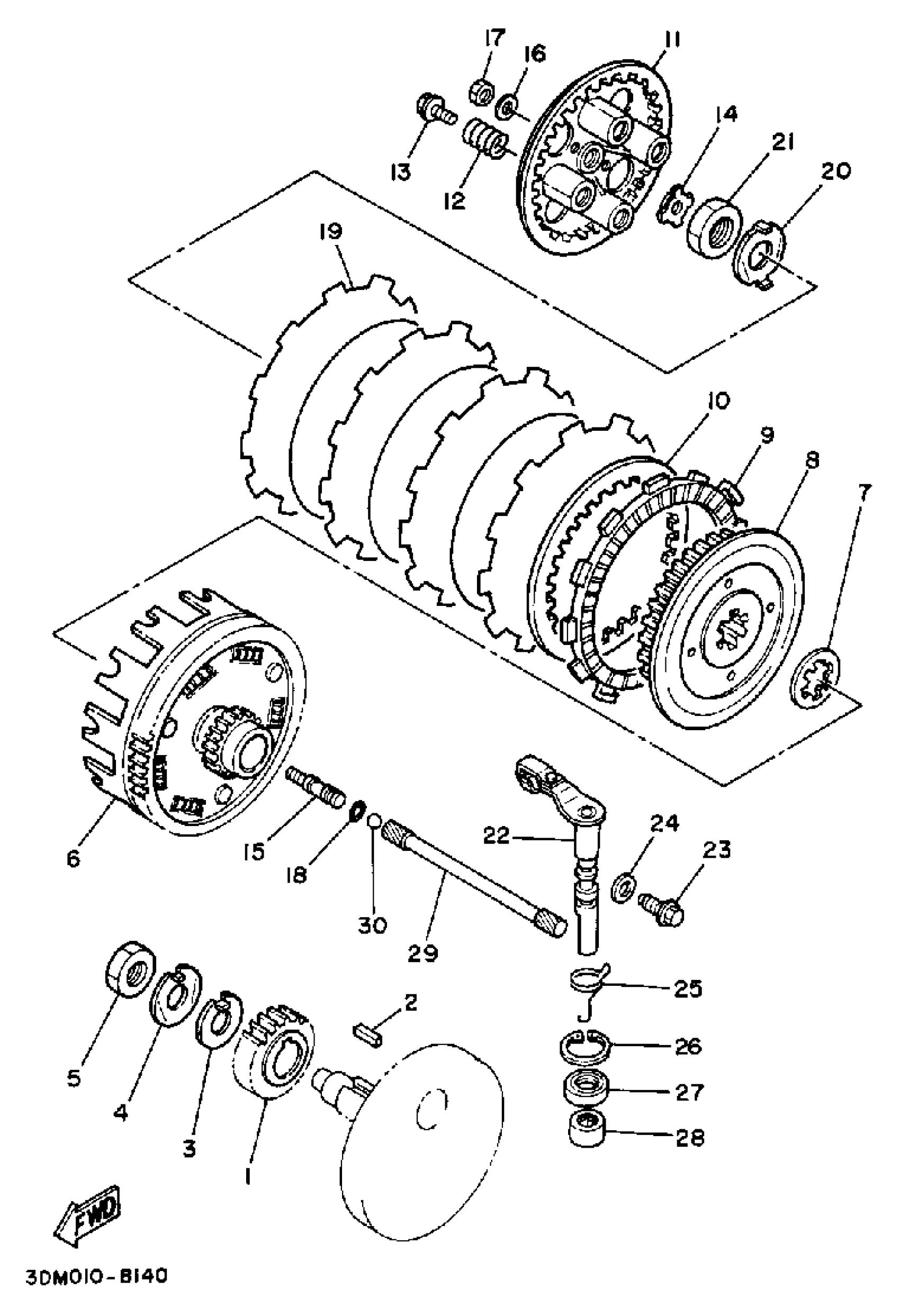

Yamaha XV250UC (ROUTE 66 CA) 1988 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

(3Y6-16111-03-00)

Unavailable

2

KEY, STRAIGHT (584)

90282-07023-00

$9.49

3

WASHER, LOCK (3Y1)

90215-16156-00

$7.49

4

WASHER, LOCK (30X)

90215-16222-00

$9.49

5

NUT(24V)

90170-16343-00

$14.99

6

PRI DRVN GEAR

(2UJ-16150-00-00)

Unavailable

7

PLATE, THRUST 1

30X-16154-00-00

$25.99

8

BOSS, CLUTCH

30X-16371-00-00

Unavailable

9

PLATE, FRICTION

5Y1-16331-01-00

$29.99

10

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

11

PLATE, PRESSURE 1

30X-16351-02-00

$80.99

12

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

13

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

14

PLATE, PUSH

1W1-16358-01-00

$23.99

15

ROD, PUSH 1

30X-16356-00-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

O-RING (26H)

93210-06632-00

Unavailable

19

PLATE, FRICTION

4H7-16321-02-00

Unavailable

20

WASHER, LOCK (30X)

90215-16320-00

Unavailable

21

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

22

PUSH LEVER ASSEMBLY

(2UJ-16380-00-00)

Unavailable

23

SCREW 425163430000

90149-08067-00

Unavailable

24

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

25

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

26

CIRCLIP (3Y1)

93420-28055-00

Unavailable

27

OIL SEAL (3Y1)

93102-14209-00

Unavailable

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

29

ROD, PUSH 2

2UJ-16357-00-00

Unavailable

30

BALL (498)

93511-32027-00

Unavailable
