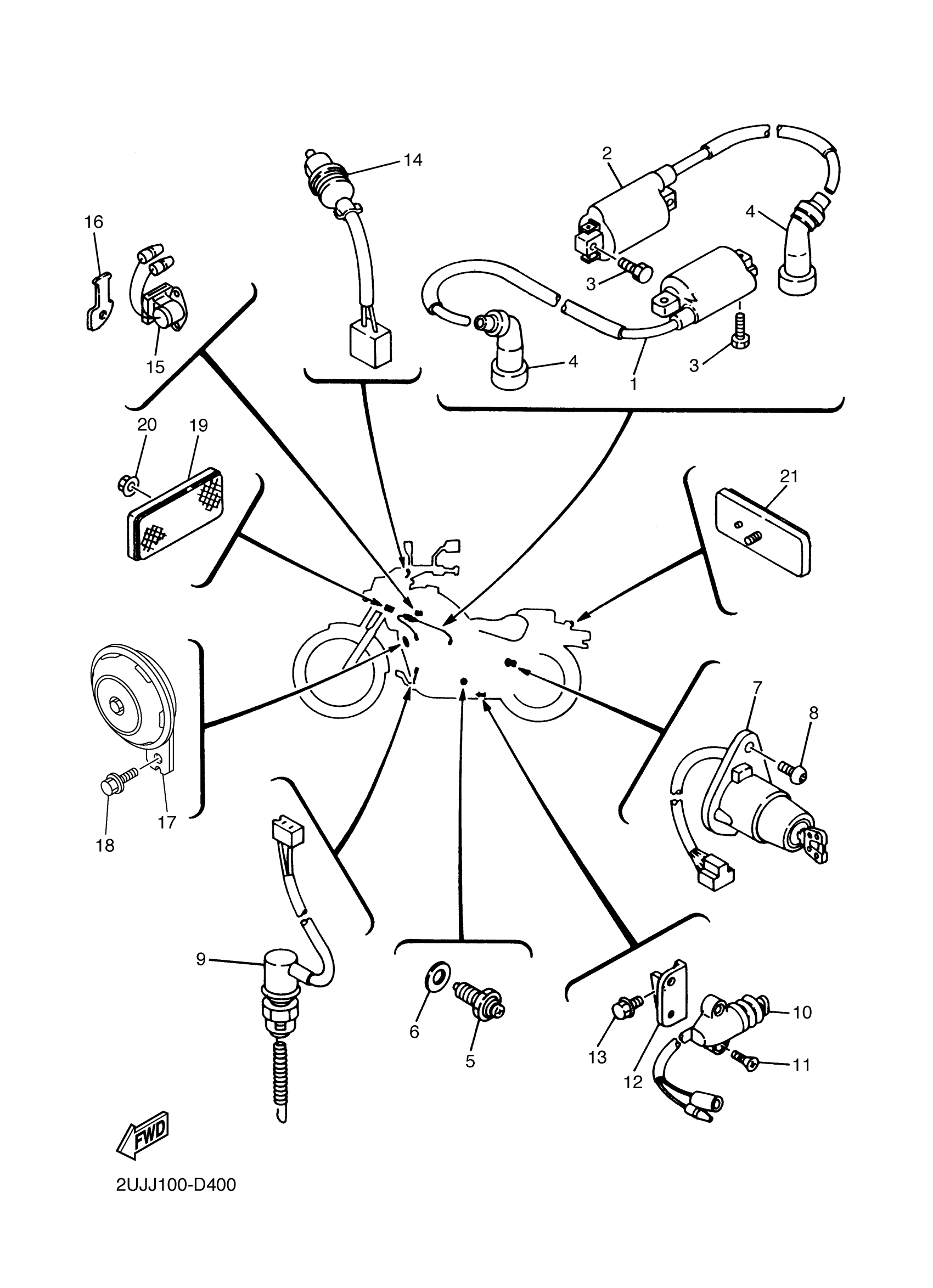

Yamaha XV250TC (VIRAGO 250 CA) 3BGE 2005 ELECTRICAL 2 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

2

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

3

BOLT(3JK)

97027-05020-00

$3.29

4

PLUG CAP ASSY

3NS-82370-00-00

$37.99

5

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

MAIN SWITCH ASSY

2UJ-82510-00-00

Unavailable

8

SCREW(1KT)

90149-06228-00

$9.49

9

STOP SWITCH ASSY

3XV-82530-01-00

Unavailable

10

SWITCH, SIDE STAND

3LD-82566-61-00

$51.99

11

SCREW, PAN HEAD

98507-05014-00

$8.49

12

PANEL, SWITCH

2UJ-82565-00-00

Unavailable

13

BOLT, FLANGE

95817-06010-00

$4.73

14

FRONT STOP SWITCH ASSY

2UJ-83980-00-00

$43.99

15

THERMO SWITCH ASSY

5FU-82560-20-00

$30.99

16

PANEL, SWITCH

3BG-82571-00-00

Unavailable

16

PANEL, SWITCH

3DM-82571-00-00

Unavailable

17

HORN

1HX-83371-11-00

Unavailable

18

BOLT, FLANGE

95817-06010-00

$4.73

19

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

20

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

21

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable
