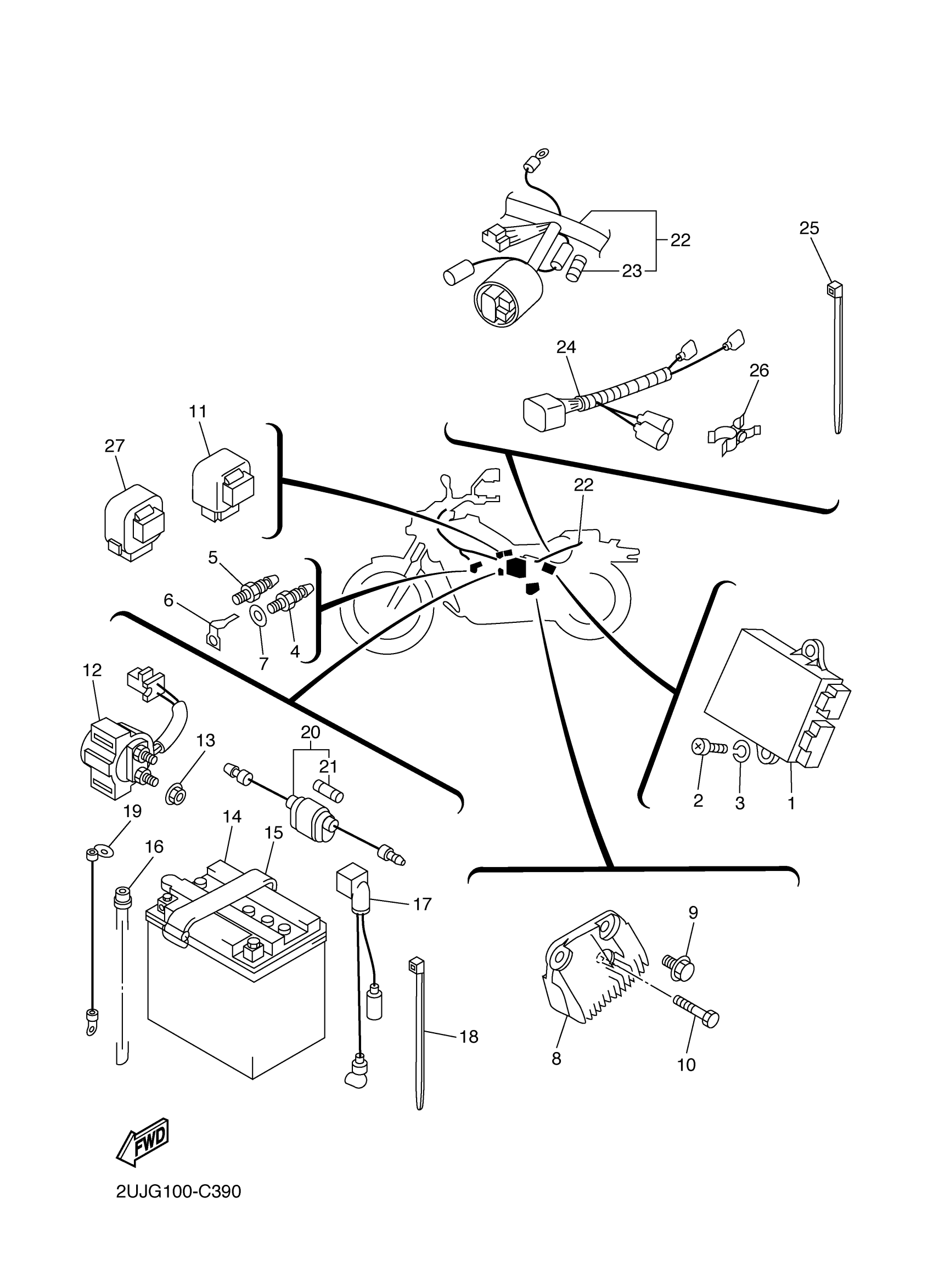

Yamaha XV250TC (VIRAGO 250 CA) 3BGE 2005 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

2UJ-82305-00-00

$379.99

2

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

3

WASHER, SPRING

92907-06100-00

$4.25

4

HEATER ASSY

5FU-83790-00-00

Unavailable

4

HEATER ASSY

5FU-83790-20-00

$49.99

5

HEATER ASSY

5FU-83790-20-00

$49.99

6

TERMINAL 1

5FU-82103-00-00

$7.99

7

WASHER, PLATE

90201-08016-00

$8.49

8

RECTIFIER & REGULATOR ASSY

3DM-81960-01-00

$255.99

9

BOLT, WITH WASHER

90119-06242-00

$7.49

10

BOLT, HEXAGON

97017-06030-00

$3.61

11

RELAY ASSY

2UJ-81950-02-00

$65.99

12

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

13

NUT, FLANGE(4MV)

95707-06500-00

$1.23

14

YB10LA2 YUASA BATTERY

YB1-0LA20-00-00

Unavailable

15

BAND, BATTERY

118-82131-00-00

Unavailable

16

HOSE

90445-08719-00

Unavailable

17

WIRE, PLUS LEAD

2UJ-82115-01-00

Unavailable

18

CLAMP

5Y9-12491-00-00

Unavailable

19

WIRE, MINUS LEAD

2UJ-82116-00-00

Unavailable

20

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

21

FUSE

1A0-82161-00-00

Unavailable

22

WIRE HARNESS ASSY

2UJ-82590-10-00

Unavailable

22

WIRE HARNESS ASSY

3BG-82590-20-00

Unavailable

23

FUSE (10A)

1E6-82151-00-00

Unavailable

24

WIRE, SUB LEAD

2UJ-82509-01-00

Unavailable

25

CLAMP

5Y9-12491-00-00

Unavailable

26

CLAMP(3BG)

90464-16119-00

Unavailable

27

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable
