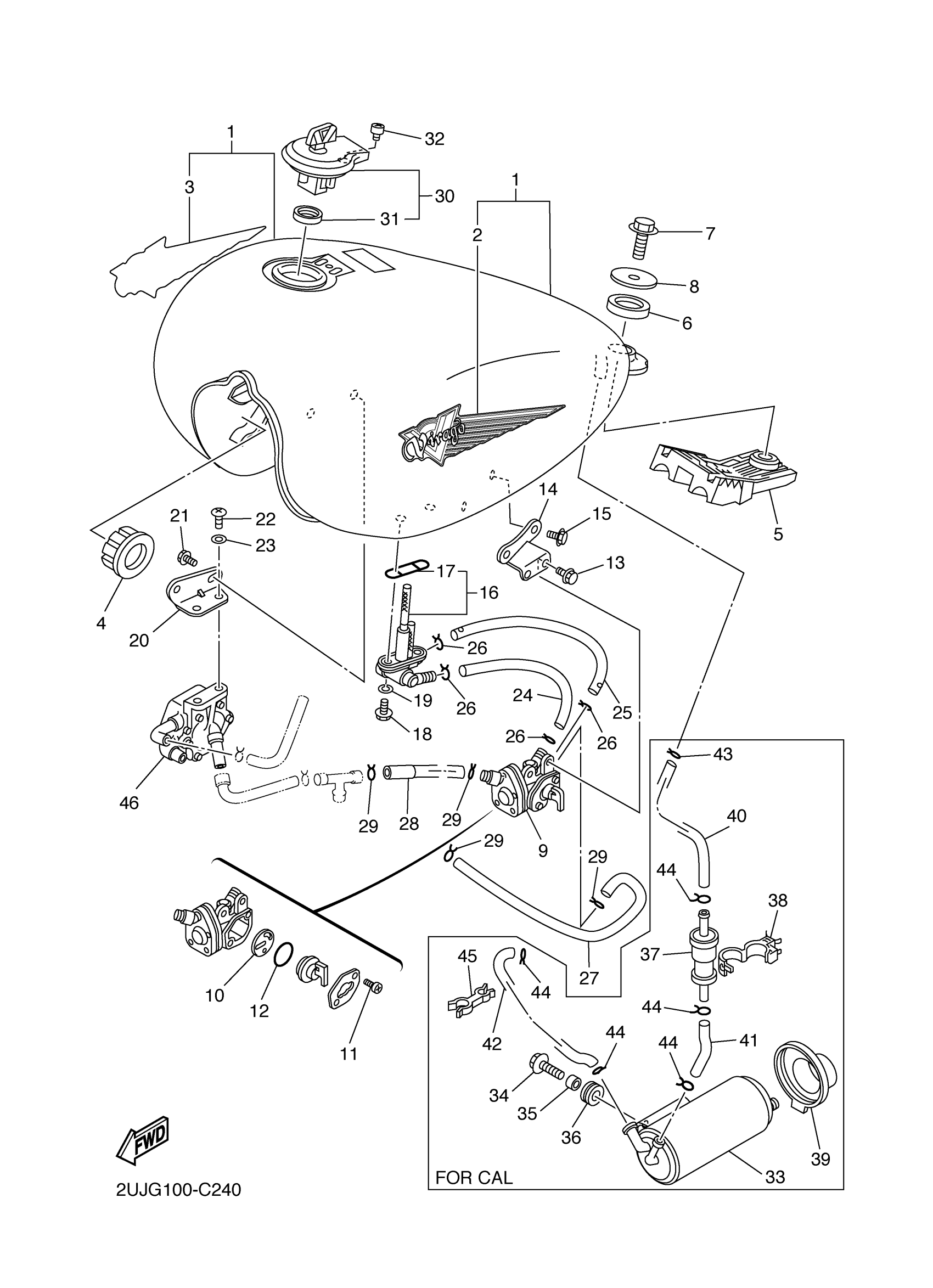

Yamaha XV250SC (VIRAGO 250 CA) 3BGD 2004 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (BLACK METALLIC X)

3BG-Y2410-02-04

Unavailable

1

FUEL TANK COMP.

3LS-Y2410-T3-08

Unavailable

2

EMBLEM 1

3LW-24161-20-00

Unavailable

3

EMBLEM 2

3LW-24162-20-00

Unavailable

4

DAMPER, LOCATING

4H7-24181-00-00

$6.99

5

DAMPER, LOCATING 2

2UJ-24182-00-00

Unavailable

6

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

7

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

8

WASHER, PLATE (521)

90201-08569-00

$7.49

9

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

10

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

SEAL, COCK

1JK-24534-00-00

$8.99

13

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

14

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

15

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

16

FILTER ASSY

2UJ-24560-10-00

Unavailable

17

O-RING

4X8-24512-00-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

21

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

22

SCREW, PAN

98517-06012-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

HOSE (L400)

90445-116K9-00

Unavailable

25

HOSE (L400)

90445-116K9-00

Unavailable

26

CLIP

90467-100A1-00

Unavailable

27

PIPE 2

2UJ-24312-01-00

Unavailable

28

PIPE 3

2UJ-24313-00-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

CAP ASSY

20K-24602-10-00

Unavailable

30

CAP ASSY

4X7-24602-10-00

Unavailable

31

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

32

BOLT, SOCKET

91317-05010-00

Unavailable

33

CANISTER ASSY

3BG-24170-00-00

Unavailable

34

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

35

COLLAR(4DN)

90387-0600V-00

Unavailable

36

GROMMET (16R)

90480-14329-00

Unavailable

37

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

38

CLAMP(4HM)

90464-15192-00

Unavailable

39

COVER, CANISTER

2JU-2419E-00-00

Unavailable

40

PIPE 10

3BG-24321-02-00

Unavailable

41

PIPE 11

3BG-24322-01-00

Unavailable

42

PIPE 12

3BG-24323-00-00

Unavailable

43

CLIP

90467-090A2-00

Unavailable

44

CLIP

90467-100A1-00

Unavailable

45

CLAMP(3BG)

90464-16119-00

Unavailable

46

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
