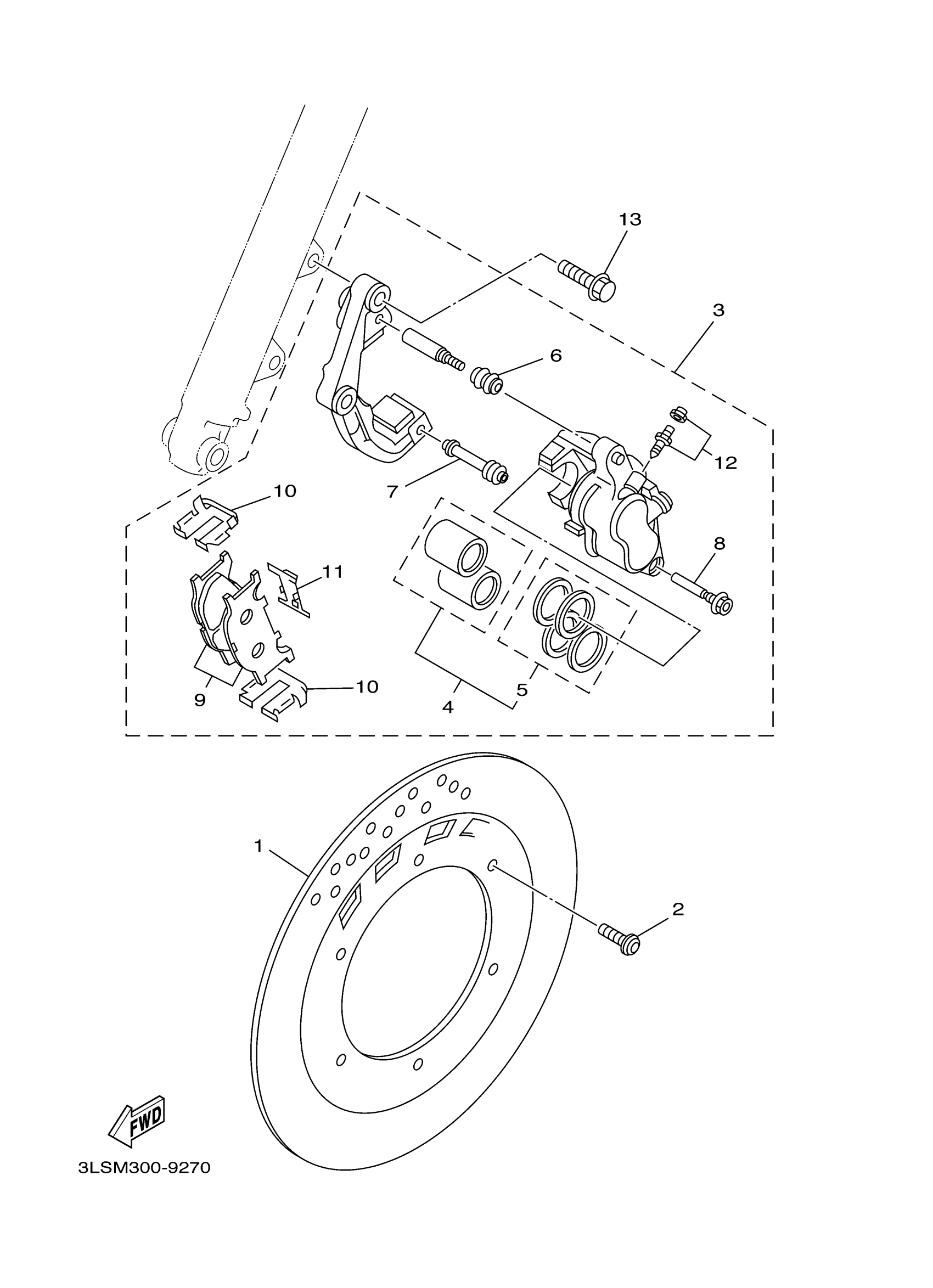

Yamaha XV250SC (VIRAGO 250 CA) 3BGD 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

3LP-2582T-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

3

CALIPER ASSY (LEFT)

4HM-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4HC-W0057-50-00

Unavailable

5

CALIPER SEAL KIT

4HC-25803-50-00

$51.55

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

3YX-25937-00-00

Unavailable

8

PIN, LOCK

3YX-25926-00-00

Unavailable

9

BRAKE PAD KIT

4HM-W0045-00-00

$40.00

10

SUPPORT, PAD

4BP-25919-00-00

$27.53

11

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

12

BLEED SCREW KIT

15B-W0048-00-00

$16.89

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
