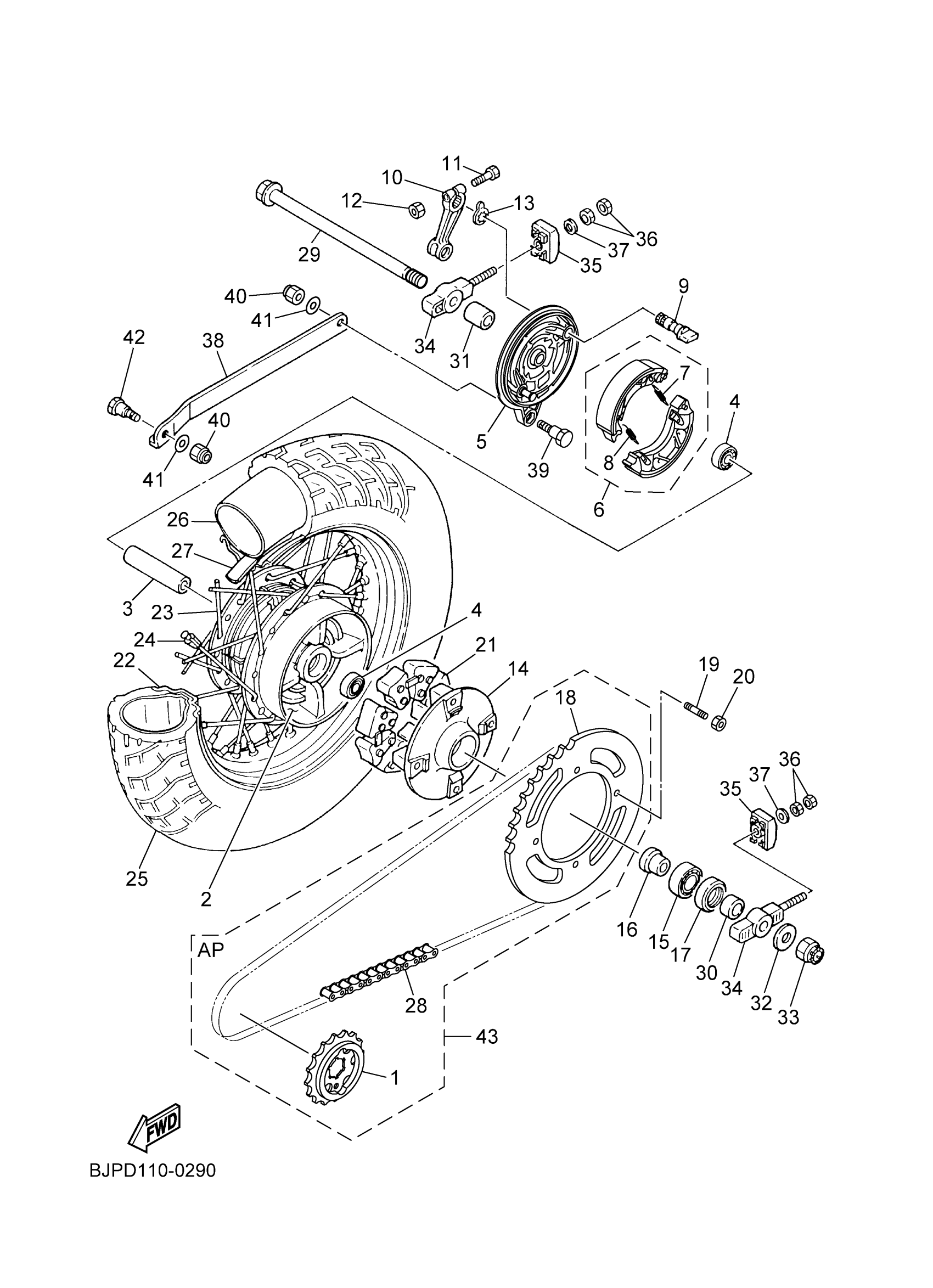

Yamaha XV250S1CB (VSTAR 250 CA) BJPE 2025 REAR WHEEL Diagram

SPROCKET,DRIVE 16T(3Y11746160)

93834-16100-00

$19.99

HUB, REAR

2UJ-25311-10-00

Unavailable

SPACER, BEARING

2UJ-25317-00-00

Unavailable

BEARING(3DL)

93306-20226-00

$38.99

PLATE, BRAKE SHOE

2RH-25321-11-00

Unavailable

BRAKE SHOE KIT

19D-W253E-00-00

$49.99

SPRING, TENSION

90506-12001-00

$9.49

SPRING, TENSION

90506-15001-00

$9.49

CAMSHAFT

2RH-25351-00-00

$34.99

LEVER, CAMSHAFT

5H0-25355-00-00

Unavailable

BOLT, HEXAGON (538)

90101-06278-00

$2.17

NUT, HEXAGON

95314-06600-00

$2.34

PLATE

3Y6-2533A-01-00

$5.49

CLUTCH, HUB

5Y1-25366-10-00

Unavailable

BEARING(3BC)

93306-30437-00

$66.99

COLLAR, WHEEL

2UJ-25377-00-00

Unavailable

OIL SEAL(3BC)

93106-30029-00

Unavailable

SPROCKET, DRIVEN (45T)

4DN-25445-30-00

Unavailable

BOLT, STUD(1TX)

90116-10485-00

Unavailable

NUT, SELF-LOCKING

90185-10170-00

Unavailable

DAMPER

5Y1-25364-00-00

Unavailable

RIM

94427-15600-00

Unavailable

SPOKE SET, REAR

2UJ-25304-02-00

Unavailable

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

TIRE

94113-151W8-00

Unavailable

TUBE (130/90-15 TR4)

94213-15003-00

Unavailable

BAND, RIM(3DM)

94313-15154-00

Unavailable

CHAIN

9Y581-92113-00

Unavailable

AXLE, WHEEL

2UJ-25381-00-00

Unavailable

COLLAR

90387-15004-00

Unavailable

COLLAR(3DM)

90387-153U1-00

Unavailable

WASHER, PLAIN

92990-14200-00

Unavailable

NUT, SELF-LOCKING

90185-14002-00

Unavailable

PULLER, CHAIN 1

2UJ-25388-00-00

Unavailable

PLATE 1

55K-2539F-00-00

Unavailable

NUT(2UJ)

95304-08600-00

Unavailable

.. WASHER, PLATE

92990-08600-00

Unavailable

BAR, TENSION

2UJ-25371-00-00

Unavailable

BOLT

90109-08005-00

Unavailable

NUT, U

95617-08100-00

Unavailable

WASHER(6TA)

92907-08600-00

Unavailable

BOLT

90109-08003-00

Unavailable

CHAIN & SPROCKET KIT

BJP-W001A-00-00

Unavailable
