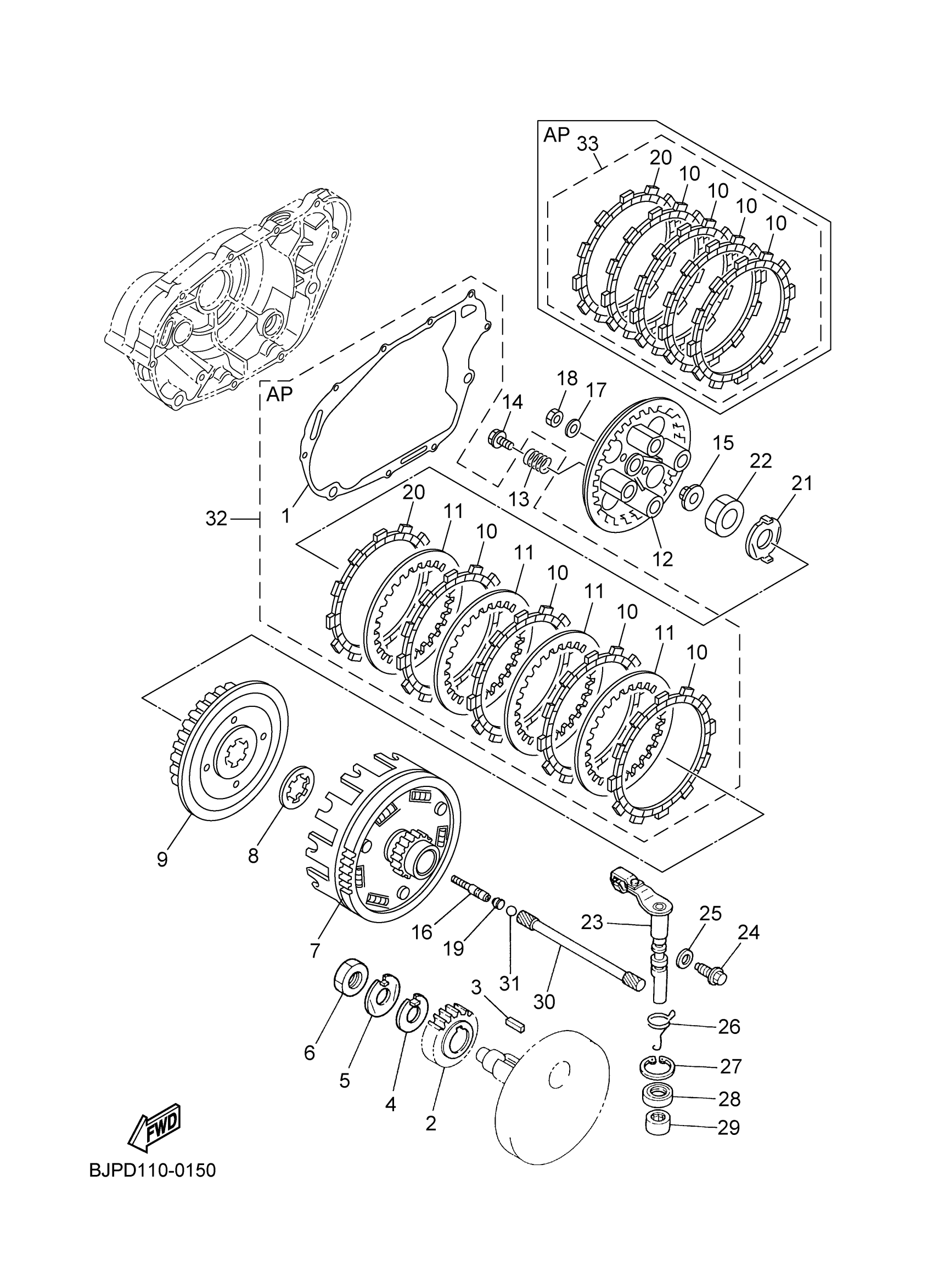

Yamaha XV250S1CB (VSTAR 250 CA) BJPE 2025 CLUTCH Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 2

4RF-15461-01-00

$25.99

2

GEAR, PRIMARY DRIVE

3Y6-16111-03-00

Unavailable

3

KEY, STRAIGHT (584)

90282-07023-00

$9.49

4

WASHER, LOCK (3Y1)

90215-16156-00

$7.49

5

WASHER, LOCK (30X)

90215-16222-00

$9.49

6

NUT(24V)

90170-16343-00

$14.99

7

PRIMARY DRIVEN GEAR COMP.

2UJ-16150-00-00

$328.99

8

PLATE, THRUST 1

30X-16154-00-00

$25.99

9

BOSS, CLUTCH

30X-16371-00-00

Unavailable

10

PLATE, FRICTION

5Y1-16331-01-00

$29.99

11

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

12

PLATE, PRESSURE 1

30X-16351-02-00

$80.99

13

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

14

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

15

PLATE, PUSH

1W1-16358-01-00

$23.99

16

ROD, PUSH 1

4DN-16356-00-00

Unavailable

17

WASHER(6TA)

92907-06200-00

Unavailable

18

NUT(6TA)

95317-06600-00

Unavailable

19

SEAL, ROD PUSH

3YX-1635A-00-00

Unavailable

20

PLATE, FRICTION

4H7-16321-02-00

Unavailable

21

WASHER, LOCK (30X)

90215-16320-00

Unavailable

22

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

23

PUSH LEVER ASSY

2UJ-16380-00-00

Unavailable

24

SCREW 425163430000

90149-08067-00

Unavailable

25

GASKET

90430-08119-00

Unavailable

26

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

27

CIRCLIP (3Y1)

93420-28055-00

Unavailable

28

OIL SEAL (3Y1)

93102-14209-00

Unavailable

29

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

30

ROD, PUSH 2

2UJ-16357-00-00

Unavailable

31

BALL (498)

93511-32027-00

Unavailable

32

CLUTCH PLATE KIT

BJP-W001G-10-00

Unavailable

33

FRICTION PLATE KIT

BJP-W001M-00-00

Unavailable
