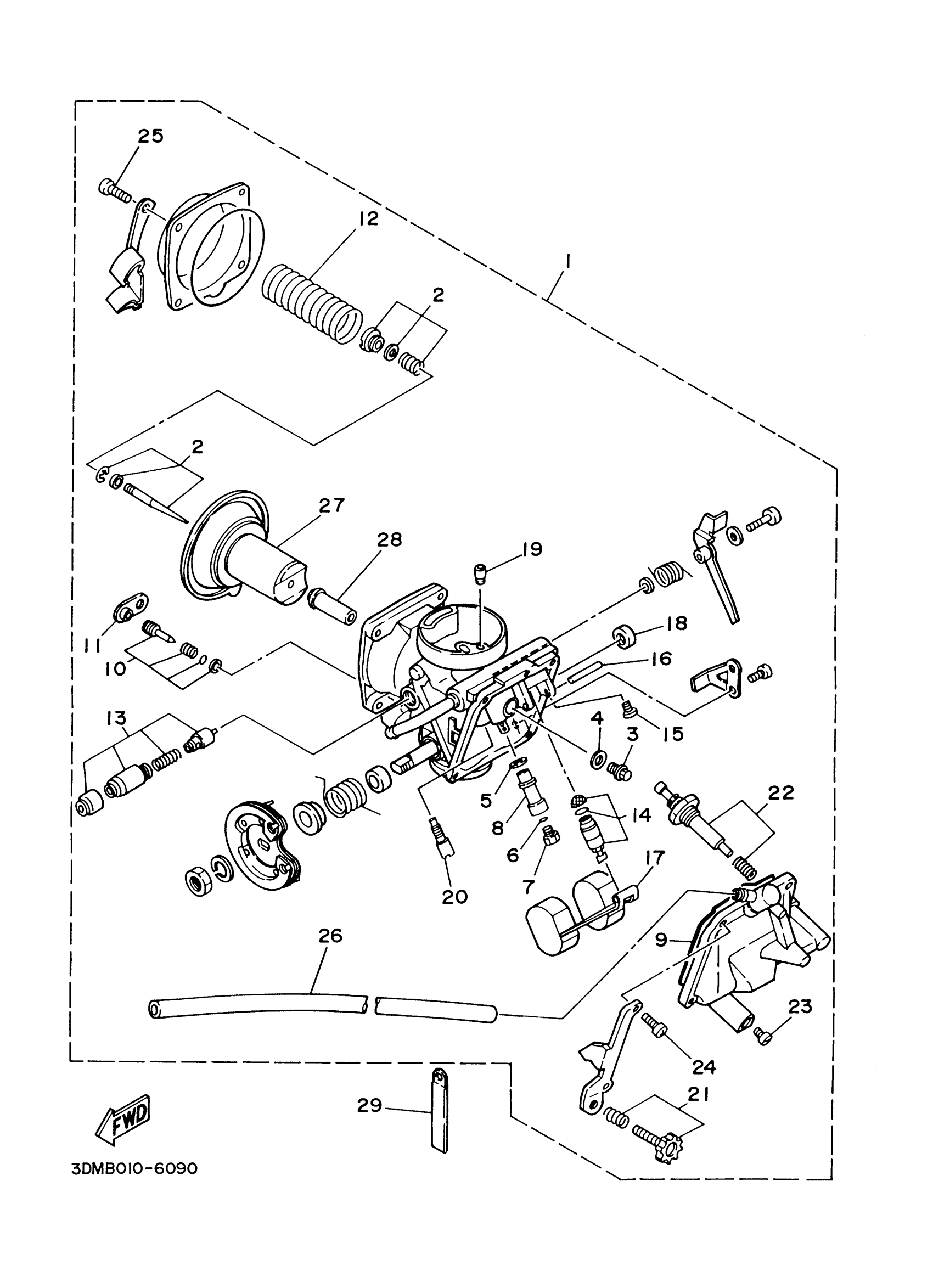

Yamaha XV250S1CB (VSTAR 250 CA) BJPE 2025 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

2UJ-14900-01-00

$1,010.99

2

NEEDLE SET

3BG-1490J-00-00

Unavailable

3

SCREW

1HX-14565-00-00

$20.99

4

WASHER,MAIN JET

137-14153-00-00

$7.99

5

GASKET

1AE-14237-00-00

$7.99

6

O-RING

1AE-14227-00-00

$9.99

7

JET, MAIN (#110)

620-14231-22-A0

$13.49

8

HOLDER

1AE-14261-00-00

$30.99

9

O-RING

1HX-14147-00-00

$22.99

10

PILOT SCREW SET

12R-14105-00-00

$17.49

11

CAP

3F9-14118-00-00

Unavailable

12

SPRING, DIAPHRAGM

1HX-14933-00-00

Unavailable

13

STARTER SET

3DM-1410A-10-00

$92.99

14

NEEDLE VALVE SET

3CF-14107-10-00

$36.99

15

SCREW

1FN-14565-00-00

$7.99

16

PIN, FLOAT

353-14186-00-00

Unavailable

17

FLOAT

1HX-14985-00-00

Unavailable

18

.. SEAL

256-14997-00-00

Unavailable

19

JET, MAIN (#155)

1HX-14231-31-00

Unavailable

20

JET, PILOT (#17.5)

22F-14142-17-00

Unavailable

21

THROTTLE SCREW SET

1HX-14103-00-00

Unavailable

22

ROD SET

3DM-14504-01-00

Unavailable

23

PLUG, DRAIN

12R-14191-00-00

Unavailable

24

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

25

SCREW, PAN HEAD

98511-04012-00

Unavailable

26

HOSE

50H-14987-00-00

Unavailable

27

DIAPHRAGM ASSY

3BG-14940-00-00

Unavailable

28

MAIN NOZZLE(0-0)

3DM-14141-30-00

Unavailable

29

PLATE

3XV-14243-00-00

Unavailable
