Description

Price

1

SHIFT SHAFT ASSY

2UJ-18101-01-00

$41.99

2

COLLAR (3Y1)

90387-12787-00

$11.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

STOPPER LEVER ASSY

3Y1-18140-00-00

$30.99

5

SPRING, TORSION

90508-26434-00

Unavailable

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

SPRING, TORSION (2K7)

90508-32374-00

$7.49

8

STOPPER, SCREW

5VK-18127-00-00

Unavailable

9

SEAL, OIL (30X)

93102-12321-00

$12.49

10

SHIFT PEDAL ASSY

2UJ-18110-00-00

$80.99

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

COVER, DUST

2H9-18154-00-00

$5.49

13

BOLT(3DM)

97024-06020-00

$8.49

14

SHIFT SHAFT ASSY

2UJ-18130-00-00

$75.99

15

COVER, DUST

2H9-18154-00-00

$5.49

16

ROD, SHIFT

2UJ-18115-03-00

Unavailable

17

NUT (2H9)

90170-06228-00

Unavailable

18

NUT

9538R-06700-00

Unavailable

19

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

20

CIRCLIP(10Y)

99009-12400-00

Unavailable

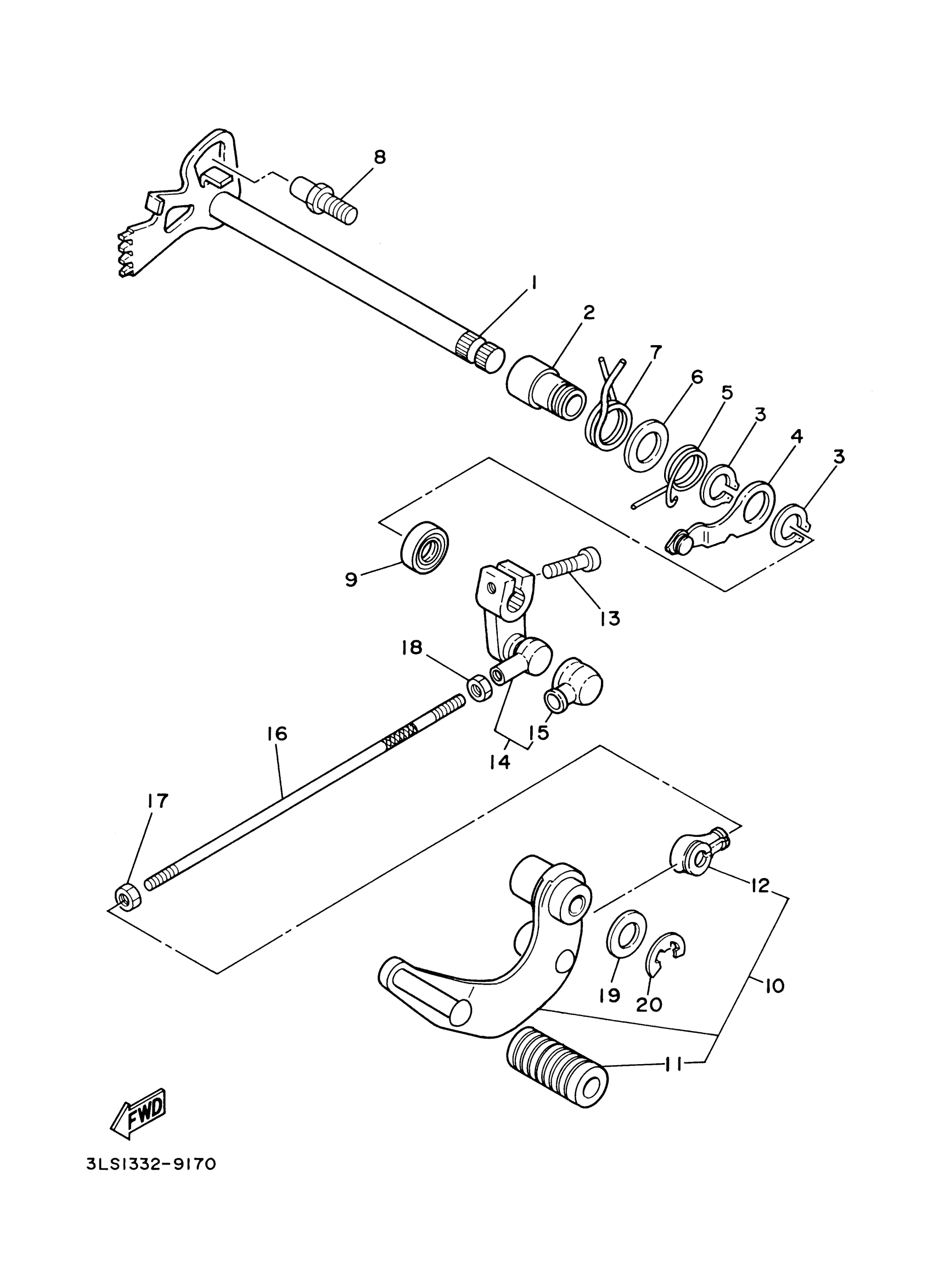

Yamaha XV250RC (VIRAGO 250 CA) 3BGC 2003 SHIFT SHAFT Diagram

SHIFT SHAFT ASSY

COLLAR (3Y1)

CIRCLIP(1EY)

STOPPER LEVER ASSY

SPRING, TORSION

WASHER, PLATE (30X)

SPRING, TORSION (2K7)

STOPPER, SCREW

SEAL, OIL (30X)

SHIFT PEDAL ASSY

COVER, CHANGE PEDAL

COVER, DUST

BOLT(3DM)

SHIFT SHAFT ASSY

COVER, DUST

ROD, SHIFT

NUT (2H9)

NUT

WASHER, PLATE (5K7)

CIRCLIP(10Y)
