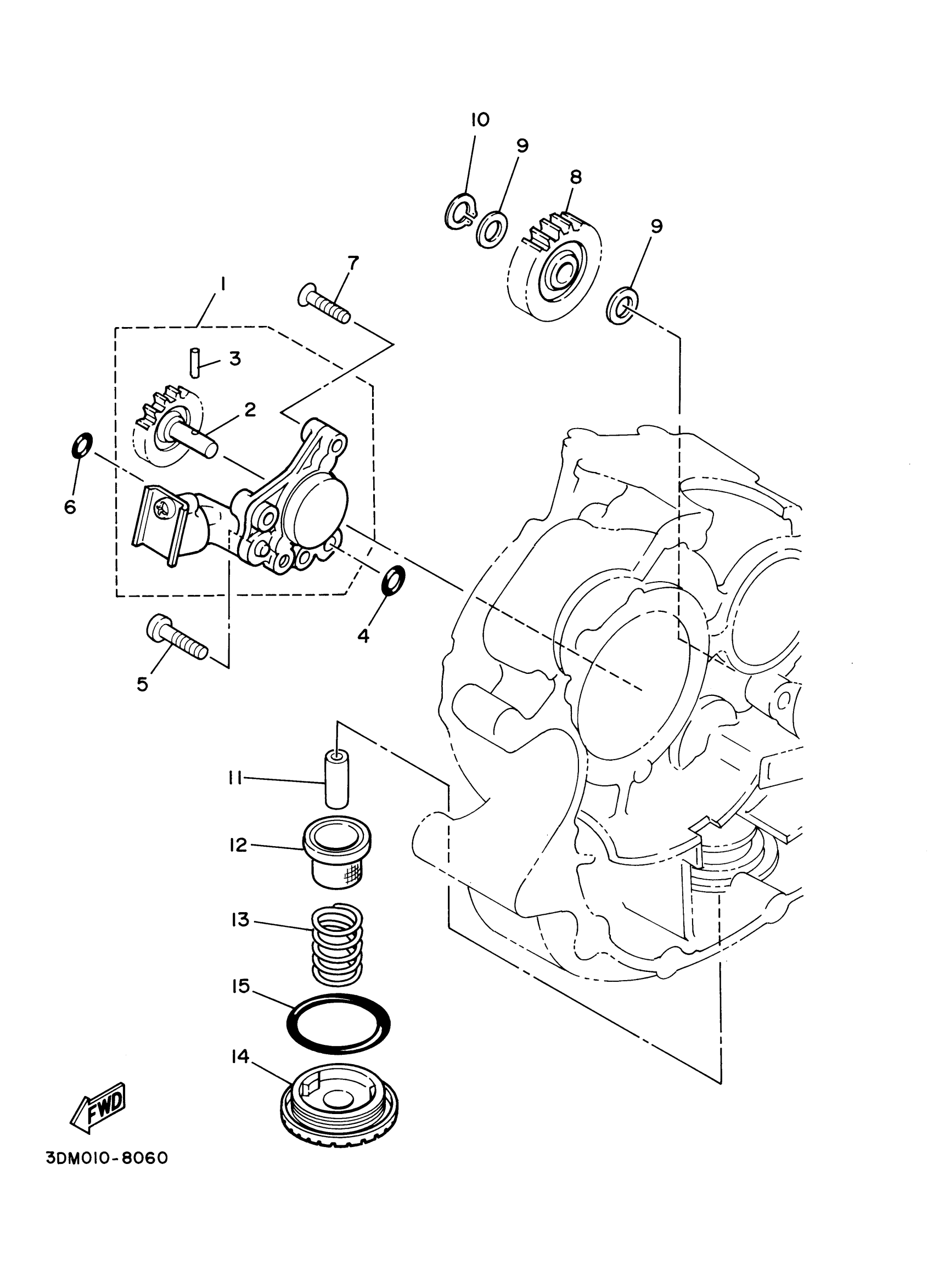

Yamaha XV250RC (VIRAGO 250 CA) 3BGC 2003 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2UJ-13300-10-00

Unavailable

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

$11.99

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

O-RING (611)

93210-10096-00

$3.76

5

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

6

O-RING (371)

93210-06245-00

$5.60

7

SCREW, FLAT

98707-06025-00

$8.49

8

GEAR, OIL PUMP IDLE

2UJ-13341-00-00

$37.99

9

WASHER, PLAIN(735)

90201-10119-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$4.73

11

PIPE, OIL 1

2XK-13416-01-00

Unavailable

12

STRAINER, OIL

51Y-13411-00-00

$37.99

13

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

14

PLUG, DRAIN

4HC-15351-00-00

$18.49

15

O-RING

93210-347A1-00

$7.49
