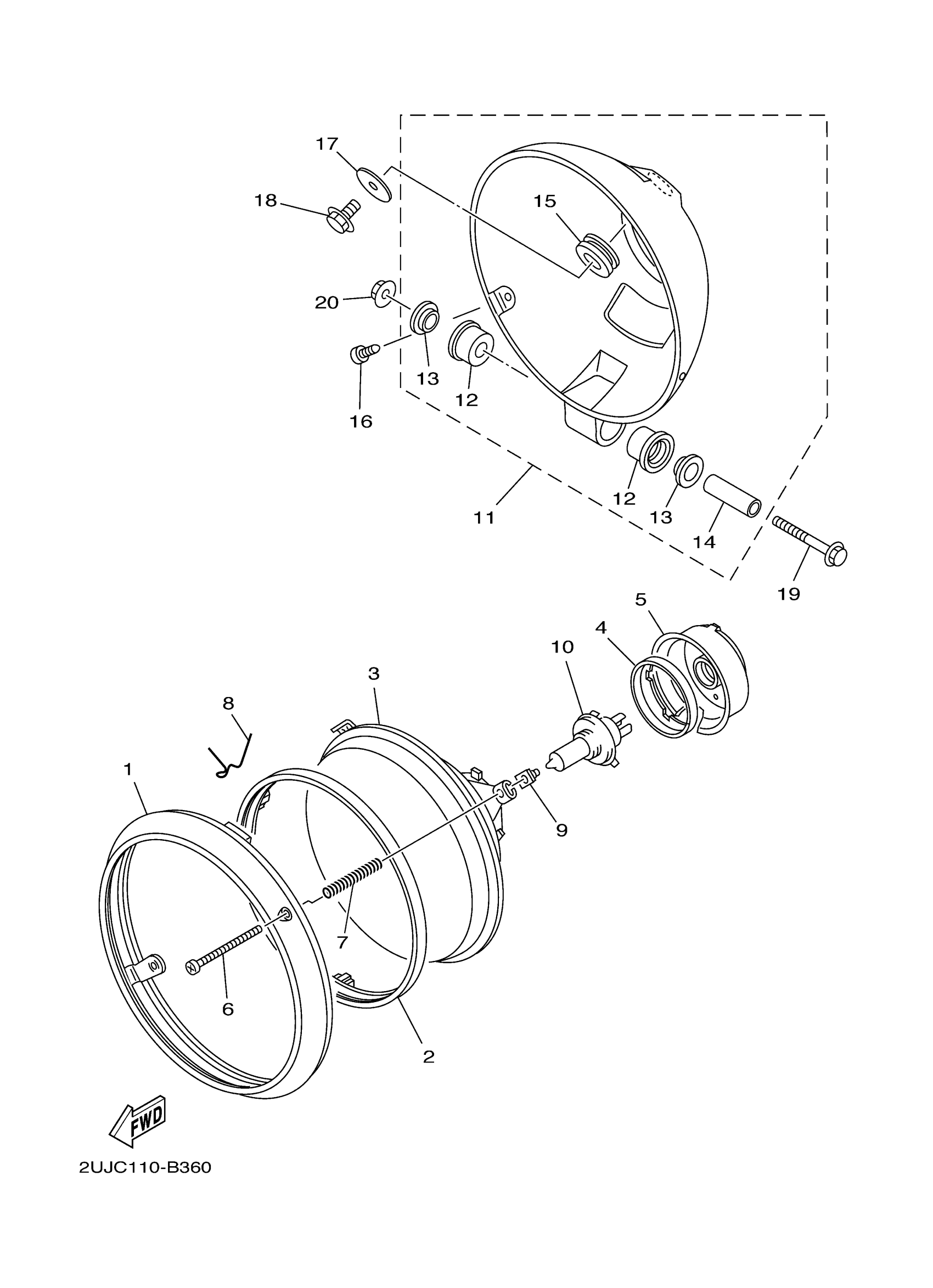

Yamaha XV250RC (VIRAGO 250 CA) 3BGC 2003 HEADLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT

42X-84315-01-00

$122.99

2

RING, RETAINING

5Y3-84395-00-00

Unavailable

3

LENS, HEADLIGHT

42X-84321-A0-00

$121.99

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$30.99

6

SCREW 214841316100

90157-04001-00

$8.49

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

8

SPRING, SET

42X-84124-60-00

$6.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

11

BODY ASSY

42X-84330-01-00

$216.99

12

DAMPER, HEADLIGHT

42X-84345-00-00

$5.49

13

COLLAR, BODY FITTING

1FK-84338-00-00

$2.34

14

COLLAR, BODY FITTING

2UJ-84338-00-00

$2.34

15

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

16

SCREW, PAN HEAD

98507-05014-00

Unavailable

17

WASHER, PLATE

90201-06086-00

Unavailable

18

BOLT, FLANGE

95817-06014-00

Unavailable

19

BOLT, FLANGE(4EB)

95814-06045-00

Unavailable

20

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
