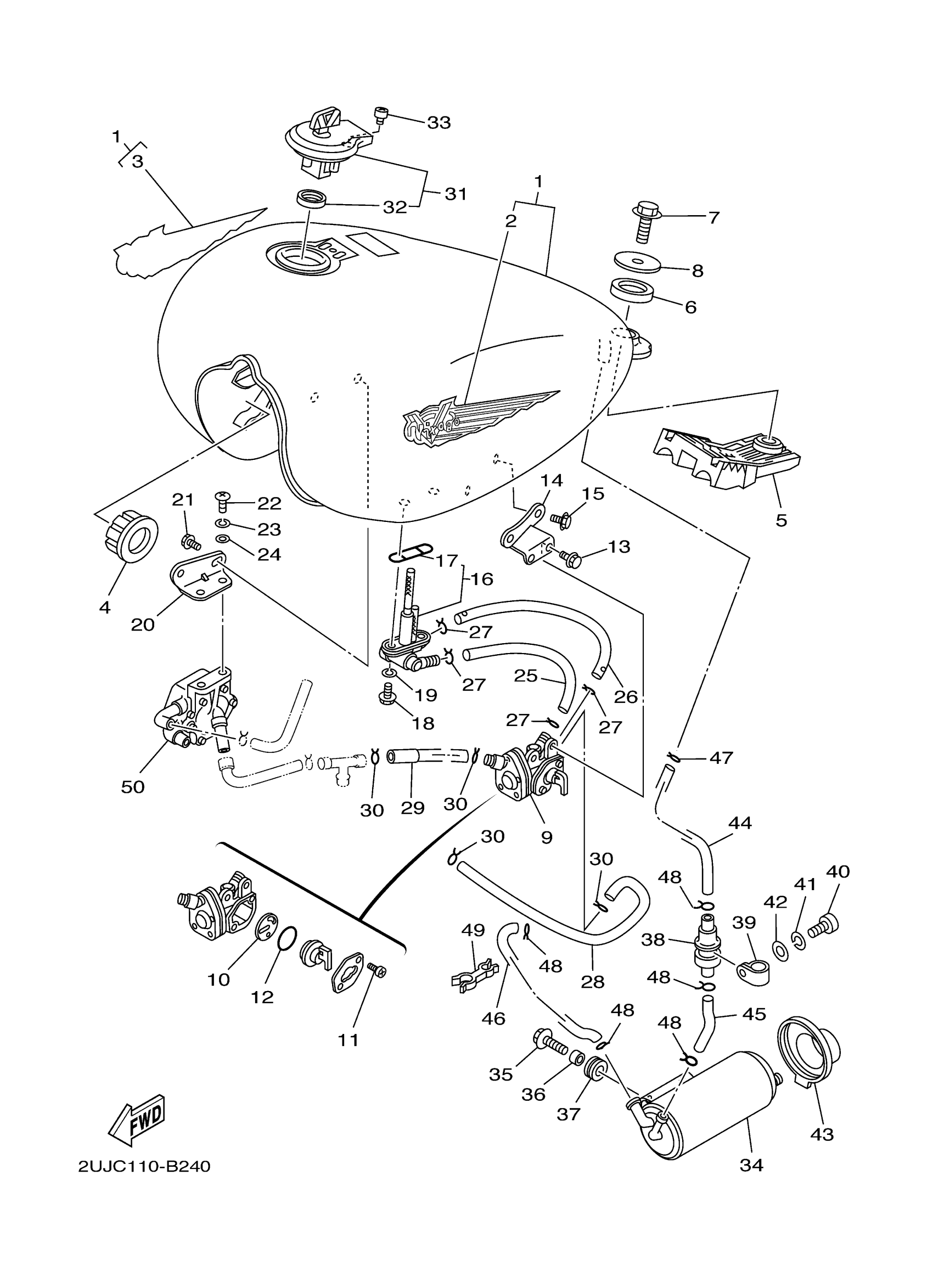

Yamaha XV250RC (VIRAGO 250 CA) 3BGC 2003 FUEL TANK Diagram
#
1
FUEL TANK COMP.
3BG-Y2410-02-05
Unavailable
1
FUEL TANK COMP.
3LS-Y2410-T3-08
Unavailable
2
EMBLEM 1
3LW-24161-20-00
Unavailable
3
EMBLEM 2
3LW-24162-20-00
Unavailable
5
DAMPER, LOCATING 2
2UJ-24182-00-00
Unavailable
14
BRACKET, FUEL COCK
2UJ-24544-01-00
Unavailable
16
FILTER ASSY
2UJ-24560-10-00
Unavailable
17
O-RING
4X8-24512-00-00
Unavailable
18
SCREW 256241430000
90149-06011-00
Unavailable
19
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
20
BRACKET, FUEL PUMP
2UJ-24491-01-00
Unavailable
22
SCREW, PAN
98517-06012-00
Unavailable
23
WASHER, SPRING
92907-06100-00
Unavailable
24
WASHER(6TA)
92907-06600-00
Unavailable
25
HOSE (L400)
90445-116K9-00
Unavailable
26
HOSE (L400)
90445-116K9-00
Unavailable
27
CLIP
90467-100A1-00
Unavailable
28
PIPE 2
2UJ-24312-01-00
Unavailable
29
PIPE 3
2UJ-24313-00-00
Unavailable
30
CLIP
90467-100A1-00
Unavailable
31
CAP ASSY
20K-24602-10-00
Unavailable
31
CAP ASSY
4X7-24602-10-00
Unavailable
32
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
33
BOLT, SOCKET
91317-05010-00
Unavailable
34
CANISTER ASSY
3BG-24170-00-00
Unavailable
35
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
36
COLLAR
90837-0600V-00
Unavailable
37
GROMMET (16R)
90480-14329-00
Unavailable
38
ROLL OVER VALVE ASSY
4WM-24180-00-00
Unavailable
39
CLAMP
90464-15014-00
Unavailable
40
SCREW, PAN
98517-05012-00
Unavailable
41
WASHER(3SX)
92907-05100-00
Unavailable
42
WASHER(1RW)
92907-05600-00
Unavailable
43
COVER, CANISTER
2JU-2419E-00-00
Unavailable
44
PIPE 10
3BG-24321-02-00
Unavailable
45
PIPE 11
3BG-24322-01-00
Unavailable
46
PIPE 12
3BG-24323-00-00
Unavailable
47
CLIP
90467-090A2-00
Unavailable
48
CLIP
90467-100A1-00
Unavailable
49
CLAMP(3BG)
90464-16119-00
Unavailable
50
FUEL PUMP ASSY
3DM-13910-01-00
Unavailable
