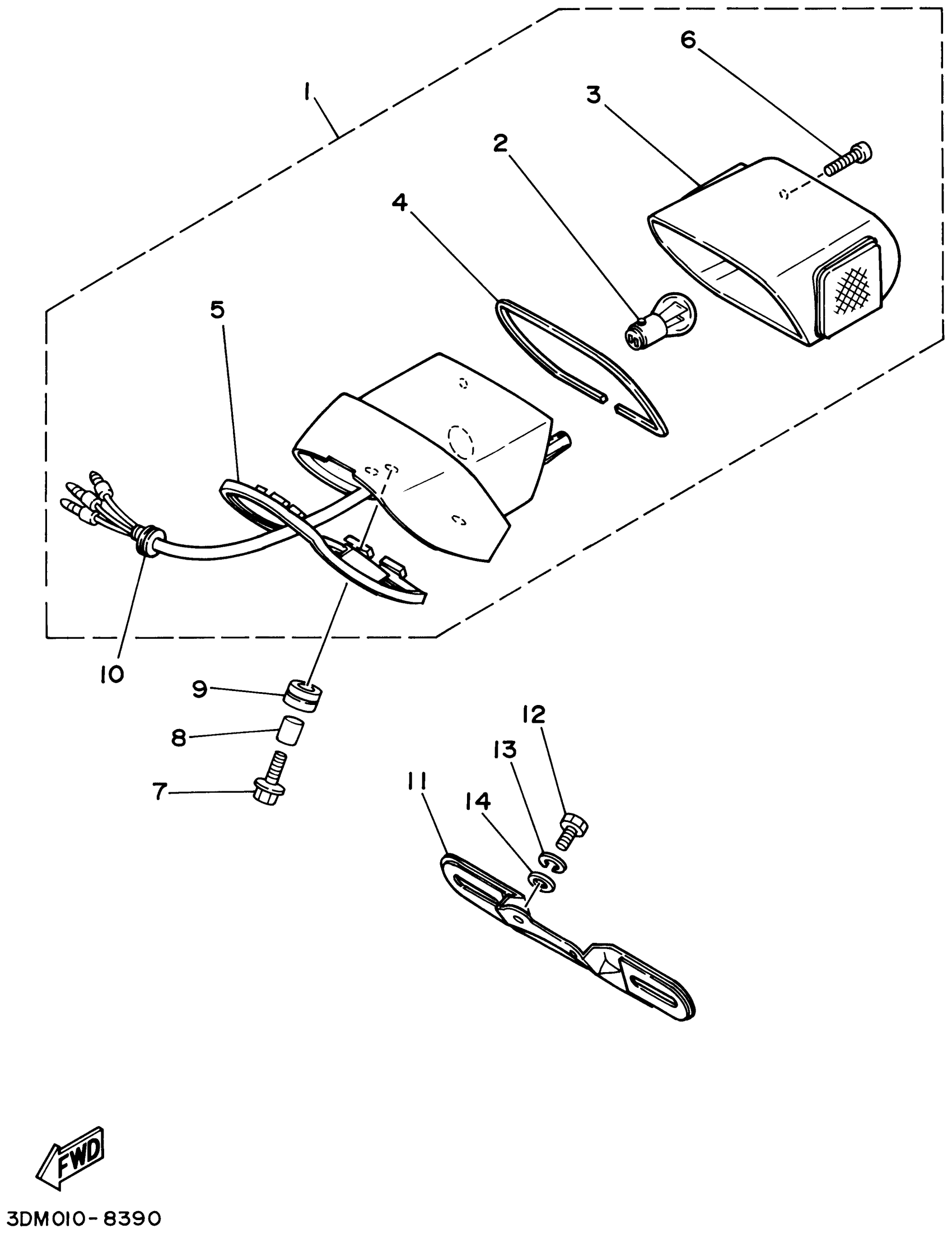

Yamaha XV250PC (VIRAGO 250 CA) 3BGB 2002 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

2UJ-84700-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, TAILLIGHT

2UJ-84721-00-00

$16.16

4

SEAL

1VJ-14462-00-00

$15.00

5

GASKET, TAILLIGHT

2UJ-84704-00-00

Unavailable

6

SCREW, TAPPING(7G6)

97780-40525-00

$5.61

7

BOLT, WITH WASHER

90119-06130-00

Unavailable

8

COLLAR(2UJ)

90387-061V1-00

$6.03

9

GROMET (3X3)

90480-14229-00

$5.75

10

GROMMET(2UJ)

90480-16501-00

$5.29

11

BRACKET, LICENCE

2UJ-84751-00-00

$31.50

12

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

13

WASHER, SPRING

92995-06100-00

$2.95

14

WASHER, PLAIN (646)

92990-06600-00

$1.84
