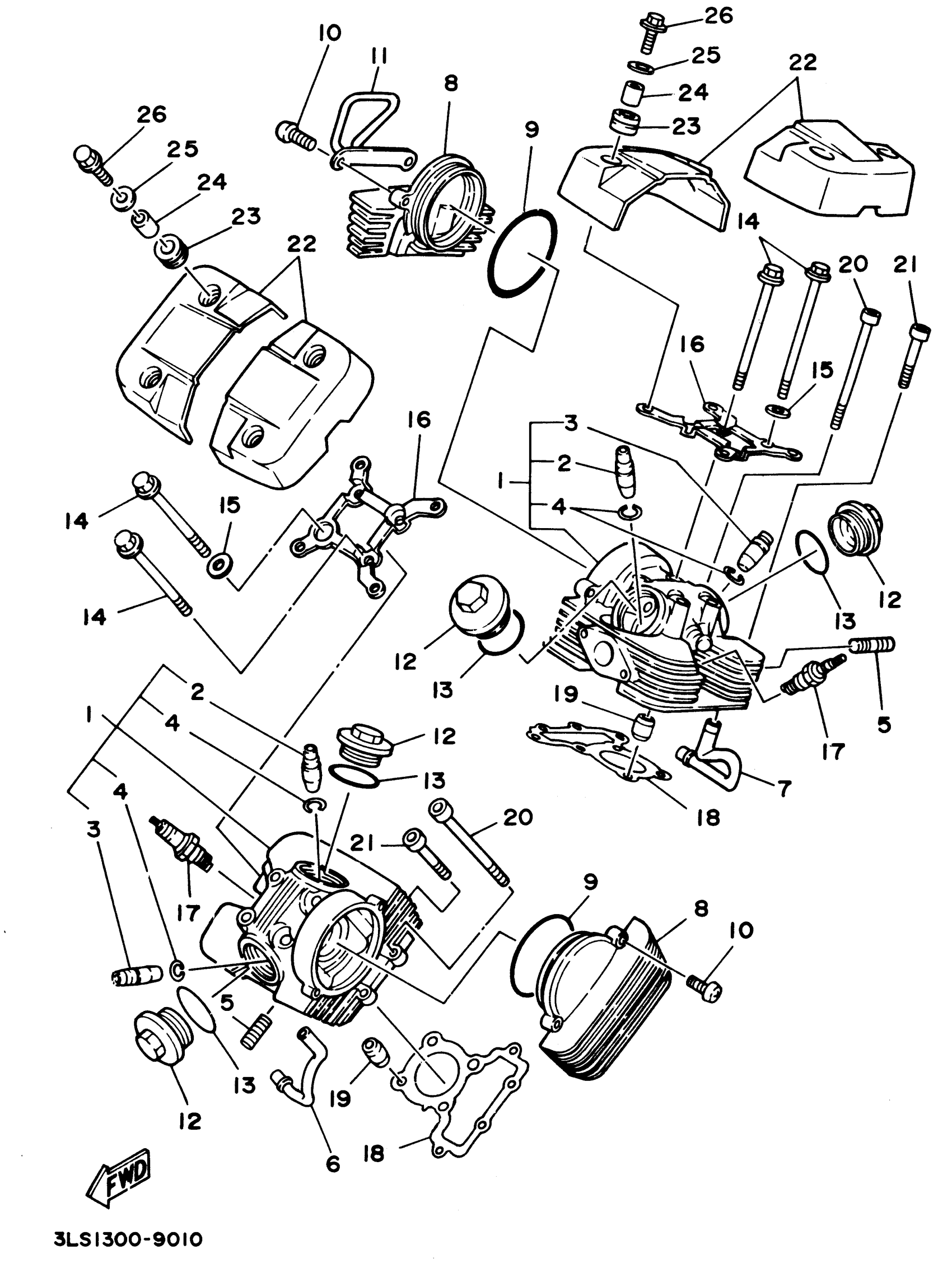

Yamaha XV250PC (VIRAGO 250 CA) 3BGB 2002 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2UJ-11102-01-00

Unavailable

1

CYLINDER HEAD ASSY

3BG-11102-01-00

Unavailable

2

GUIDE, INTAKE VALVE

2UJ-11133-10-00

$42.23

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$71.87

4

CIRCLIP (22F)

93440-10109-00

$5.29

5

BOLT, STUD (1J7)

90116-06228-00

$2.45

6

PIPE 1

3BG-14871-00-00

Unavailable

7

PIPE 2

3BG-14872-00-00

Unavailable

8

COVER, CYLINDER HEAD SIDE 1

2UJ-11185-01-00

Unavailable

9

O-RING (14X)

93210-78544-00

$9.93

10

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

11

BRACKET, CYLINDER HEAD COVER

2UJ-11152-00-00

Unavailable

12

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

13

O-RING(55X)

93210-44704-00

$5.34

14

BOLT, FLANGE

90105-08181-00

$6.34

15

WASHER, PLATE

90201-080L7-00

Unavailable

16

BRACKET, CYLINDER HEAD COVER 2

2UJ-11142-01-00

Unavailable

17

PLUG, SPARK (NGK C6HSA)

NGK-C6H5A-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

2UJ-11181-01-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

20

BOLT, SOCKET

91317-06110-00

Unavailable

21

BOLT,SOCKET

91317-06040-00

Unavailable

22

COVER, CYLINDER HEAD SIDE 2

3DM-11186-01-00

Unavailable

23

GROMMET (462)

90480-13018-00

Unavailable

24

COLLAR

90387-06043-00

Unavailable

25

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

26

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
