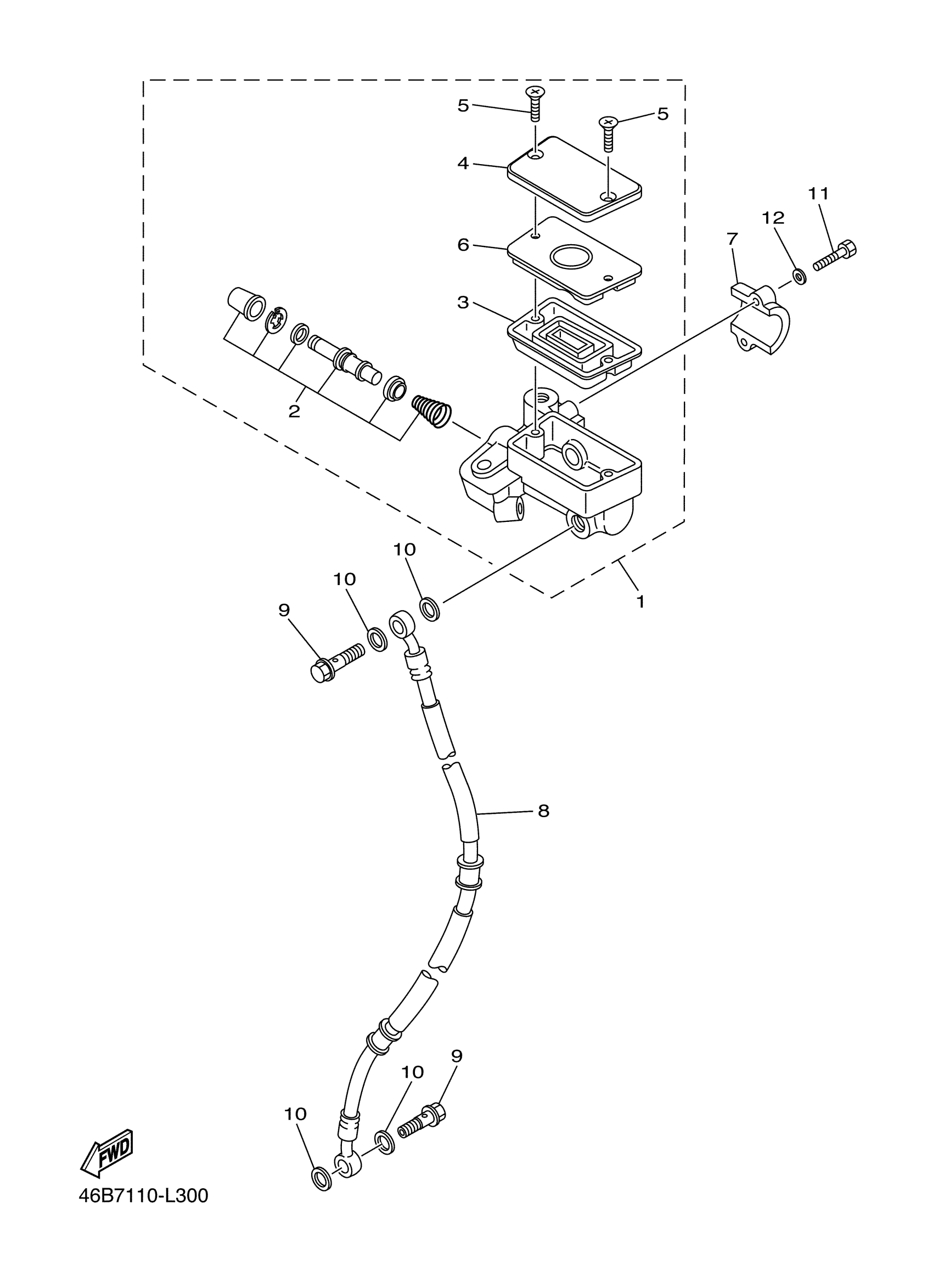

Yamaha XV250P1CB (V STAR 250 CA) BJP8 2023 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

19D-25870-00-00

Unavailable

2

CYLINDER KIT, MASTER

23L-W0041-00-00

$116.44

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

19D-25852-00-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$1.34

6

BUSH,DIAPHRAGM

19D-25855-00-00

Unavailable

7

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

8

HOSE, BRAKE 1

46B-25872-00-00

Unavailable

9

BOLT, UNION

90401-10020-00

$7.72

10

GASKET

90430-10005-00

$6.57

11

BOLT, HEXAGON

97017-06025-00

$2.78

12

WASHER(6TA)

92907-06600-00

$0.73
