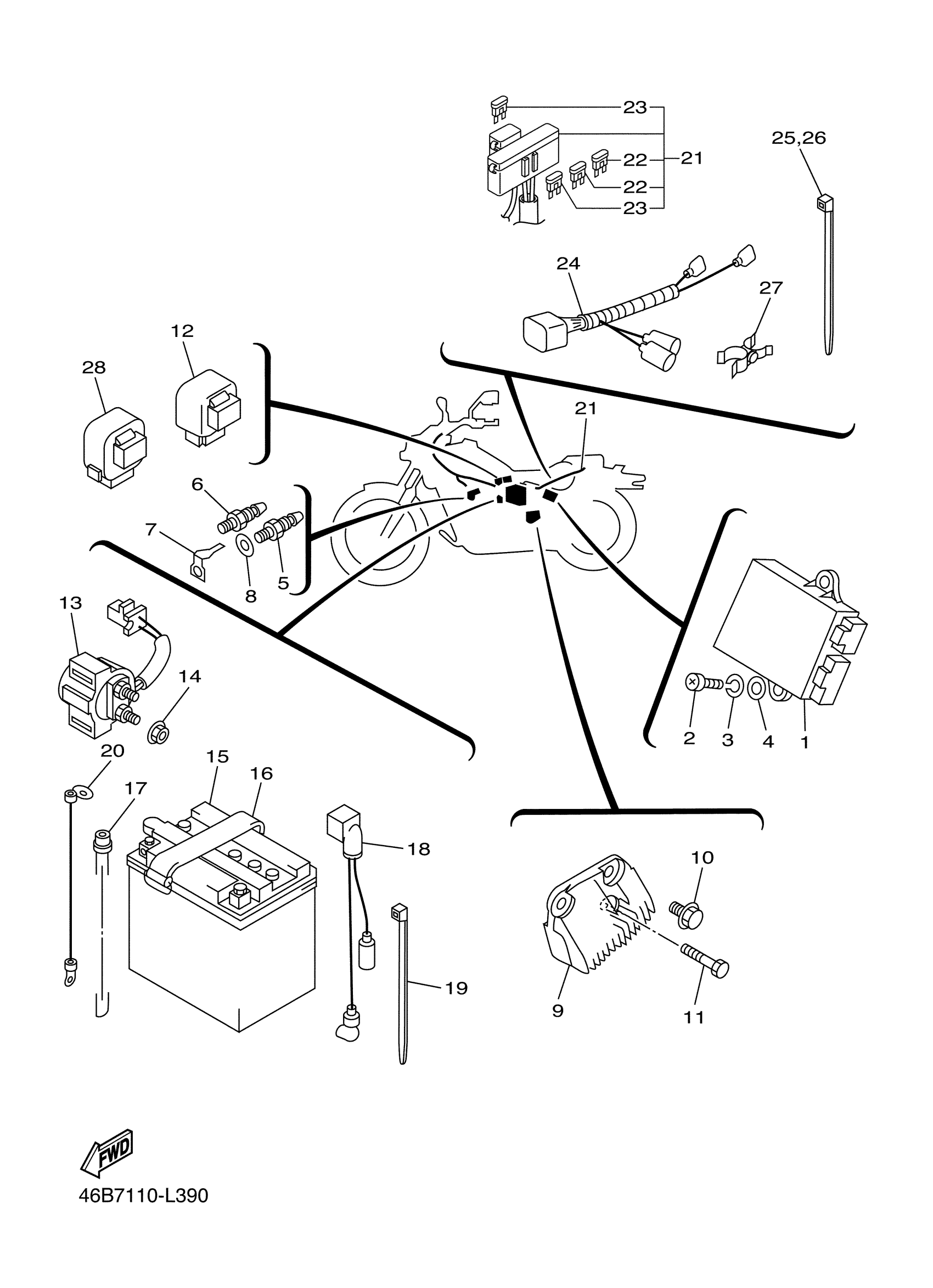

Yamaha XV250P1CB (V STAR 250 CA) BJP8 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

2UJ-82305-00-00

$379.99

2

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06600-00

$2.72

5

HEATER ASSY

5FU-83790-00-00

Unavailable

6

HEATER ASSY

5FU-83790-20-00

$49.99

7

TERMINAL 1

5FU-82103-00-00

$7.99

8

WASHER, PLATE

90201-08016-00

$8.49

9

RECTIFIER & REGULATOR ASSY

3DM-81960-01-00

$255.99

10

BOLT, WITH WASHER

90119-06242-00

$7.49

11

BOLT, HEXAGON

97017-06030-00

$3.61

12

RELAY ASSY

2UJ-81950-02-00

$65.99

13

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

14

NUT, FLANGE(4MV)

95707-06500-00

$1.23

15

BATTERY ASSY

3DN-82110-10-00

Unavailable

16

BAND, BATTERY

118-82131-00-00

Unavailable

17

HOSE

90445-08719-00

Unavailable

18

WIRE, PLUS LEAD

2UJ-82115-01-00

Unavailable

19

CLAMP

90464-16061-00

Unavailable

20

WIRE, MINUS LEAD

2UJ-82116-01-00

Unavailable

21

WIRE HARNESS ASSY

46B-82590-00-00

Unavailable

22

. FUSE (10A)

67F-82151-40-00

Unavailable

23

FUSE

5JJ-82151-20-00

Unavailable

24

WIRE, SUB LEAD

2UJ-82509-01-00

Unavailable

25

CLAMP

90464-16061-00

Unavailable

26

CLAMP

90464-16061-00

Unavailable

27

CLAMP(3BG)

90464-16119-00

Unavailable

28

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable
