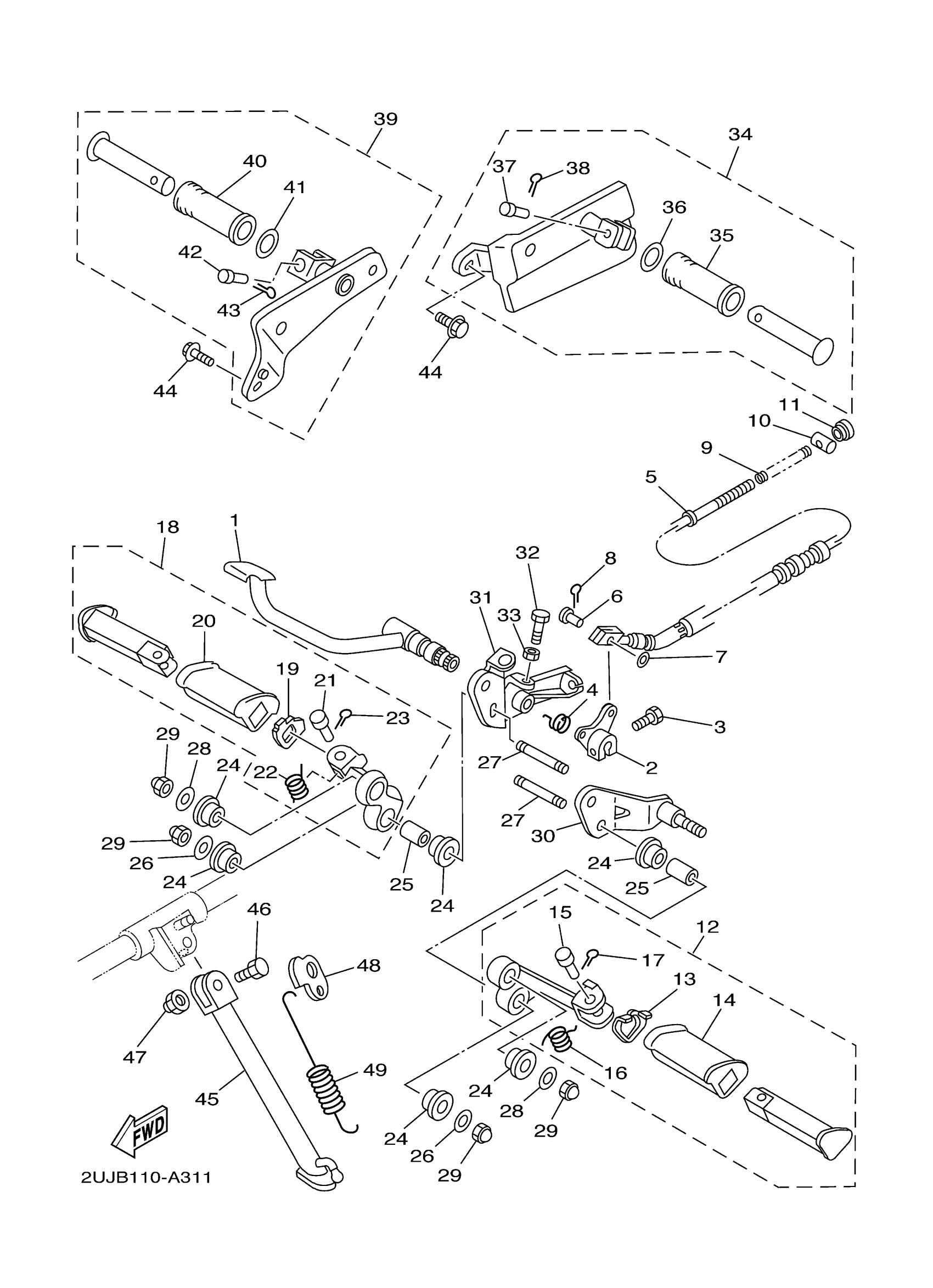

Yamaha XV250N1C (V STAR 250 CA) BJP5 2022 STAND & FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2UJ-27211-01-00

$112.99

2

LEVER

2UJ-27262-02-00

$28.99

3

BOLT(3DM)

97024-06020-00

$8.49

4

SPRING, BRAKE PEDAL

2UJ-27216-00-00

Unavailable

5

CABLE, BRAKE

2UJ-26351-00-00

$126.99

6

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

7

WASHER(6TA)

92907-06200-00

$8.49

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT (25K)

90179-06411-00

$8.49

12

FRONT FOOTREST ASSY (LEFT)

2UJ-27410-00-00

Unavailable

13

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

14

COVER, FOOTREST

4X7-27413-00-00

$33.99

15

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

16

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

18

FRONT FOOTREST ASSY (RIGHT)

2UJ-27420-00-00

Unavailable

19

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

20

COVER, FOOTREST

4X7-27413-00-00

$33.99

21

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

DAMPER, FOOTREST

2UJ-27414-00-00

Unavailable

25

COLLAR(2UJ)

90387-100V6-00

Unavailable

26

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

27

BOLT, STUD(3DM)

90116-10519-00

Unavailable

28

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

29

NUT, CROWN (650)

95380-10800-00

Unavailable

30

BRACKET 4

2UJ-2741L-00-33

Unavailable

31

BRACKET 5

2UJ-2742L-00-33

Unavailable

32

SCREW 341272170000

90153-06008-00

Unavailable

33

NUT(JN5)

95317-06700-00

Unavailable

34

REAR FOOTREST ASSY 1

2UJ-27430-00-35

Unavailable

35

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

36

WASHER, PLATE (888)

90201-20279-00

Unavailable

37

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

38

PIN, COTTER (648)

91490-20015-00

$2.20

39

REAR FOOTREST ASSY 2

2UJ-27440-00-35

Unavailable

40

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

41

WASHER, PLATE (888)

90201-20279-00

Unavailable

42

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

43

PIN, COTTER (648)

91490-20015-00

$2.20

44

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

45

STAND, SIDE

2UJ-27311-01-00

Unavailable

46

BOLT(2GH)

90109-104E6-00

Unavailable

47

NUT, U

90185-10037-00

Unavailable

48

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

49

SPRING, SIDE STAND

2UJ-27316-00-00

Unavailable
