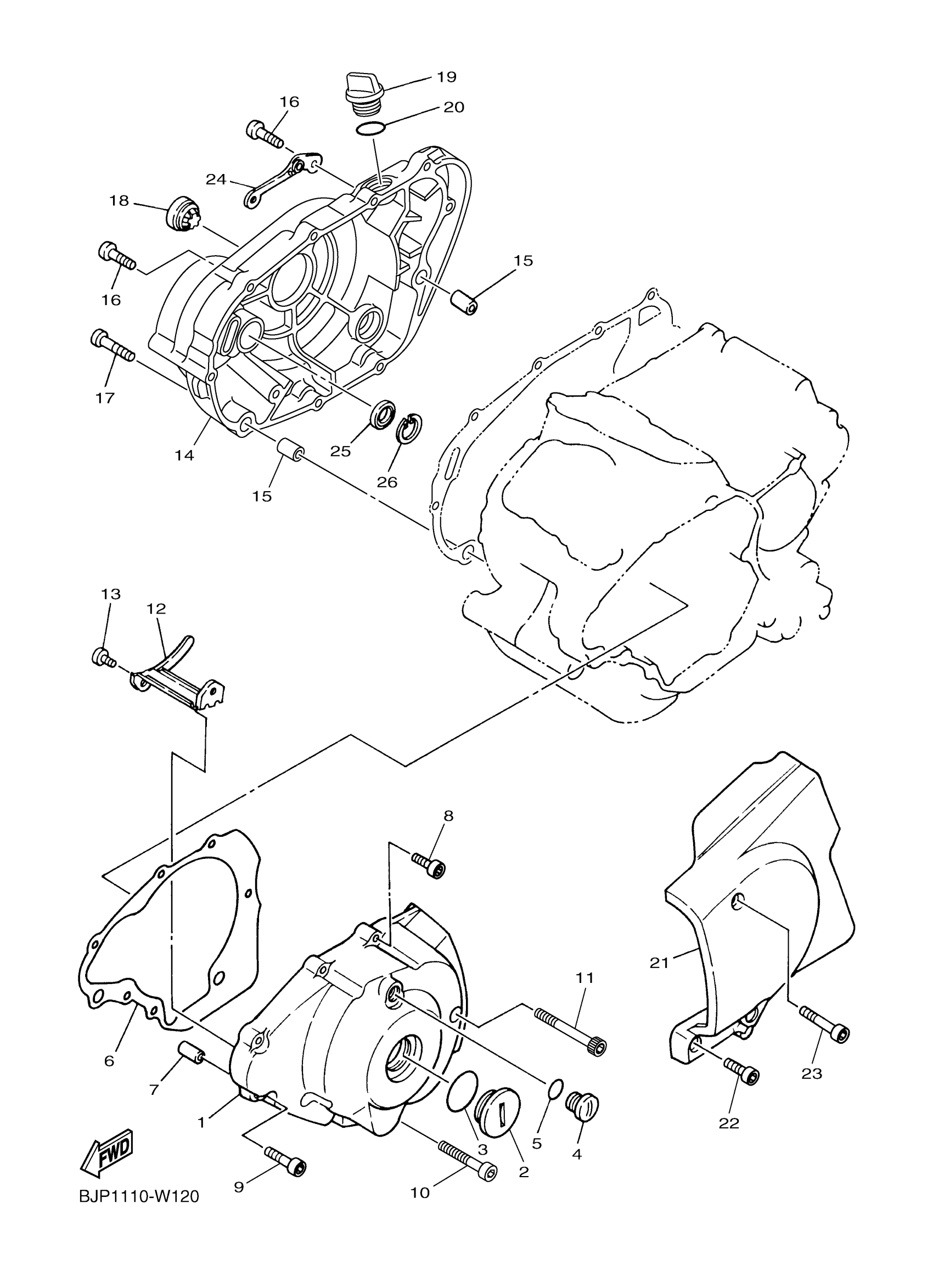

Yamaha XV250N1C (V STAR 250 CA) BJP5 2022 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2UJ-15411-01-00

Unavailable

2

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

$15.49

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

4RF-15451-01-00

$15.49

7

PIN, DOWEL

99530-12016-00

$4.89

8

BOLT,SOCKET HEAD

91314-06025-00

$8.49

9

BOLT, SOCKET

91314-06035-00

$8.49

10

BOLT, SOCKET

91314-06035-00

$8.49

11

BOLT, SOCKET

91314-06070-00

$8.49

12

CLAMP(3DM)

90465-06322-00

$11.49

13

BOLT,SOCKET

91317-06010-00

$9.49

14

COVER, CRANKCASE 2

2UJ-15421-00-00

Unavailable

15

PIN, DOWEL

99530-12016-00

$4.89

16

BOLT,SOCKET HEAD

91314-06025-00

$8.49

17

BOLT, SOCKET

91314-06035-00

$8.49

18

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

19

PLUG, OIL

3Y1-15363-10-00

Unavailable

20

O-RING (646)

93210-19123-00

Unavailable

21

COVER, CRANKCASE 3

2UJ-15431-02-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06025-00

$8.49

23

BOLT,SOCKET

91314-06050-00

Unavailable

24

HOLDER, CLUTCH CABLE

2UJ-15441-00-00

Unavailable

25

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

26

CIRCLIP

99009-25500-00

Unavailable
